SATA to IDE Adapter – 2.5" & 3.5" HDD Converter, 40-Pin

SATA to IDE Adapter – Universal HDD Converter for 2.5" & 3.5" Drives

Bridge the gap between modern SATA drives and legacy IDE systems with this versatile multi-variant SATA to IDE adapter kit from kebidumei. Whether you need to connect a laptop hard drive to a desktop PC, repurpose an old IDE system, or transfer data between generations of storage devices, this compact converter delivers a plug-and-play solution — no drivers needed. CE certified. Made in Mainland China.

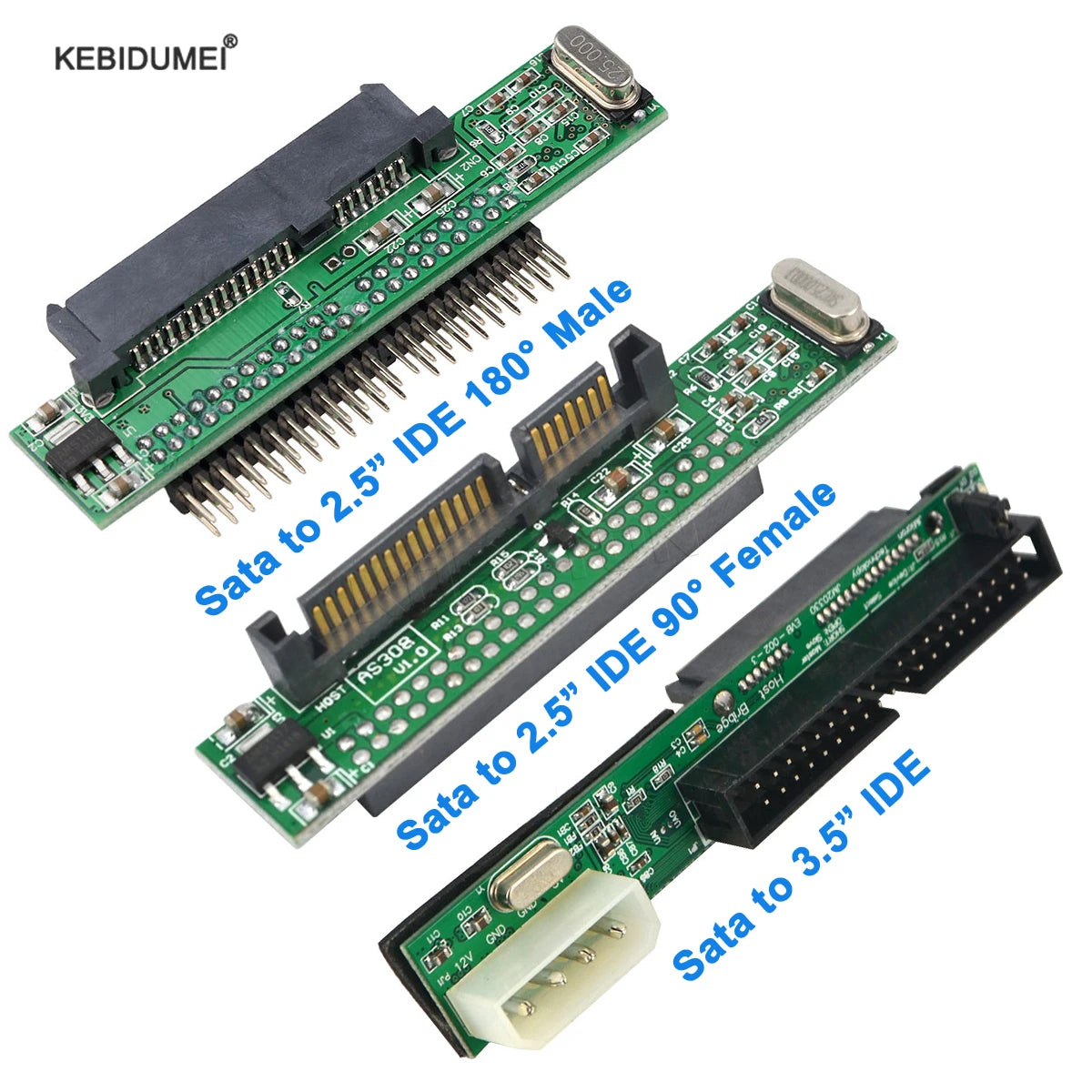

Available Variants

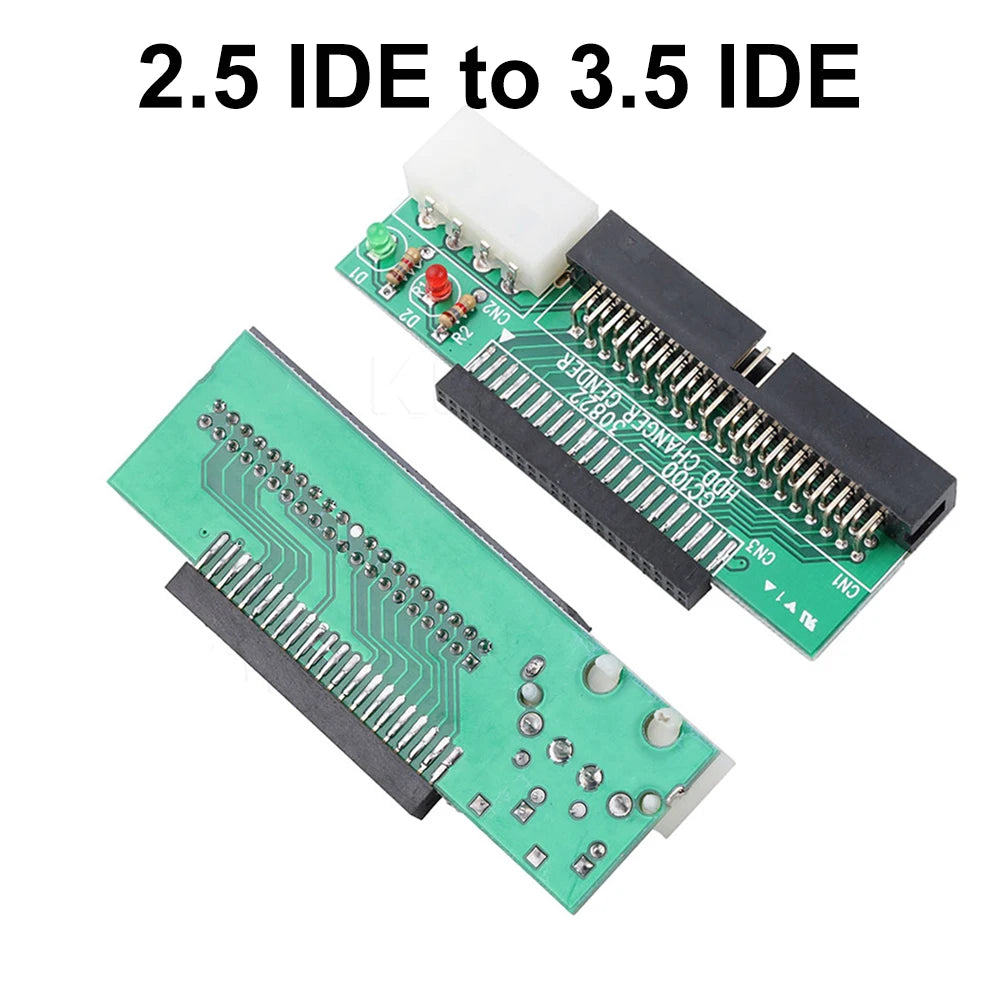

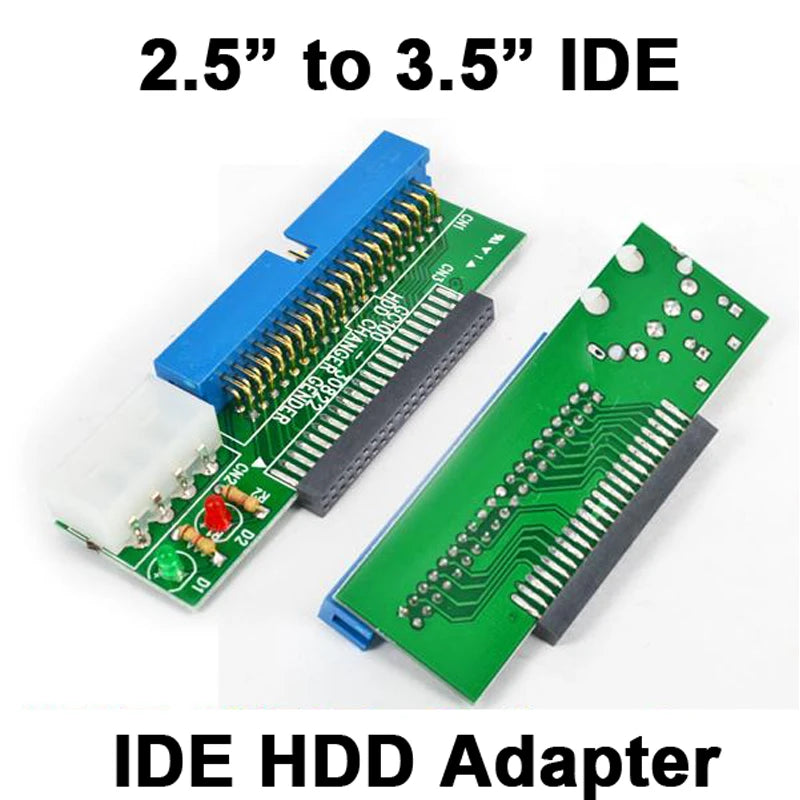

2.5" to 3.5" IDE Converter

This converter lets you connect a 2.5" laptop IDE hard drive (44-pin mini connector) directly to a desktop 3.5" IDE interface (40-pin). Ideal for laptop drive backups or direct data transfers. Compatible with 2.5" IDE drives from major brands including Acer, Toshiba, Dell, IBM, Fujitsu, Sony, and COMPAQ.

• Connects 2.5" laptop HDD (44-pin) to desktop IDE (40-pin) interface
• No driver required — detected as a standard IDE drive
• Perfect for data backup and cross-system transfers
• Easy plug-and-play installation

Package Includes: 1 × 2.5" to 3.5" IDE Hard Drive Converter

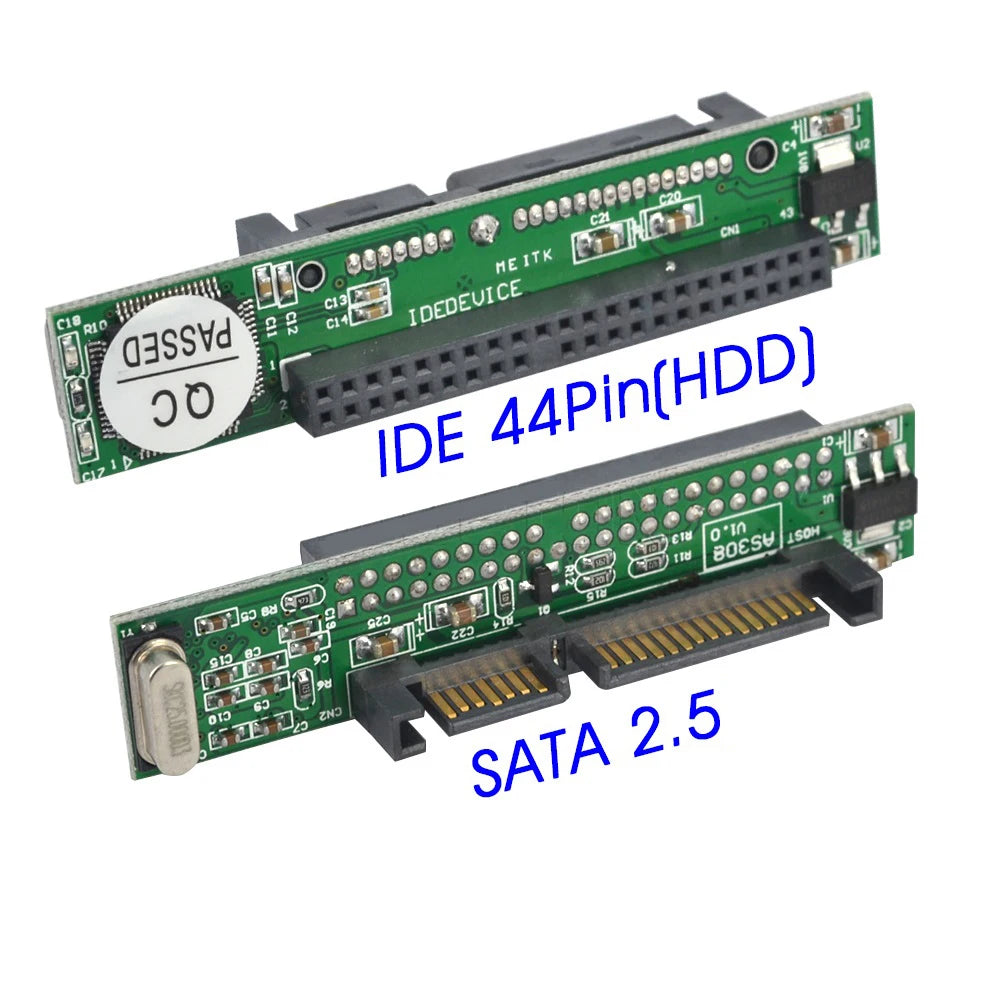

SATA to 2.5" IDE – 90° Female Adapter

Converts SATA devices (HDD, CD-ROM, DVD-ROM, DVD-RAM, DVD-RW, CD-RW) into a 2.5" IDE device. The 90° angle design saves space while maintaining a solid, direct connection — no cables required. Supports SATA data transfer rates up to 1.5 Gb/s (150 MB/s).

• SATA 7+15P female connector → 44P IDE male connector (90° angle)
• Compliant with Serial ATA Specification Revision 1.0
• PCB size: 69mm × 14mm
• Compatible with DOS, Windows 98/98SE, Me, 2000, 2003, XP, Vista, Windows 7, and Linux
• No driver required

Package Includes: 1 × SATA to 2.5" IDE 90° Female Adapter

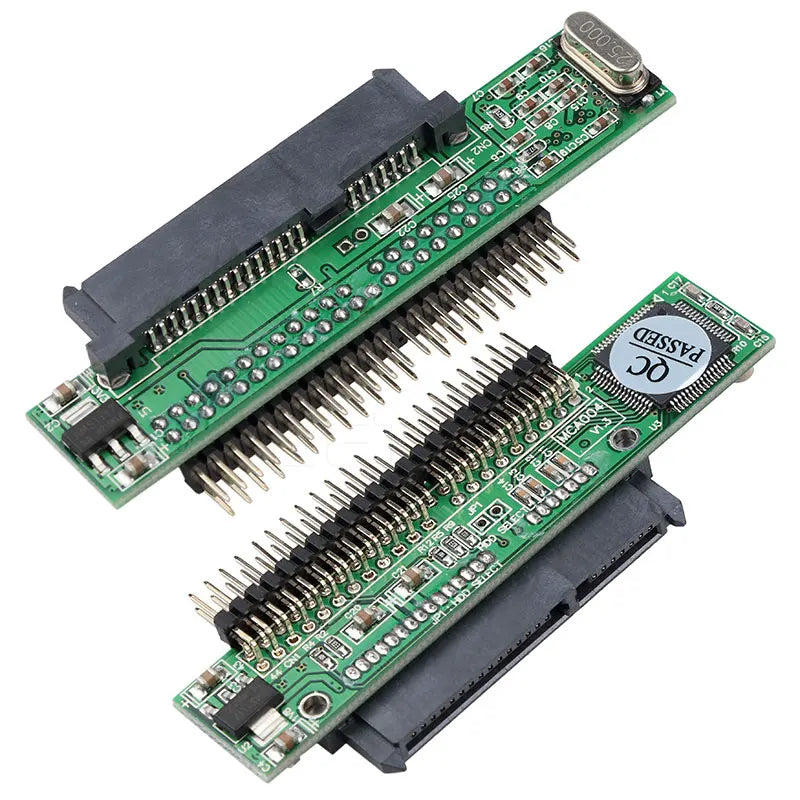

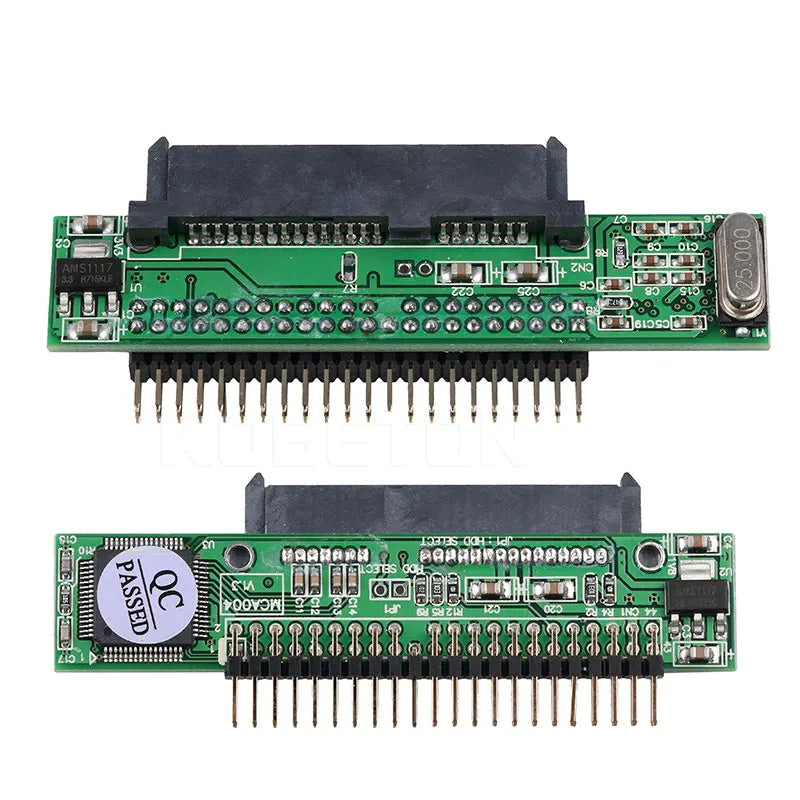

SATA to 2.5" IDE – 180° Male Adapter

A straight (180°) version of the SATA female to 2.5" IDE male adapter. Super compact design with zero wasted space — connects directly to the SATA hard drive without cables. Supports up to 1.5 Gb/s data transfer rate.

• SATA 7+15P female connector → 44P 2.5" IDE male connector (straight/180°)
• Compliant with Serial ATA Specification Revision 1.0
• PCB size: 69mm × 14mm
• Compatible with DOS, Windows 98/98SE, Me, 2000, 2003, XP, Vista, Windows 7, and Linux
• Note: Hot-swap not supported

Package Includes: 1 × 2.5" SATA Female to 2.5" IDE Male Adapter

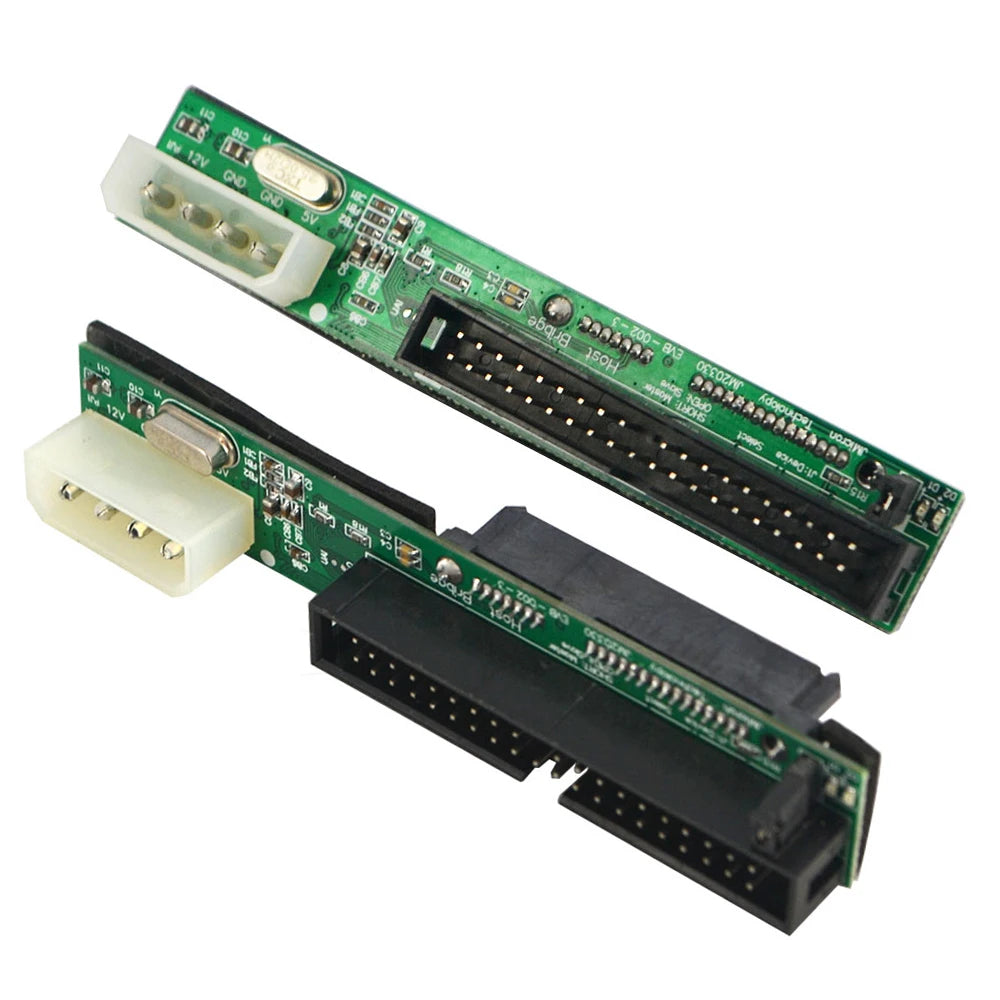

SATA to 3.5" IDE Adapter

Converts all SATA devices into a standard 3.5" IDE device. Connects a 7+15P SATA hard drive directly to a 40-pin IDE connector — no cables needed. Supports up to 1.5 Gb/s. Compact PCB footprint fits into tight desktop enclosures with ease.

• SATA 7+15P female connector → 3.5" 40P IDE male connector
• Supports HDD, CD-ROM, CD-RW, DVD-ROM, DVD-RAM, DVD-RW conversions
• Compliant with Serial ATA Specification Revision 1.0
• PCB size: 69mm × 14mm
• Compatible with DOS, Windows 98/98SE, Me, 2000, 2003, XP, Vista, Windows 7, and Linux
• Note: Hot-swap not supported. HDD not included.

Package Includes: 1 × 2.5" SATA Female to 3.5" IDE Male Adapter

General Specifications

• Brand: kebidumei
• Certification: CE
• Transfer Rate: Up to 1.5 Gb/s (150 MB/s)
• Supports: ATA 133 / ATA 100
• Assembly Required: No
• High-Concern Chemicals: None
• Origin: Made in Mainland China

You May Also Like

• 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
• 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
• 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What types of devices does this SATA to IDE adapter support?

A: This SATA to IDE adapter supports a wide range of storage devices including HDD, CD-ROM, CD-RW, DVD-ROM, DVD-RAM, and DVD-RW drives. It is compatible with both 2.5" laptop drives and 3.5" desktop IDE interfaces depending on the variant you choose.

Q: Do I need to install any drivers to use this IDE adapter?

A: No driver installation is required. This adapter is fully plug-and-play. Simply connect it to your SATA device and IDE interface, and your operating system (Windows, DOS, or Linux) will automatically detect the drive as a standard IDE device.

Q: Does this adapter support hot-swapping?

A: Hot-swap is not supported on the SATA to 2.5" IDE 180° and SATA to 3.5" IDE variants. Always power down your system before connecting or disconnecting the adapter to avoid data loss or hardware damage.

Q: What is the maximum data transfer rate of this SATA to IDE converter?

A: This converter supports Serial ATA data transfer rates of up to 1.5 Gb/s (approximately 150 MB/s), compliant with Serial ATA Specification Revision 1.0. It also supports ATA 133 and ATA 100 standards.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
