SD to IDE 44-Pin Adapter – SDHC/SDXC Laptop HDD Converter
SD to IDE 44-Pin Adapter – SDHC/SDXC Laptop HDD Converter
OULLX SD to IDE 44-Pin Adapter – Use an SD Card as a Laptop Hard Drive
Breathe new life into older laptops and legacy systems with the OULLX SD to IDE 44-Pin Adapter. This compact conversion card lets you plug any standard SDHC or SDXC memory card directly into a 2.5" IDE (44-pin) hard drive port — turning your SD card into a fully functional storage device or even a bootable drive for your operating system.
Made in Mainland China.
Key Features
- Plug-and-Play Simplicity: No drivers required — just insert your SD card, connect the IDE cable to your laptop's HDD port, and power on.
- True-IDE Mode: Operates in true-IDE mode with DMA-33 / Ultra DMA transfer support for reliable, fast data access.
- SD 2.0 Compatible: Supports SDHC and SDXC cards up to 128GB maximum capacity.

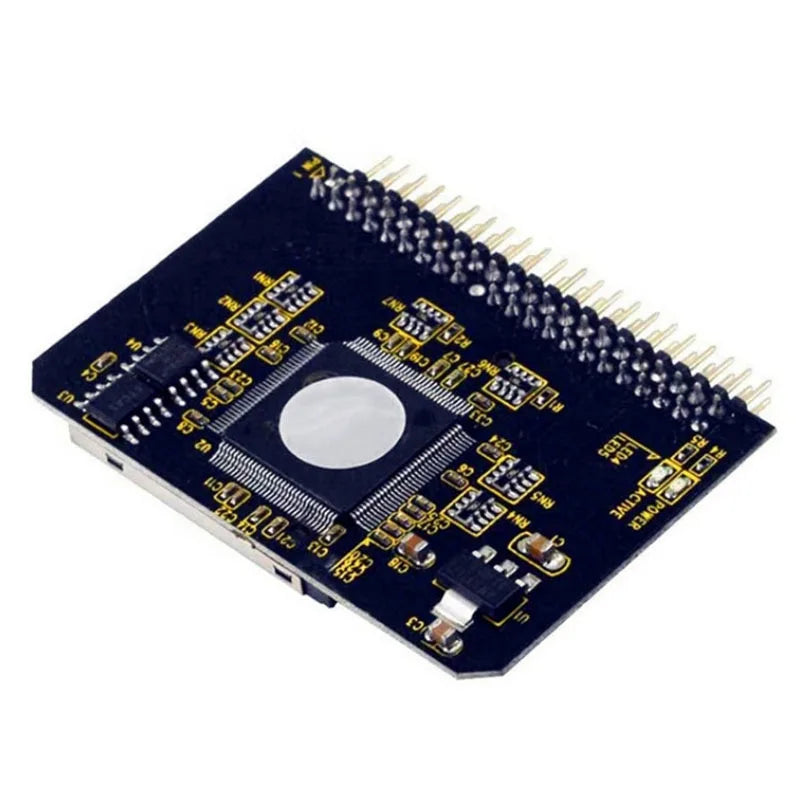

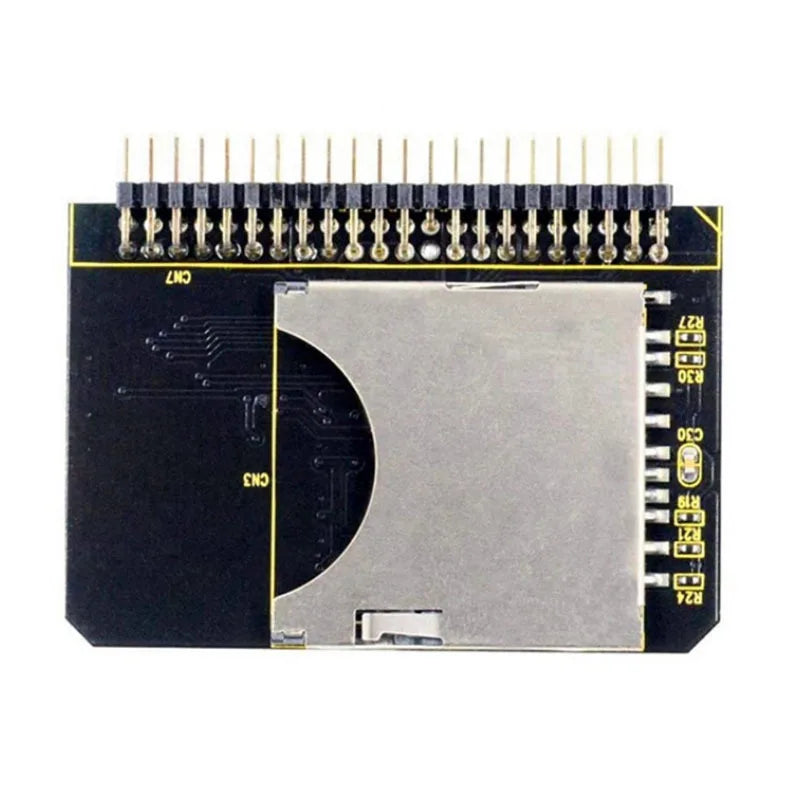

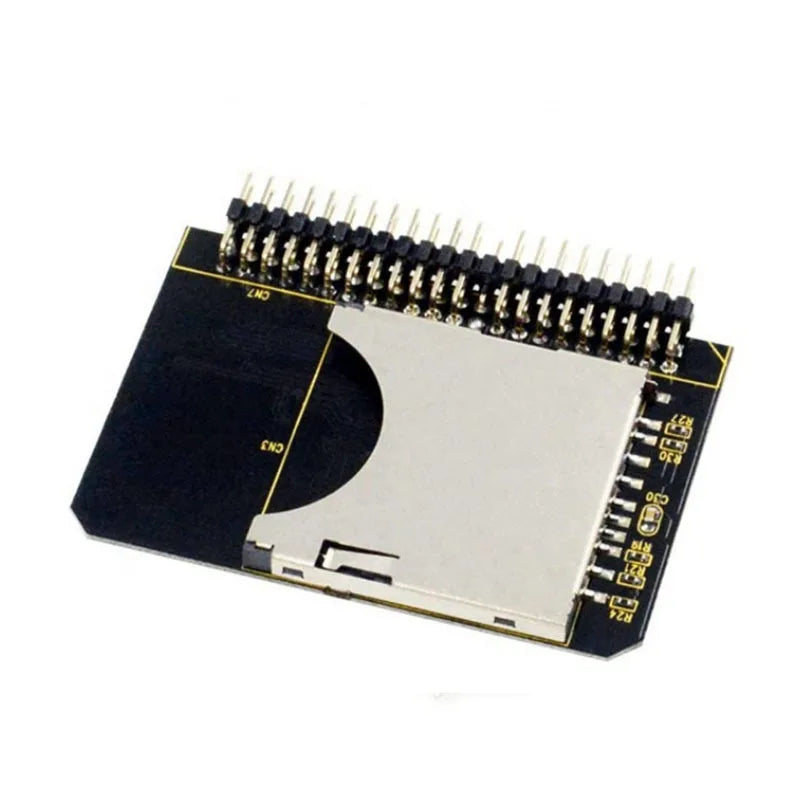

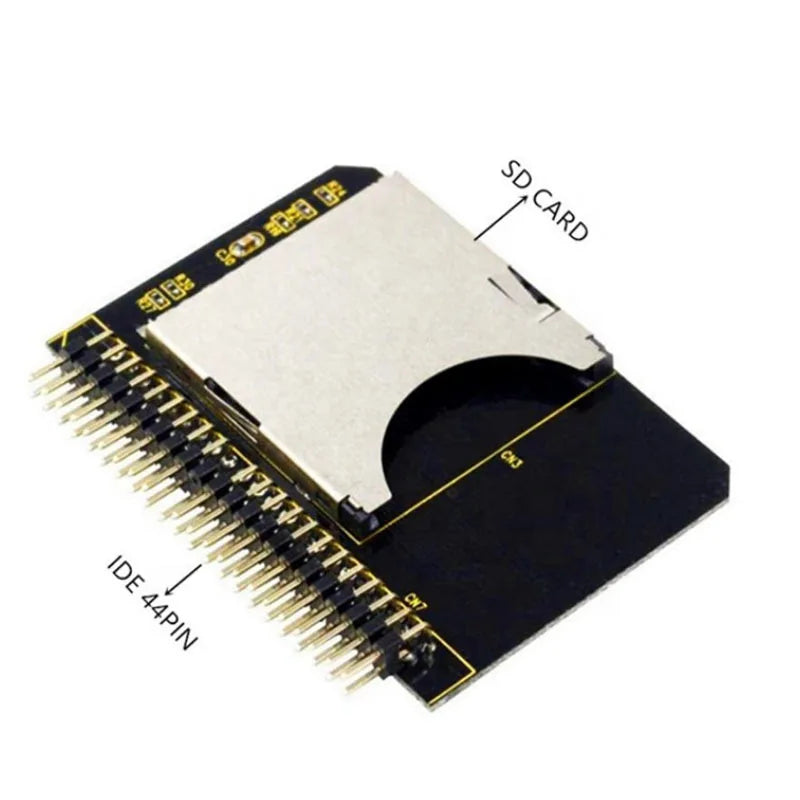

- Dual Master Control IC: Features a 44-pin / 2.0mm male IDE port and one SD card slot on the reverse side, powered by two master control ICs for stable performance.
- Bootable Drive Support: SD card can function as a start device, capable of running full operating systems and applications.
- Broad OS Compatibility: Works with DOS, Windows 98SE, ME, 2000, XP, Vista, Mac, and Linux.
- Compact Design: Small form factor fits neatly in the 2.5" drive bay — no screws or assembly required.
Usage Guide
- Insert your SD card into the slot on the back of the adapter.
- Connect the IDE 44-pin cable to your laptop's HDD port.
- Power on your system — the card is recognised automatically, no additional drivers needed.
Recommended SD Card Sizes
- Router use: 1GB SD card is sufficient.
- Windows 98 / ME / XP: 2GB or larger SD card recommended.
- High-speed performance: Use a high-speed rated SD card for best results.

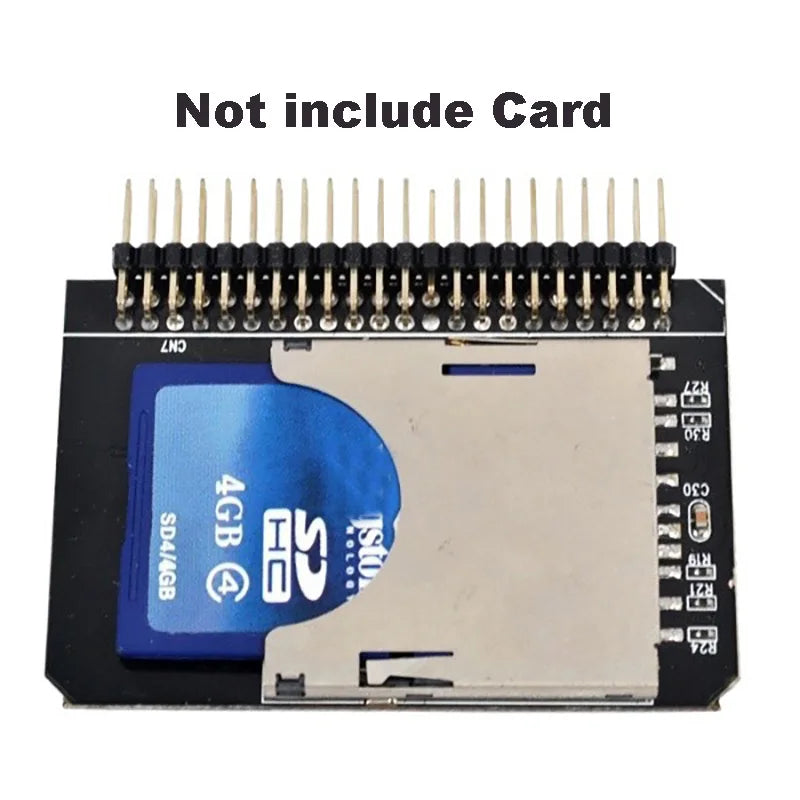

Note: SD card is not included. Adapter only.
Specifications
| Interface | IDE 44-pin (2.0mm male) |
| Card Slot | 1× SD (SDHC / SDXC) |
| SD Standard | Version 2.0 |
| Transfer Mode | DMA-33 / Ultra DMA |
| Max Card Capacity | 128GB |
| OS Support | DOS, NT4, Win 98SE, ME, 2000, XP, Vista, Mac, Linux |
| Assembly Required | No |
| Country of Origin | Mainland China |
You May Also Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Will this SD to IDE 44-pin adapter work with my old laptop?
A: Yes — if your laptop uses a 2.5-inch IDE (44-pin) hard drive interface, this adapter will fit directly into the HDD bay. It supports a wide range of operating systems including Windows 98SE, ME, 2000, XP, Vista, Mac, and Linux, making it ideal for older machines.
Q: What is the maximum SD card size supported by this IDE adapter?
A: The OULLX SD to IDE 44-pin adapter supports SDHC and SDXC memory cards up to a maximum capacity of 128GB. For best performance, we recommend using a high-speed Class 10 or UHS-I rated SD card.
Q: Can I boot an operating system from the SD card using this adapter?
A: Absolutely. The adapter supports true-IDE mode, which means your SD card can be used as a bootable start device — allowing you to install and run full operating systems such as Windows XP or Linux directly from the card.
Q: Do I need to install drivers to use this adapter?
A: No drivers are required. Simply insert your SD card into the adapter slot, connect the IDE cable to your laptop's HDD port, and power on. The system will automatically detect and use the SD card as a storage device.
