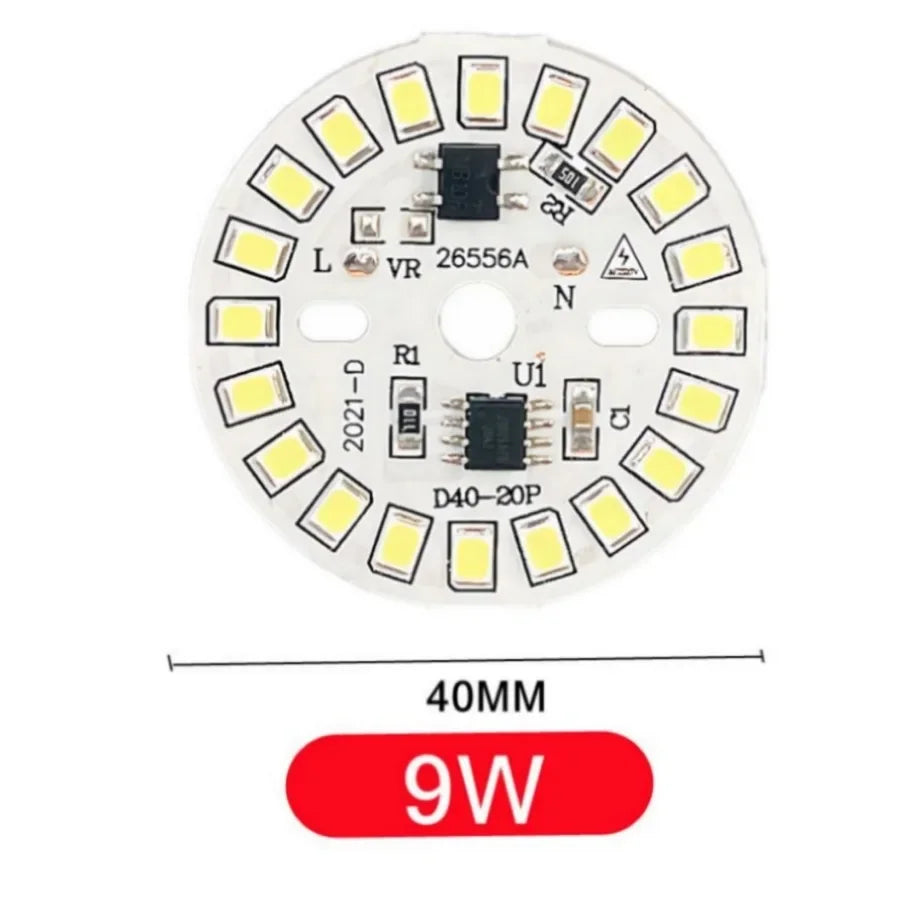

SMD2835 Circular LED Lamp Chip Module – 3W to 15W | AC 220V–240V
Upgrade your downlights, spotlights, and bulb fittings with this high-efficiency SMD2835 Circular LED Lamp Chip Module. Designed for AC 220V–240V mains operation, this compact patch-style light source plate delivers brilliant cold white illumination with outstanding energy savings and an ultra-long service life of over 50,000 hours. Available in 3W, 5W, 7W, 9W, 12W, and 15W variants to suit a wide range of residential and commercial lighting applications.
Made in Mainland China.
Key Specifications

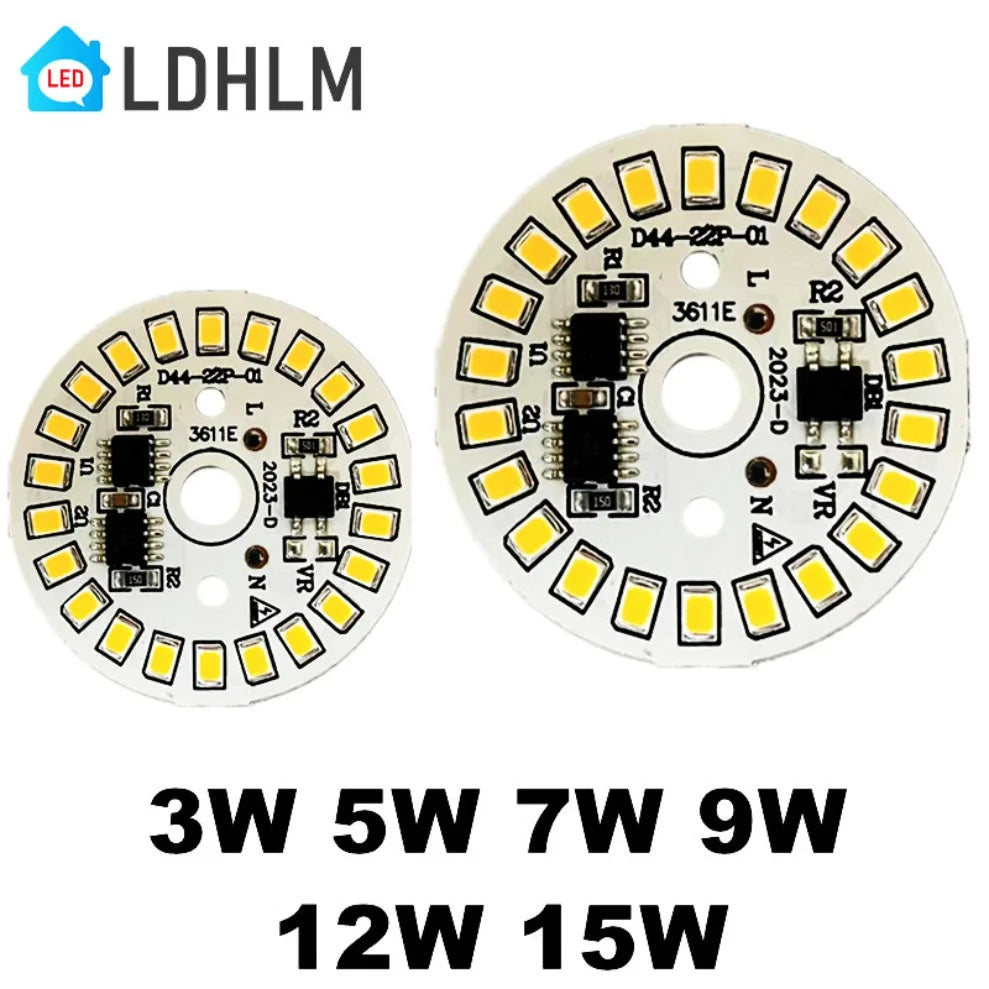

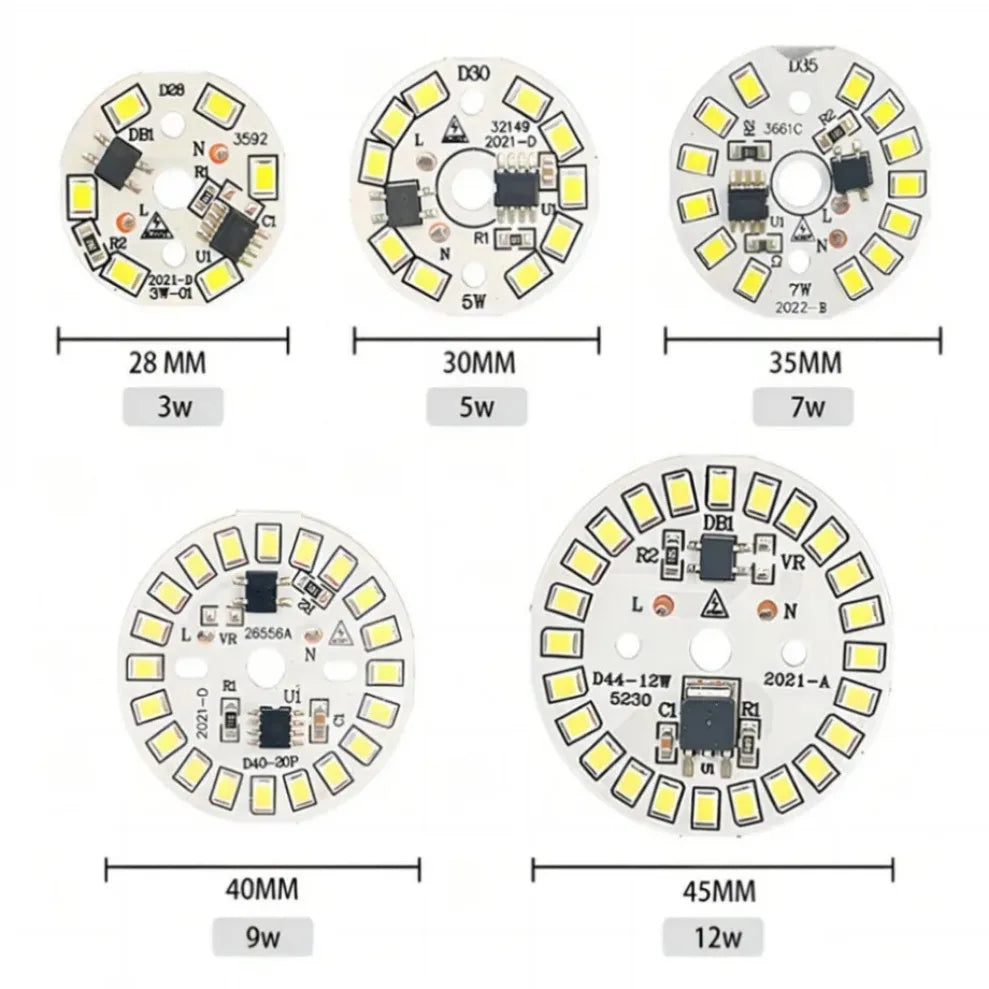

- Power Options: 3W / 5W / 7W / 9W / 12W / 15W

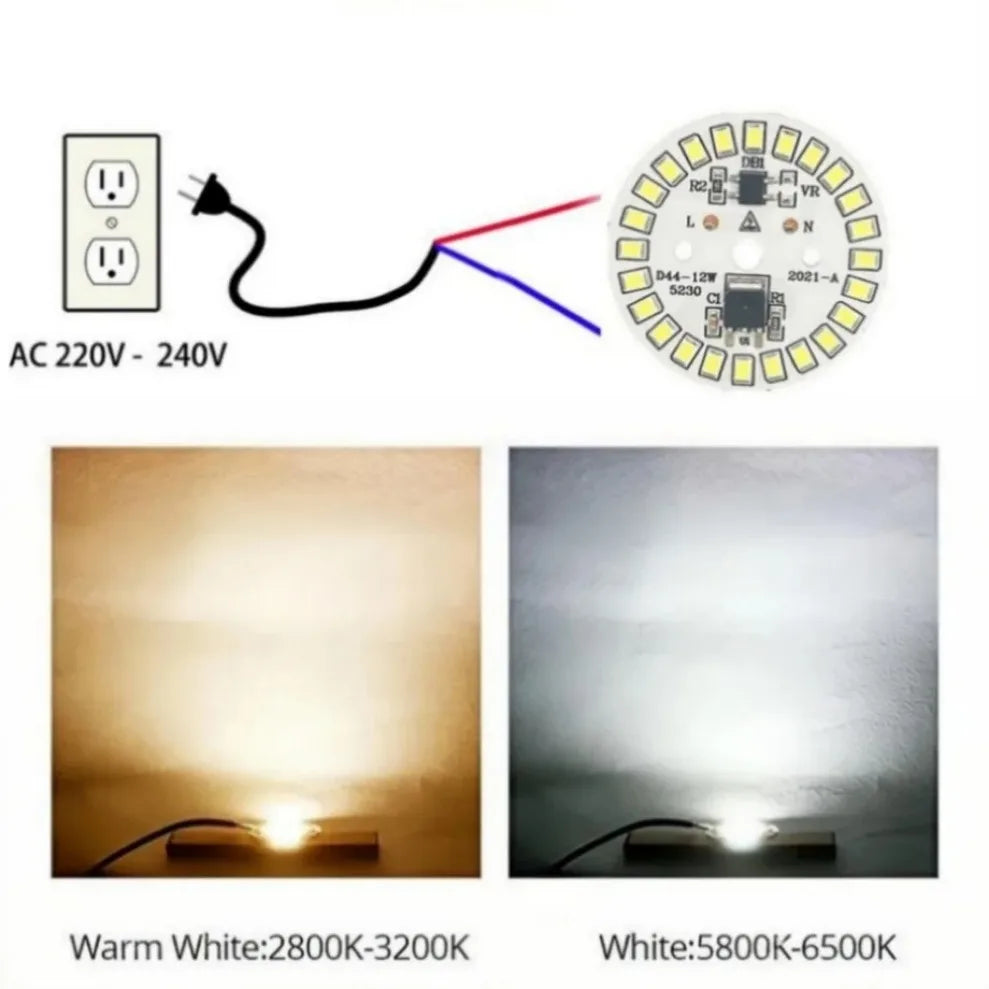

- Input Voltage: AC 220V–240V (220V / 230V / 240V compatible)
- LED Chip Model: SMD2835
- Color Rendering Index: >Ra85
- Color Temperature: Cold White 6000–6500K
- Luminous Efficacy: 90 lm/W
- Beam Angle: 120°
- Lifespan: >50,000 Hours
- Housing Material: Aluminum (fast heat dissipation)
- Certification: CE
Features & Benefits
- ✅ High Brightness & High Lumen Output – 90 lm/W efficacy for brilliant, consistent light
- ✅ No Flicker – Constant current and constant power control for stable, comfortable illumination
- ✅ Energy Saving – SMD2835 chips consume significantly less power than traditional light sources
- ✅ Surge Protection – Built-in MOV with >4000V surge protection for long-term reliability
- ✅ Overheat Protection – NTC sensor monitors PCB temperature to prevent thermal damage
- ✅ Over-Voltage & Over-Current Control – Driver IC with integrated voltage regulator for IC VDD protection
- ✅ Fast Heat Dissipation – Aluminum housing efficiently disperses heat to maintain chip performance
- ✅ Retail & Wholesale Ready – Available for individual purchase or bulk orders
Perfect For
- Replacement light source plates in bulb fittings, downlights, and spotlights
- DIY lighting projects and repairs
- Commercial and residential retrofitting
- Workshops and hobbyist electronics builds
You May Also Like
- 1-Bay 3.7V Lithium Battery Charger for 18650 & Multi-Size
- 0.85" IPS LCD Display 128x128 SPI GC9107 for ESP32 & Pi
- 1-to-8 PWM Fan Hub SATA Molex 3-Pin 4-Pin Speed Controller
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What wattages are available for this SMD2835 LED lamp chip module?
A: This circular LED lamp chip module is available in six power options: 3W, 5W, 7W, 9W, 12W, and 15W, making it suitable for a wide variety of bulb fittings, downlights, and spotlight applications.
Q: Is this LED chip compatible with standard mains voltage?
A: Yes. This SMD2835 circular LED module is designed to operate on AC 220V–240V mains voltage, covering standard voltages used in most European, Asian, and Australian markets (220V, 230V, and 240V).
Q: Does this LED lamp chip module have any built-in protection features?
A: Absolutely. The module includes MOV surge protection rated at over 4000V, an NTC sensor for PCB overheat protection, a voltage regulator for IC VDD protection, and a driver IC with over-voltage and over-current control — ensuring safe, reliable long-term performance.
Q: What is the expected lifespan of this LED chip?
A: This SMD2835 LED circular lamp chip module is rated for over 50,000 hours of use, delivering excellent value and reducing the need for frequent replacements in both home and commercial settings.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
