SO DDR5 to DDR5 U DIMM Adapter Module – 6-Layer PCB Test Board

SO DDR5 to DDR5 U DIMM Adapter Module – 6-Layer PCB Test Board

$27.23 $32.21
Ships FromCN

SO DDR5 to DDR5 U DIMM Adapter Module – Compact Memory Testing Board

The SO DDR5 to DDR5 U DIMM Adapter Module is an essential tool for memory module manufacturers, engineers, and hardware testers who need a reliable, compact solution for evaluating SO DDR5 memory modules on standard U DIMM-compatible motherboards and test platforms. Made in Mainland China.

Why Choose This Adapter?

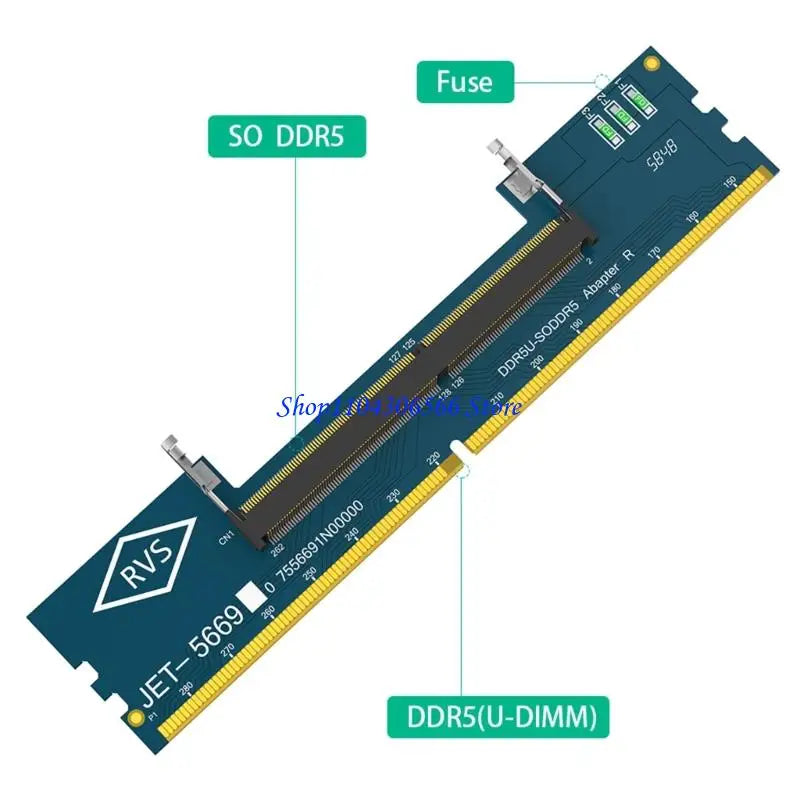

  • Broad Compatibility: Bridges SO DDR5 modules to standard DDR5 U DIMM slots, enabling cross-platform compatibility testing across a wide range of motherboards and test devices.
  • High-Frequency Support: Features a 6-layer PCB design with low-noise characteristics that supports frequencies exceeding 4800MHz, ensuring accurate and stable signal transmission during assessment.
  • JEDEC Compliant: Built to comply with JEDEC Specification MO-337A, guaranteeing dependable and standardized performance for professional testing environments.
  • Durable Construction: The reinforced SO DDR5 connector is rated for 600+ insertions, protecting both the adapter and the memory module socket during extended or repeated test cycles.
  • Over-Current Protection: Integrated current regulation circuitry establishes safe operating conditions, helping to prevent electrical issues or accidental component damage during testing.
  • Error-Reduction Design: Engineered to minimize incorrect insertion, reducing user error and protecting sensitive components throughout the testing process.
  • Compact Form Factor: At just 133.7 × 27.5mm (L×H), this adapter fits neatly into professional testing setups without occupying excessive space.

Key Specifications

  • PCB Layers: 6 (low-noise design)
  • Compliance: JEDEC Specification MO-337A
  • Supported Frequency: Over 4800MHz
  • Connector Durability: 600+ insertions
  • Over-Current Protection: Yes
  • Dimensions: 133.7 × 27.5mm (L×H)
  • No assembly required
  • Country of Origin: Made in Mainland China

What's in the Box?

  • 1× SO DDR5 to DDR5 U DIMM Adapter Module

Related Products You May Like

Note: Please allow 1–2cm tolerance due to manual measurement. Slight color variation may occur depending on display settings.

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What does the SO DDR5 to DDR5 U DIMM adapter module do?

A: This adapter module allows SO DDR5 memory modules to be tested in standard DDR5 U DIMM slots. It is designed for memory module manufacturers and hardware engineers who need to assess SO DDR5 module performance and compatibility across different testing platforms and motherboards.

Q: What frequency does this DDR5 adapter support?

A: The adapter supports frequencies exceeding 4800MHz, thanks to its 6-layer PCB design with low-noise characteristics. It is compliant with JEDEC Specification MO-337A for professional-grade, standardized performance.

Q: How many times can the SO DDR5 connector be inserted before wearing out?

A: The reinforced SO DDR5 connector is rated for over 600 insertions, making it durable enough for extended memory module testing cycles used in manufacturing and quality control environments.

Q: Does this adapter require any assembly?

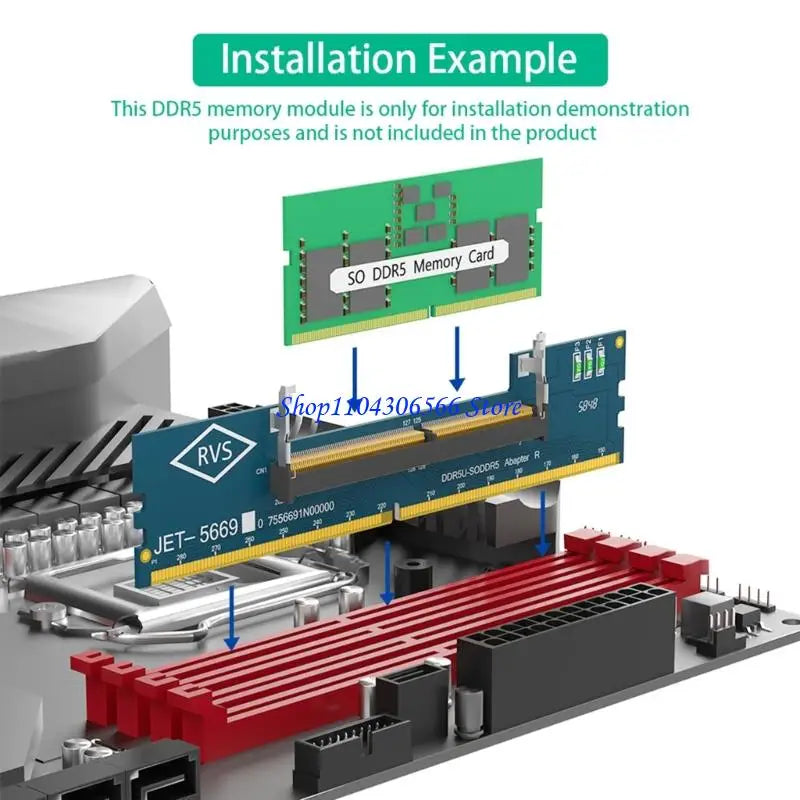

A: No assembly is required. Simply insert the adapter into your compatible DDR5 U DIMM slot and begin testing your SO DDR5 memory module right away.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
