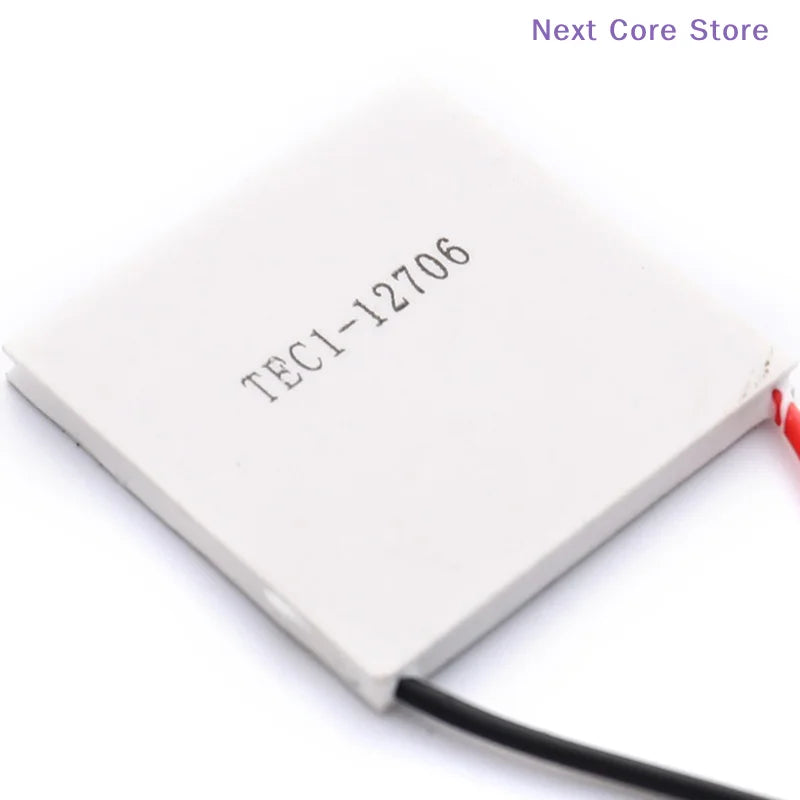

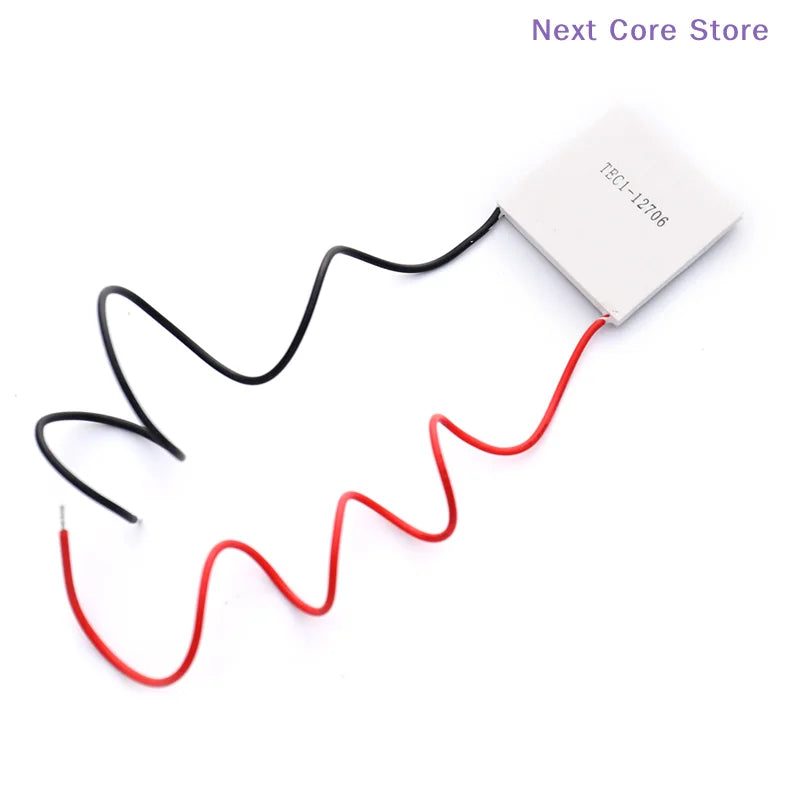

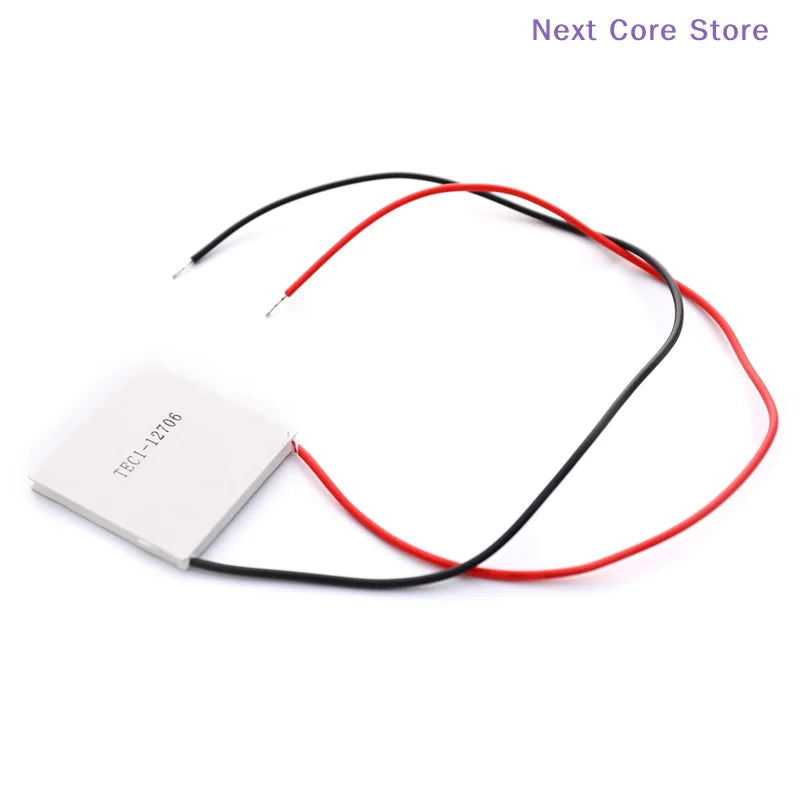

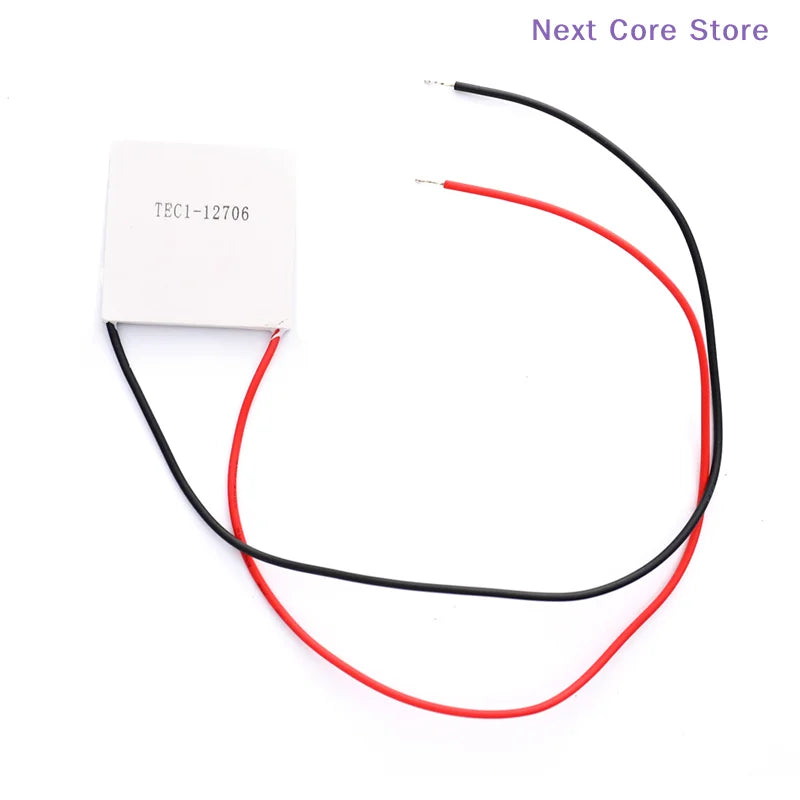

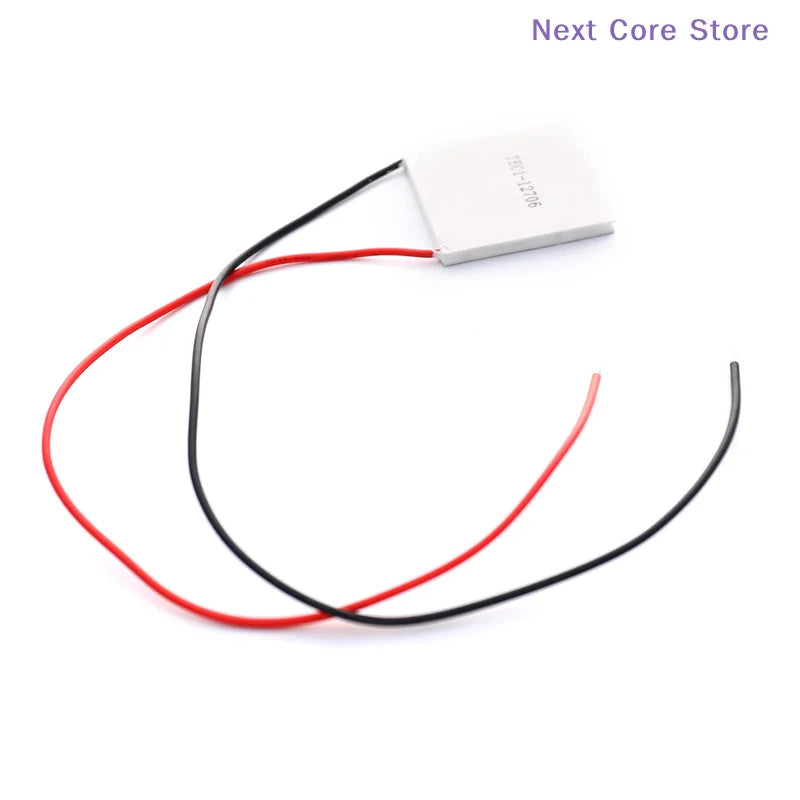

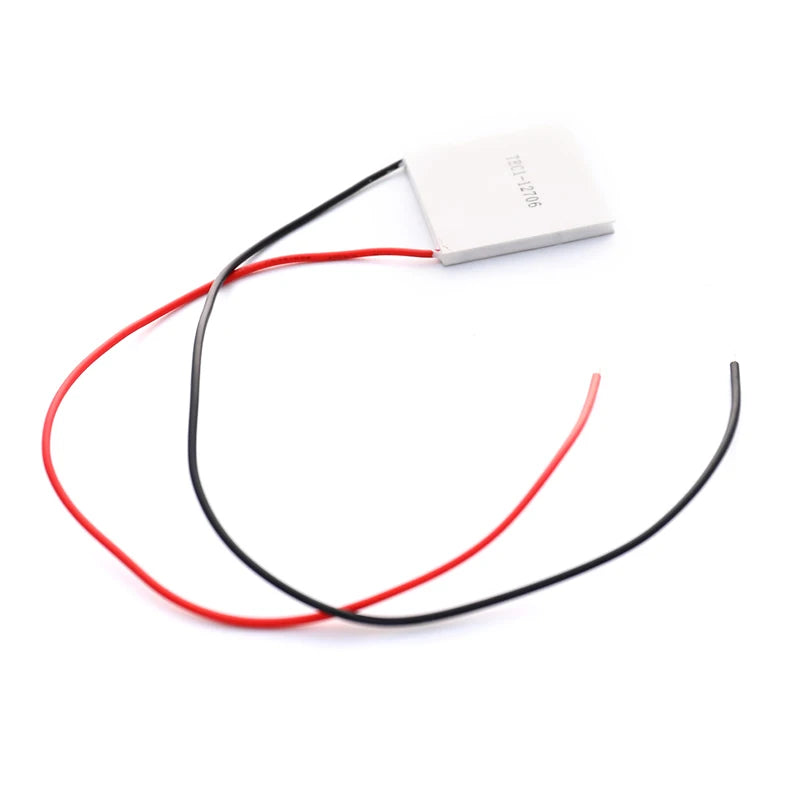

TEC1-12706 Thermoelectric Peltier Cooling Module – 12V, 60W
The TEC1-12706 Peltier Thermoelectric Module is a compact, high-performance solid-state heat pump capable of reaching ice-cold or high temperatures within minutes. Simply reverse the polarity to switch between cooling and heating modes — making it one of the most versatile thermal management components available for DIY electronics, CPU cooling systems, mini-fridges, laboratory setups, and more.
With a slim 40mm × 40mm × 4mm footprint and a lightweight 22g body, this module fits easily into tight spaces. It operates on standard DC voltage (0–15.2V) and draws up to 6A, making it compatible with most benchtop power supplies and 12V systems.
Important: Always use this module in conjunction with an adequate heat sink and thermal compound. Operating without a heat sink may cause permanent damage to the module.
Key Features
- ⚡ Dual-mode operation: Switch between cooling and heating by reversing polarity
- 🌡️ Operating temperature range: -30°C to +70°C
- 🔌 Input: 0–15.2V DC, 0–6A
- 💡 Max power consumption: 60 Watts
- 📐 Compact dimensions: 40mm × 40mm × 4mm
- ⚖️ Lightweight: 22g net weight
- 🔧 No assembly required – ready to integrate
- ✅ 100% new and high quality
Specifications
| Model | TEC1-12706 |
| Color | White |
| Dimensions | 40mm × 40mm × 4mm |
| Input Voltage | 0 – 15.2V DC |
| Max Current | 6A |
| Max Power | 60W |
| Operating Temp | -30°C to +70°C |
| Net Weight | 22g |
| Shape | Rectangular |
What's in the Box
- 1 × TEC1-12706 Thermoelectric Peltier Cooling Module
Made in Mainland China.
Looking for tools to complement your electronics or DIY projects? Check out our 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel and our 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle for more hands-on essentials.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the TEC1-12706 Peltier module used for?
A: The TEC1-12706 thermoelectric Peltier module is widely used in CPU cooling systems, portable mini-coolers, beverage chillers, laboratory temperature-control devices, and DIY electronics projects. It can both cool and heat a surface depending on how the DC polarity is connected.
Q: Does the TEC1-12706 need a heat sink to operate?
A: Yes — a heat sink (and ideally thermal paste) is essential. The hot side of the Peltier module must be properly dissipated; running it without a heat sink can cause the module to overheat and become permanently damaged very quickly.
Q: Can I switch the TEC1-12706 between cooling and heating modes?
A: Absolutely. By reversing the DC polarity (swapping the positive and negative leads), you switch the module from cooling mode to heating mode, making it extremely versatile for dual-purpose thermal management applications.
Q: What power supply do I need for the TEC1-12706?
A: The module operates on 0–15.2V DC with a maximum current draw of 6A. A standard 12V DC power supply rated at 6A or higher is ideal for most applications, including CPU cooling setups and DIY projects.
