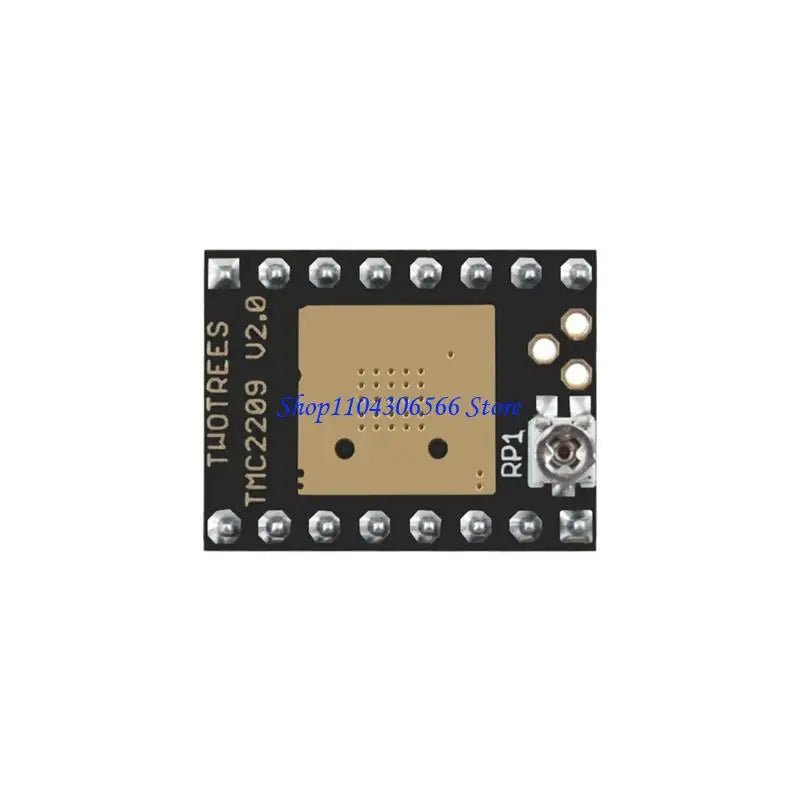

TMC2209 V2.0 Stepper Motor Driver Module for 3D Printers
Upgrade your 3D printer's motion system with the TMC2209 V2.0 Stepper Motor Driver — a compact, high-performance module designed for ultra-quiet two-phase stepper motor control. Featuring an original imported TMC2209 chip, this driver delivers smooth, nearly silent operation with up to 256 microstep interpolation for exceptional print precision and surface quality.
Whether you're building or upgrading a RepRap, CoreXY, or delta-style printer, the TMC2209's wide compatibility with StepStick and Pololu A4988 hardware makes it a drop-in upgrade for most popular boards including MKS Gen L V2.0, SKR 1.3/1.4, and MKS SGEN-L.
Key Features
- Ultra-Quiet Operation: TMC2209 IC with StealthChop2™ technology for near-silent stepper motor control
- 256 Microstep Interpolation: Step/Dir interface with up to 256 microsteps for smooth, precise movement
- Sensorless Homing: Built-in StallGuard4™ enables sensorless feedback homing — no end-stop switches needed
- UART Mode Support: Easily configured via jumper caps on supported boards — no soldering required
- High Current Output: Supports up to 2.5A peak motor current
- Wide Input Voltage: Compatible with 5.5V–28V power supply range

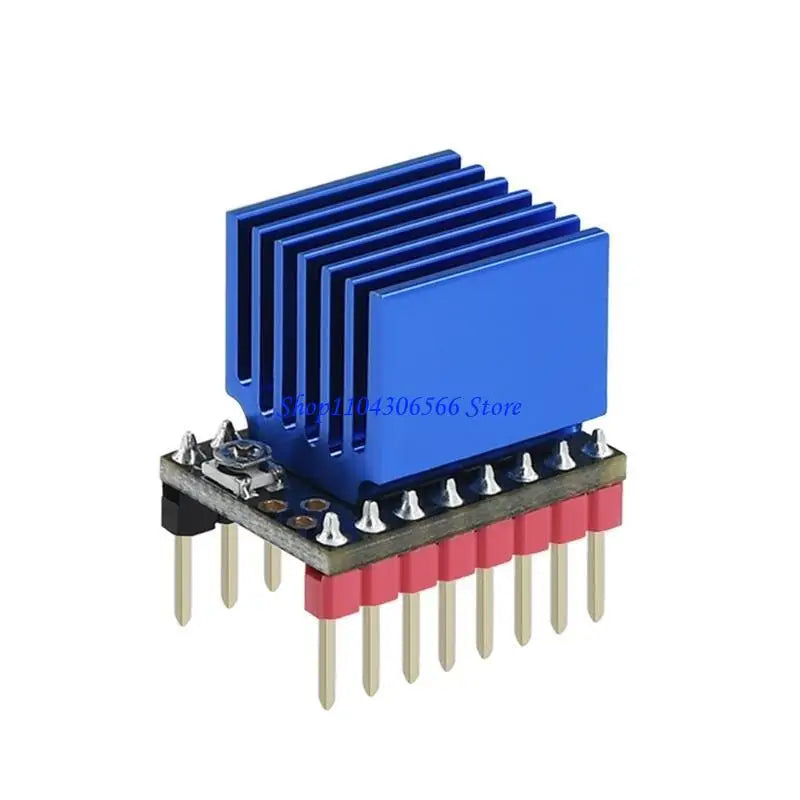

- Effective Heat Dissipation: Comes with a large heatsink for reliable thermal management during extended print sessions
- Hardware Compatible: Pin-compatible with StepStick and Pololu A4988 drivers
Specifications
| Model | TMC2209 V2.0 |
| Chip | TMC2209 (original imported) |
| Motor Type | Two-phase Stepper Motor |
| Max Current | 2.5A |
| Input Voltage | 5.5V – 28V |
| Microstep Resolution | Up to 256 |
| Package Size | Approx. 9 × 13 mm |
| Compatible Boards | MKS Gen L V2.0, SKR 1.3/1.4, MKS SGEN-L, and more |

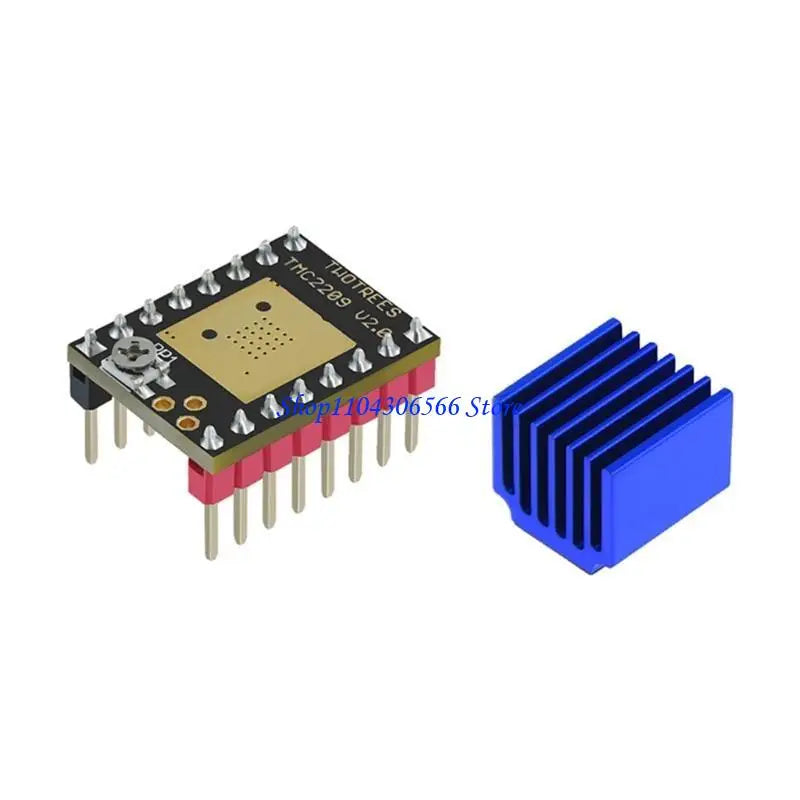

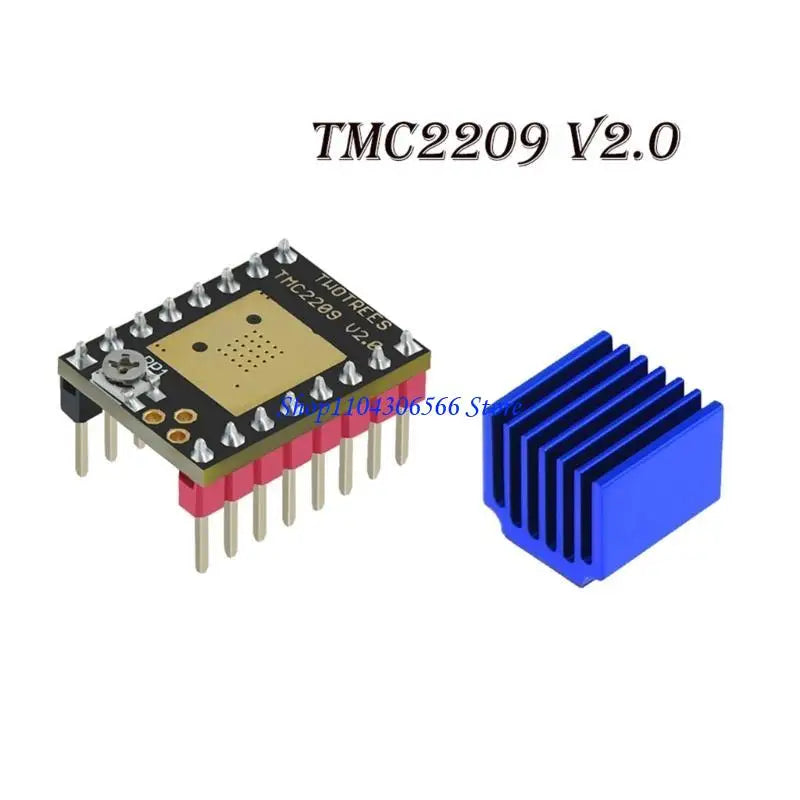

What's in the Box
- 1× TMC2209 V2.0 Stepper Motor Driver Module
- 1× Heatsink
Made in Mainland China.
Related Products You May Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Is the TMC2209 V2.0 stepper motor driver compatible with my 3D printer board?
A: Yes — the TMC2209 V2.0 is hardware-compatible with StepStick and Pololu A4988 footprints, making it compatible with a wide range of popular 3D printer control boards including MKS Gen L V2.0, SKR 1.3, SKR 1.4, and MKS SGEN-L. Always verify your board's pinout before installation.
Q: Do I need to solder anything to enable UART mode?
A: No soldering is required. UART mode can be enabled simply by attaching the included jumper caps on supported boards, making configuration quick and easy.
Q: What is sensorless homing and how does the TMC2209 support it?
A: Sensorless homing uses the driver's built-in StallGuard4™ technology to detect when the print head or bed reaches a mechanical boundary — eliminating the need for physical end-stop switches. This simplifies wiring and reduces potential points of failure in your printer setup.
Q: Does the TMC2209 module come with a heatsink?
A: Yes, each TMC2209 V2.0 module includes one heatsink to help manage heat during extended operation and maintain stable performance.
