TP4056 18650 Lithium Battery Charger Module – USB Type-C

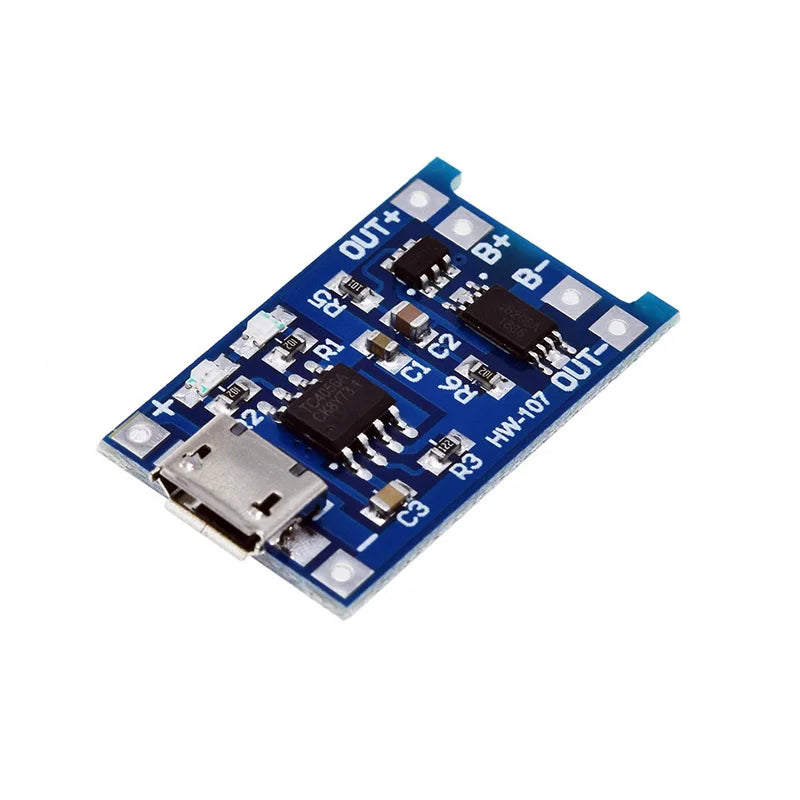

TP4056 18650 Lithium Battery Charger Module with Protection – Type-C & Micro USB

Build smarter DIY electronics with this compact TP4056 18650 Lithium Battery Charger Module. Featuring a two-in-one design that combines linear charging with built-in battery protection, this versatile charging board supports both Type-C and Micro USB input — making it a go-to component for makers, hobbyists, and engineers alike. Whether you're powering a custom flashlight, portable speaker, or Arduino project, this module delivers reliable, precise charging in a tiny footprint.

Made in Mainland China.

Key Features

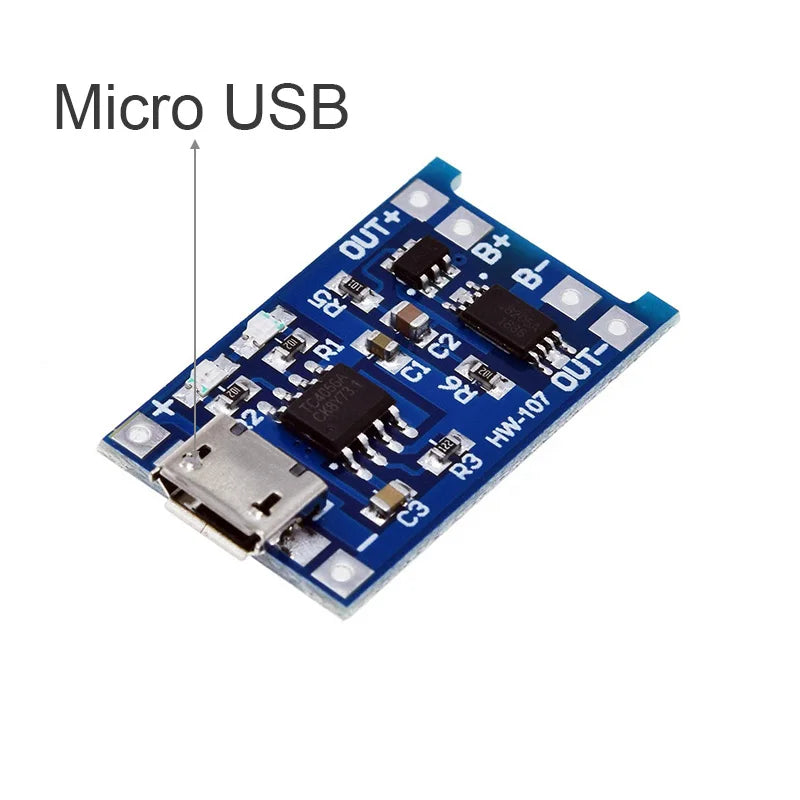

• Dual Input Interface: Compatible with Type-C USB and Micro USB for flexible connectivity
• Two-in-One Design: Charging circuit + battery protection (overcharge, over-discharge, short circuit) on one board
• Adjustable Charge Current: Up to 1A, fine-tunable to match your battery capacity
• High Charging Precision: ±1.5% accuracy ensures consistent, safe charge cycles
• Full Charge Voltage: 4.2V ± 1% — ideal for standard 18650 lithium cells

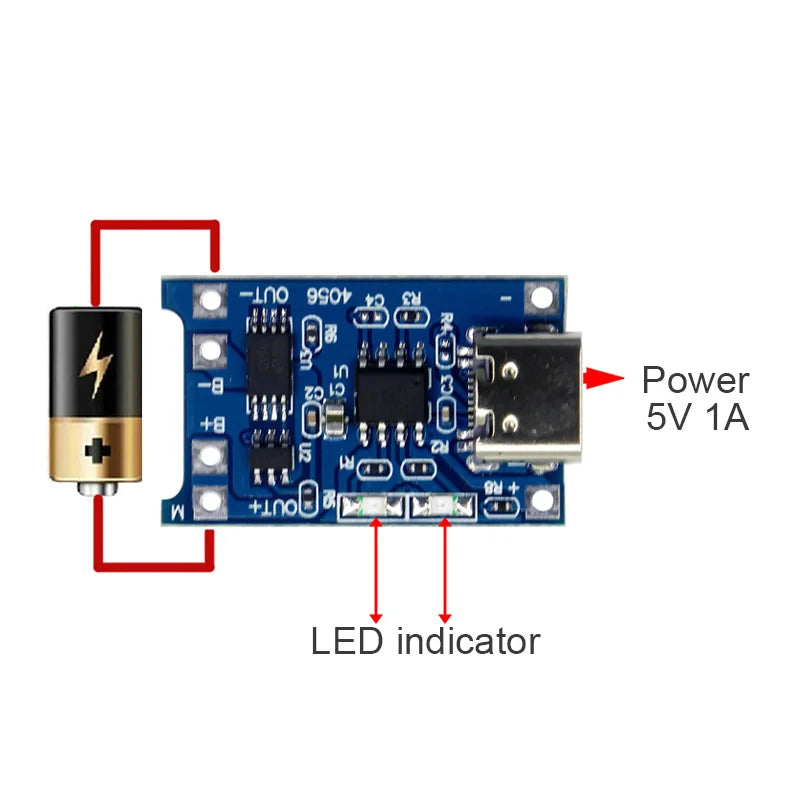

• LED Status Indicators: Red = Charging | Green = Fully Charged — at-a-glance monitoring
• Wide Operating Temperature: -10°C to +85°C for use in varied environments
• Input Voltage Range: 4.5V – 5.5V (standard USB power sources)
• Compact & Reusable: Lightweight PCB module, easy to integrate into any DIY build

Specifications

Perfect For DIY Projects Such As

• Custom portable power banks
• Arduino & Raspberry Pi battery power systems
• DIY flashlights, headlamps & LED drivers
• Portable audio devices & Bluetooth speakers
• RC vehicles & robotics builds

Related Products You May Like

• 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
• 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
• 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: Is the TP4056 charging module compatible with all 18650 lithium batteries?

A: Yes, the TP4056 module is designed to charge standard 3.7V 18650 lithium-ion cells. It charges to a full voltage of 4.2V ± 1%, which is the standard specification for most 18650 lithium batteries used in DIY electronics projects.

Q: What is the difference between the standard TP4056 and this two-in-one version?

A: This two-in-one TP4056 module combines the charging circuit with a built-in battery protection circuit on a single board. The protection circuit safeguards your lithium cell against overcharge, over-discharge, and short circuits — giving you greater safety and peace of mind without needing a separate protection board.

Q: Can I use a standard USB phone charger to power this module?

A: Absolutely. The module accepts an input voltage of 4.5V–5.5V, which is the standard output range of USB chargers and power banks. Simply connect via the Type-C or Micro USB port and the module will handle the rest.

Q: How do I know when the battery is fully charged?

A: The module features two LED status indicators. A red LED lights up during charging, and it switches to a green LED once the battery is fully charged — making it simple to monitor charging status at a glance.
