USB 3.2 Gen2 Type-E to Type-C Adapter Cable – 20Gbps | OULLX

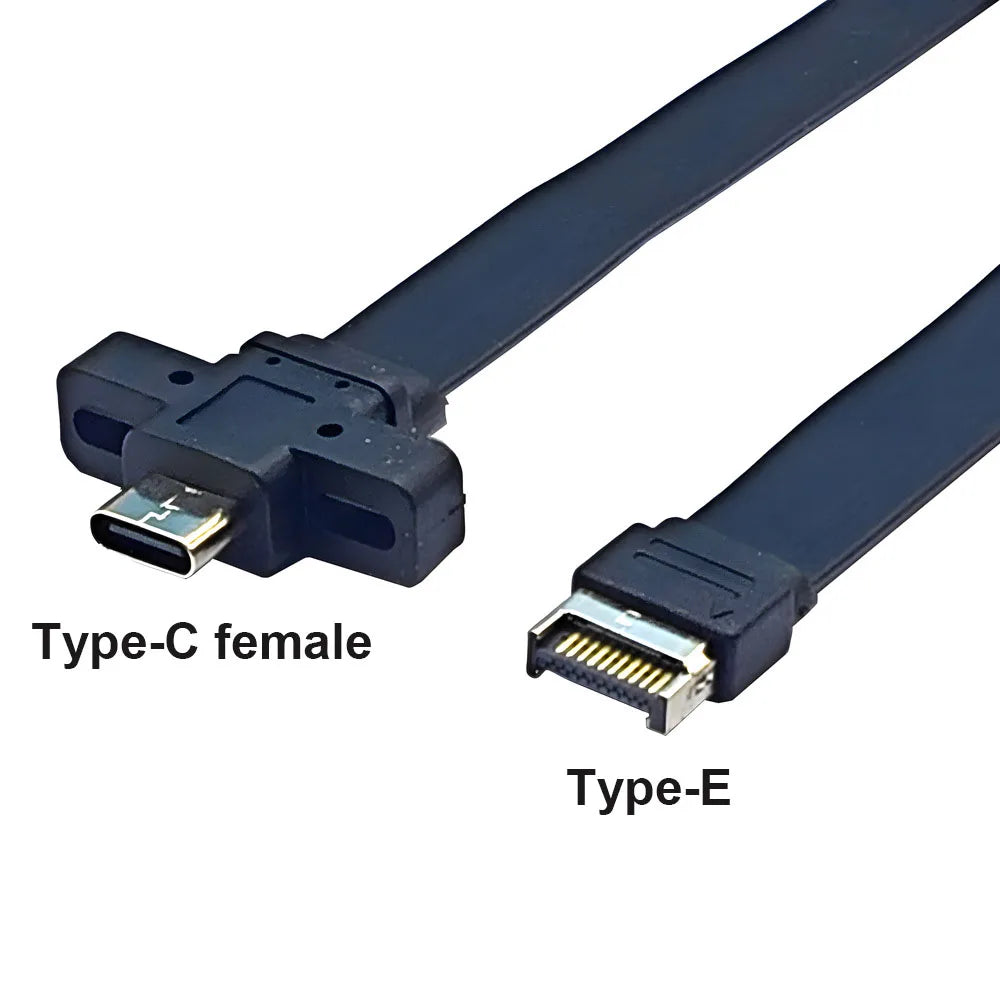

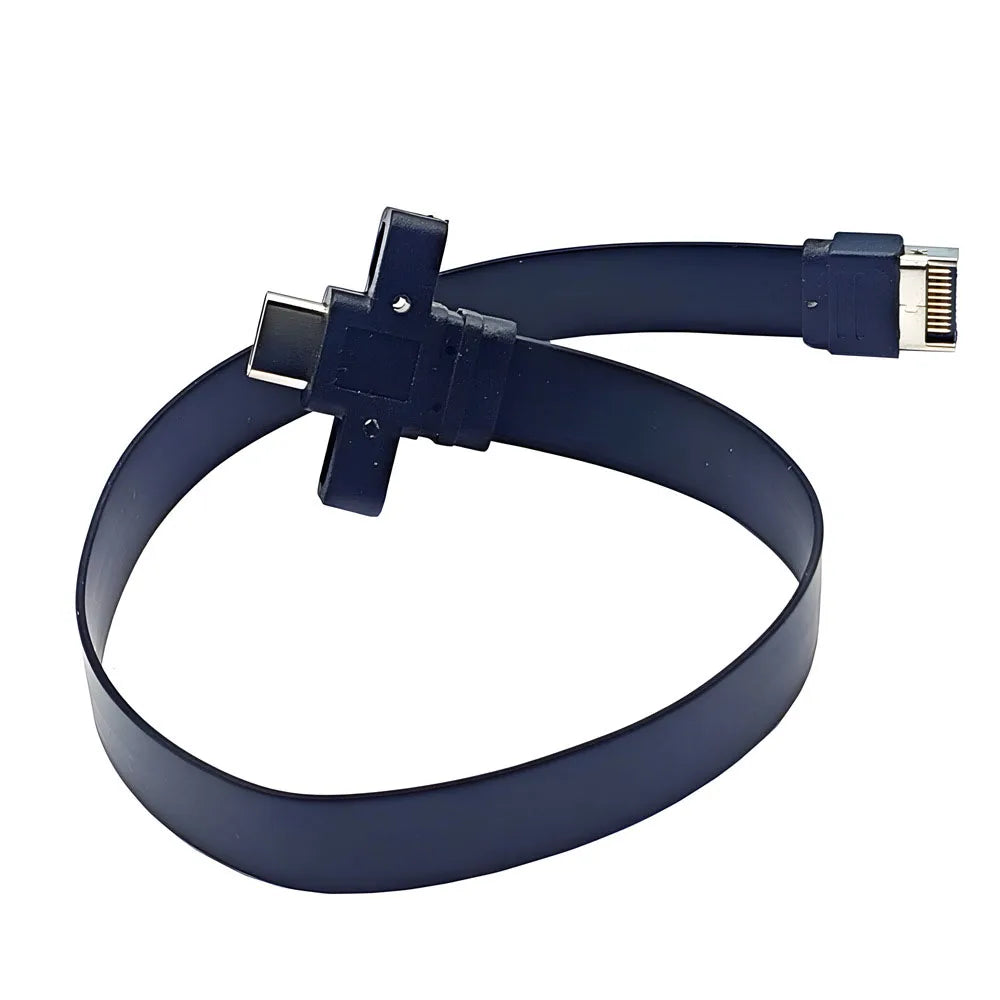

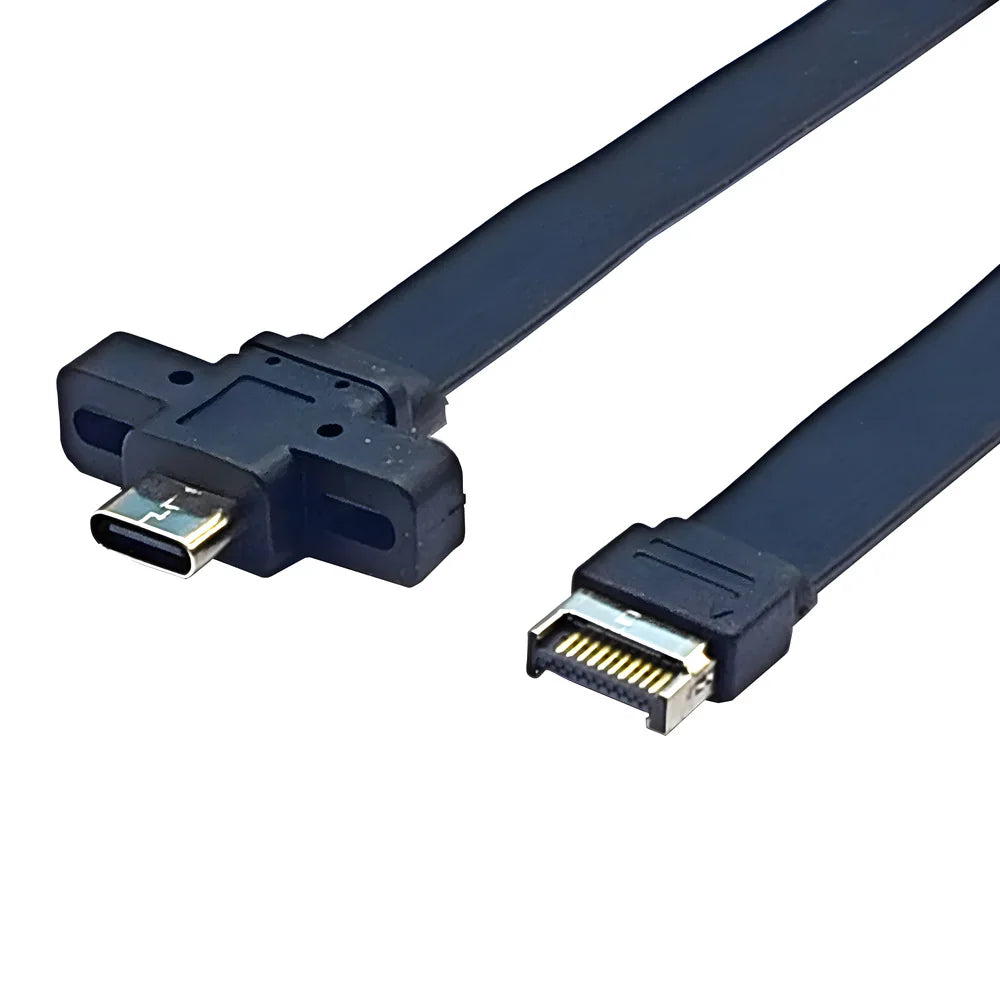

OULLX USB 3.2 Gen2 Type-E to Type-C Female Motherboard Header Adapter Cable

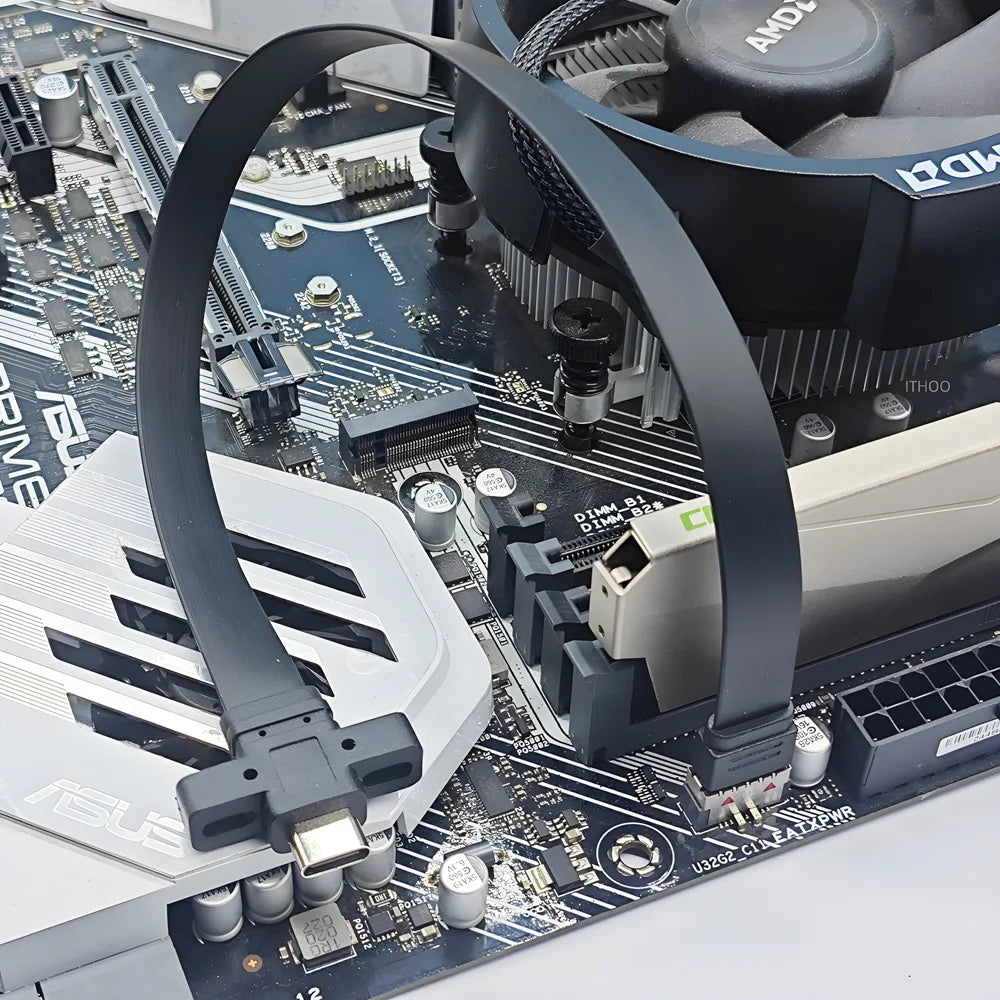

Upgrade your PC build with the OULLX USB 3.2 Gen2 Type-E to Type-C Female Conversion Cable — the easiest way to bring a blazing-fast front-panel or PCI-slot USB-C port to any motherboard equipped with a Type-E internal header. Whether you're routing a port to your chassis front panel or adding a rear-bracket USB-C output, this flat, low-profile cable gets the job done cleanly and reliably.

Made in Mainland China.

Key Features

• Blazing 20 Gbps throughput — USB 3.2 Gen 2×2 standard delivers up to 20 Gbps data transfer speeds for rapid file moves, backups, and device syncing.
• Up to 100W Power Delivery — Charge and power USB-C devices directly through your motherboard's Type-E header.
• 16-Core Internal Wiring + 4 High-Speed Signal Pairs — Built to the official USB Association specification for stable, full-bandwidth performance.
• Complete Tin-Coated Copper Shielding — A wound shielding layer eliminates signal interference and ensures consistent, error-free data transmission.
• Plug-and-Play Compatibility — Supports Windows 7/8/10/11 (32-bit & 64-bit), macOS, and Linux with no drivers required.

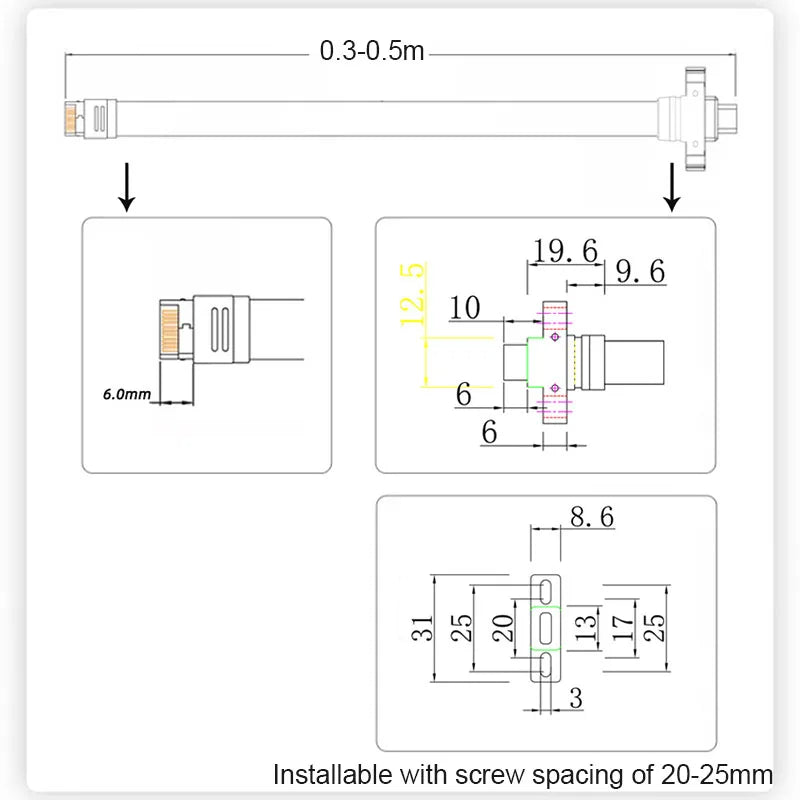

• Nut-Fixed Type-C Female Port — The Type-C female end features a nut design for secure mounting to standard full-height or small-form-factor PCI bracket positions.
• Flat Cord Design — Low-profile flat cable routes neatly inside even compact chassis without obstructing airflow.
• Reversible USB-C Connector — True positive-and-negative plug orientation; users can insert USB-C cables in either direction.

Specifications

⚠️ Please Note: This cable requires that your motherboard has a USB 3.2 Type-E internal header port. Check your motherboard specifications before purchasing. The included full-height PCI baffle is compatible with standard ATX chassis; a low-profile alternative baffle can also be used with small-form-factor cases.

Related Products You May Like

• 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
• 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
• 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What motherboard header does this USB Type-E to Type-C cable connect to?

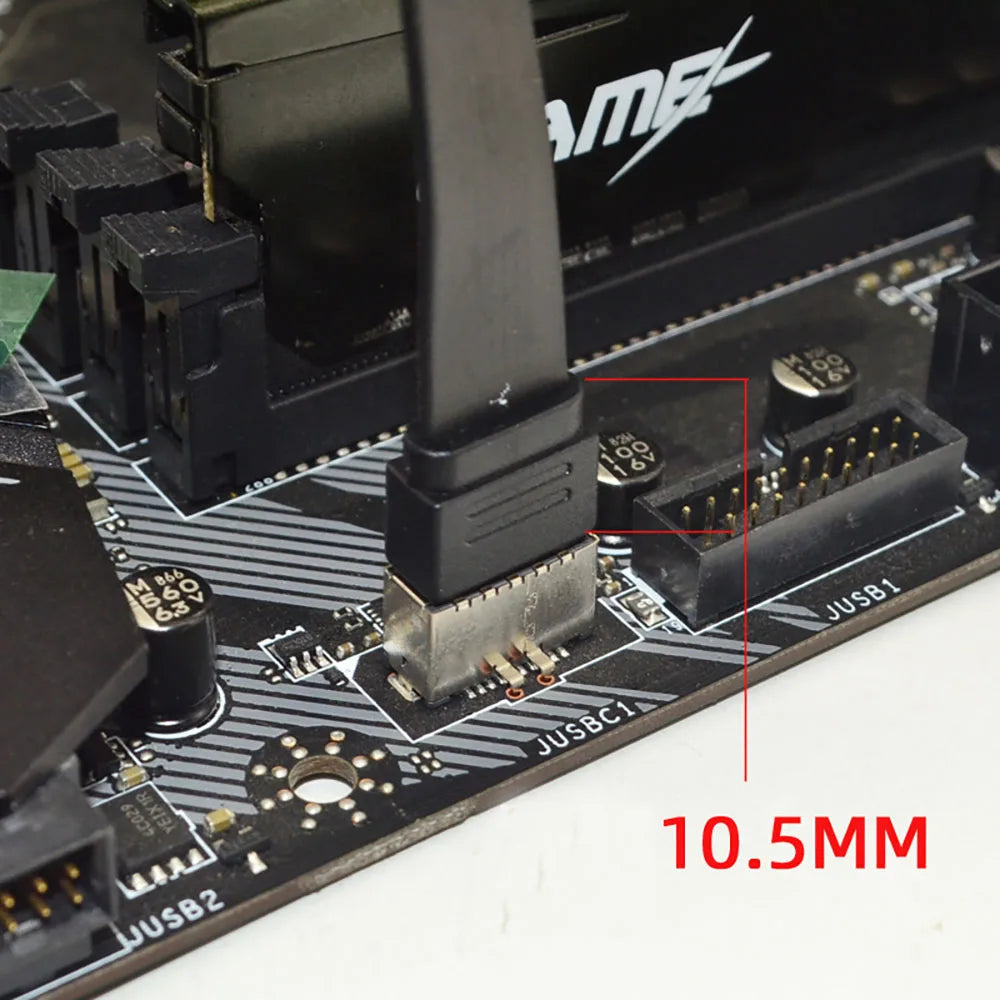

A: This cable connects to your motherboard's internal USB 3.2 Type-E male header (also labeled as "USB 3.2 Gen2 Type-E" on most modern motherboards). The other end provides an accessible USB-C female port you can mount to a PCI bracket or front-panel cutout. Always confirm your motherboard has a Type-E header before purchasing.

Q: What data transfer speed does this cable support?

A: This cable supports the USB 3.2 Gen 2×2 standard, providing data transfer speeds of up to 20 Gbps — ideal for external SSDs, high-speed storage enclosures, and other bandwidth-hungry USB-C devices.

Q: Can this cable deliver power to USB-C devices?

A: Yes. When paired with a compatible motherboard and USB-C device, this cable supports up to 100W power delivery, allowing you to charge or power USB-C peripherals directly from your motherboard's Type-E header.

Q: Is this cable compatible with small form factor (SFF) cases?

A: Yes. While the cable ships with a standard full-height PCI baffle for ATX cases, it is also compatible with small-chassis low-profile baffle configurations, making it flexible for a variety of PC builds.
