USB Cable Tester Board – 24 LED, USB 2.0 3.0 & Type-C
USB Cable Tester Board – 24 LED, USB 2.0 3.0 & Type-C
USB Cable Testing Board – Instantly Verify Every Pin Connection
Take the guesswork out of USB cable troubleshooting with this compact USB Cable Tester Board. Supporting USB 2.0, USB 3.0, Type-C, Micro-B, and Type-B connectors, it uses 24 individual LED indicators to visually confirm the function and connectivity of every single pin — no software, no multimeter, no complexity required.
Whether you're a technician, hobbyist, or just someone who wants to verify a cable before use, this board makes the process fast, clear, and reliable.
Key Features
- 24 LED Pin Indicators: Each LED corresponds to an individual pin, giving you an instant visual readout of cable functionality.
- Wide Connector Support: Compatible with USB Type-A 2.0, USB Type-A 3.0, USB Type-C 3.1/3.2, Micro-B, Micro-B 2.0, Type-B, and more.
- Dual Power Supply: Powered by a coin cell battery or an external DC 3–12V power source — flexible for workshop or on-the-go use.
- Reverse Connection Protection: Built-in circuitry guards against accidental incorrect connections.
- Plug & Test Design: Simply insert the cable ends into the corresponding ports — the LEDs do the rest instantly.

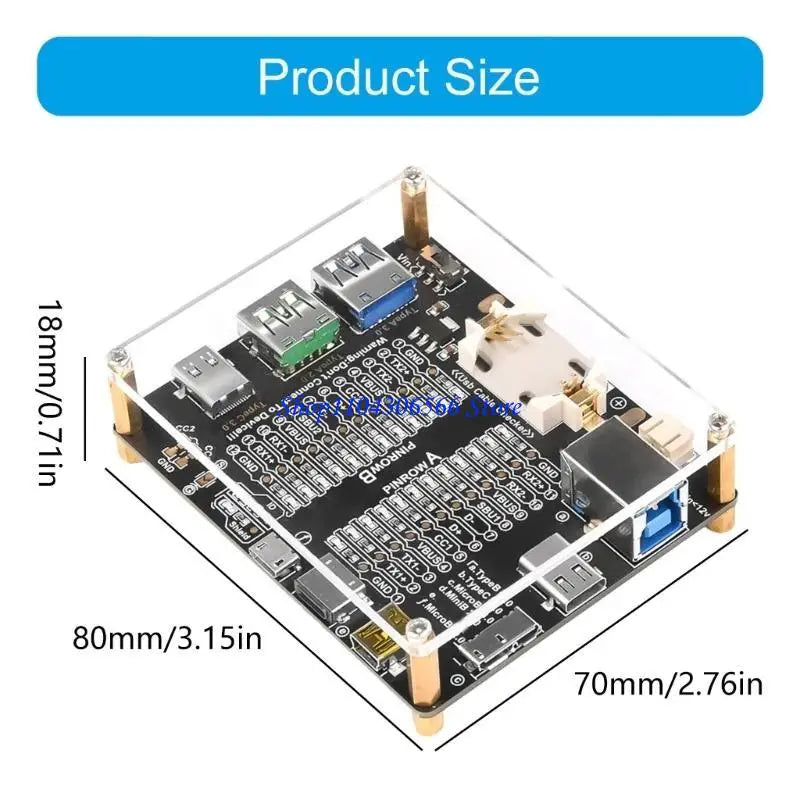

- Compact & Portable: Measures just 8×7 cm (3.15×2.76 in), fits in any toolkit, drawer, or bag.
- Optional Case: Available with or without a protective case.
Specifications
| Product Name | USB Data Cable Test Board |
| Model | 02DD4NB607770 |
| Power Supply | Coin cell battery / External DC 3–12V |
| LED Indicators | 24 |
| Connector Types | USB 2.0, USB 3.0, Type-C 3.1/3.2, Micro-B, Micro-B 2.0, Type-B |
| Product Size | 8×7 cm / 3.15×2.76 in |
| Assembly Required | No |
| Country of Origin | Made in China |
What's in the Box
- 1× USB Cable Test Board
Note: Please allow ±1–2 cm variance due to manual measurement. Slight color differences may appear due to varying display settings. Cable carrying capacity cannot be tested with this device.
