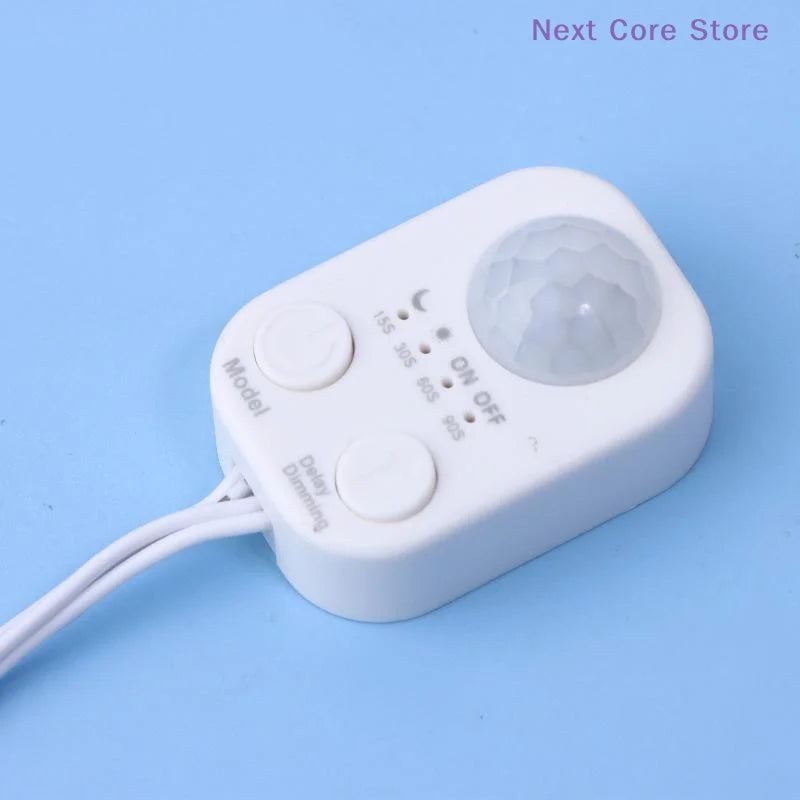

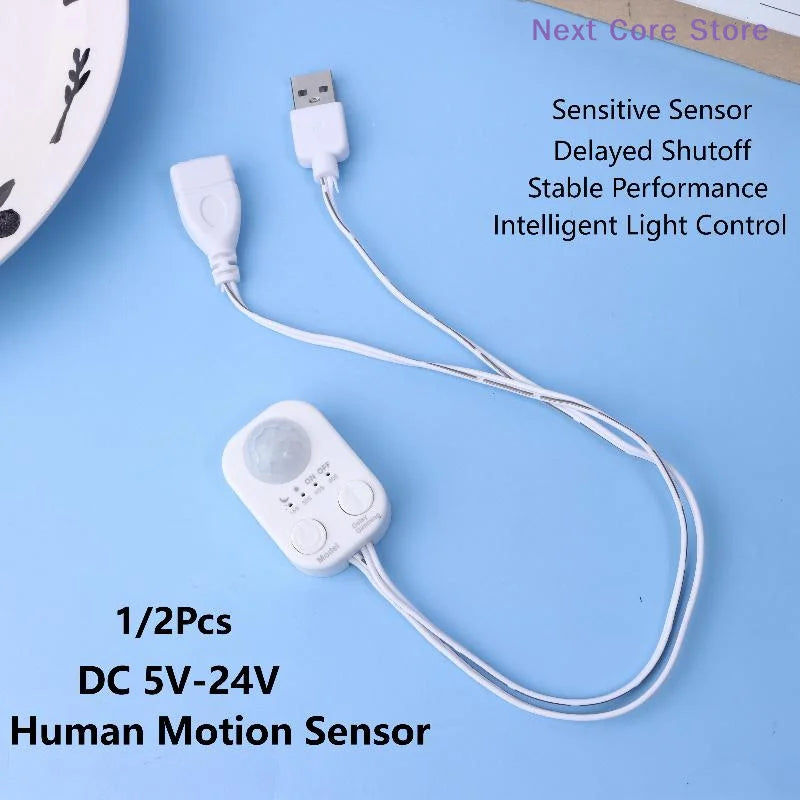

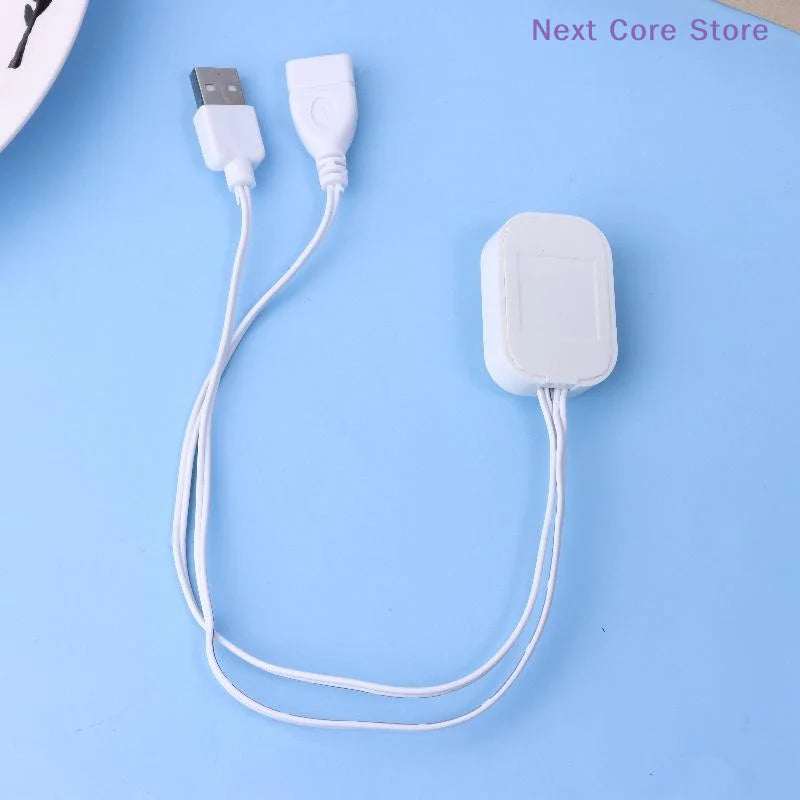

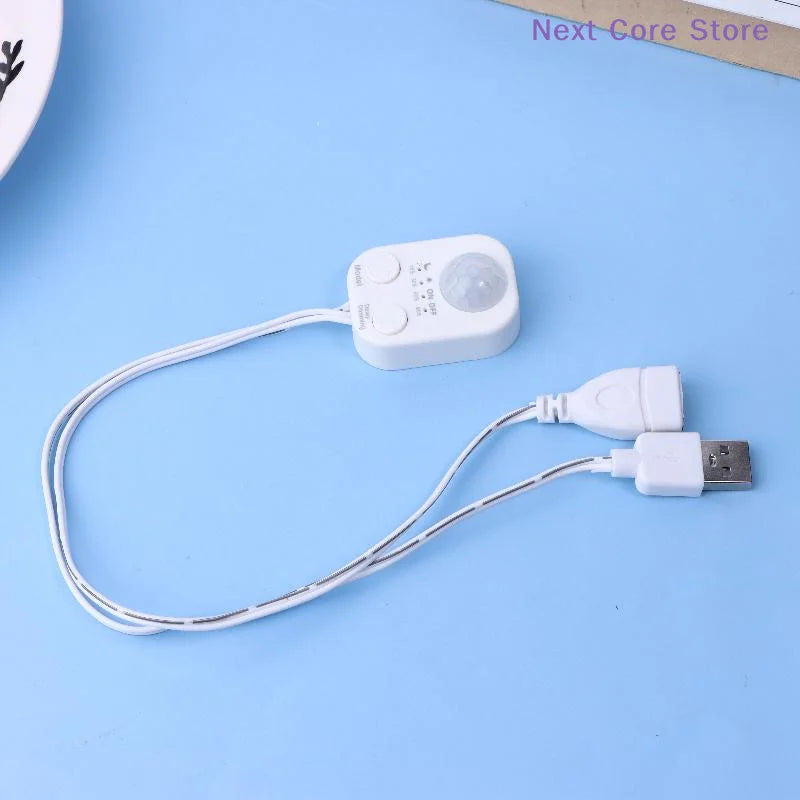

USB PIR Motion Sensor Switch 5V–24V for LED Light Strips
USB PIR Motion Sensor Switch 5V–24V for LED Light Strips
Smart Motion-Activated Switch for LED Lights
Take the hassle out of manual switching with this compact USB & DC PIR Motion Sensor Switch. Using passive infrared (PIR) technology, it automatically detects body heat and movement within a wide 120° angle and up to 5 metres away — turning your LED light strips on the moment you enter and off again after you leave. Perfect for wardrobes, under-cabinet lighting, stairways, hallways, bedrooms, and more.
Made in Mainland China.
Key Features
- Wide Voltage Compatibility: Operates on 5V–24V DC, making it compatible with most USB-powered and DC-powered LED strips.
- Dual Connection Options: Connect via USB or DC cable for maximum flexibility.
- 120° Wide-Angle Detection with an inductive range of up to 5 metres for broad coverage.
- Adjustable Delay Timer: Choose from 15, 30, 60, or 90 seconds before lights automatically switch off after no motion is detected.
- Continuous Brightness Adjustment: Dim from 10% to 100% to suit any ambiance or environment.
- Multiple Lighting Modes: Switch between sensor-activated and constant-on modes.
- Continuous Trigger Mode: Keeps lights on as long as motion is detected — no annoying cut-outs mid-activity.
- Low Standby Current: Less than 5mA static draw keeps energy consumption minimal.
- Compact & Discreet: Tiny 4 × 3 × 2 cm body fits neatly into tight spaces without drawing attention.
- Durable Plastic Build: Lightweight and robust for everyday use.
Specifications
| Working Voltage | 5V–24V DC (Wide Voltage) |
| Static Current | <5mA |
| Output Current | 5A |
| Delay Time | 15 / 30 / 60 / 90 seconds |
| Brightness Adjustment | 10%–100% (Continuous) |
| Detection Method | Passive Infrared Sensing |
| Inductive Angle | 120° |
| Inductive Distance | Up to 5 metres |
| Working Temperature | -10°C to +35°C |
| Trigger Mode | Continuous Triggering |
| Material | Plastic |

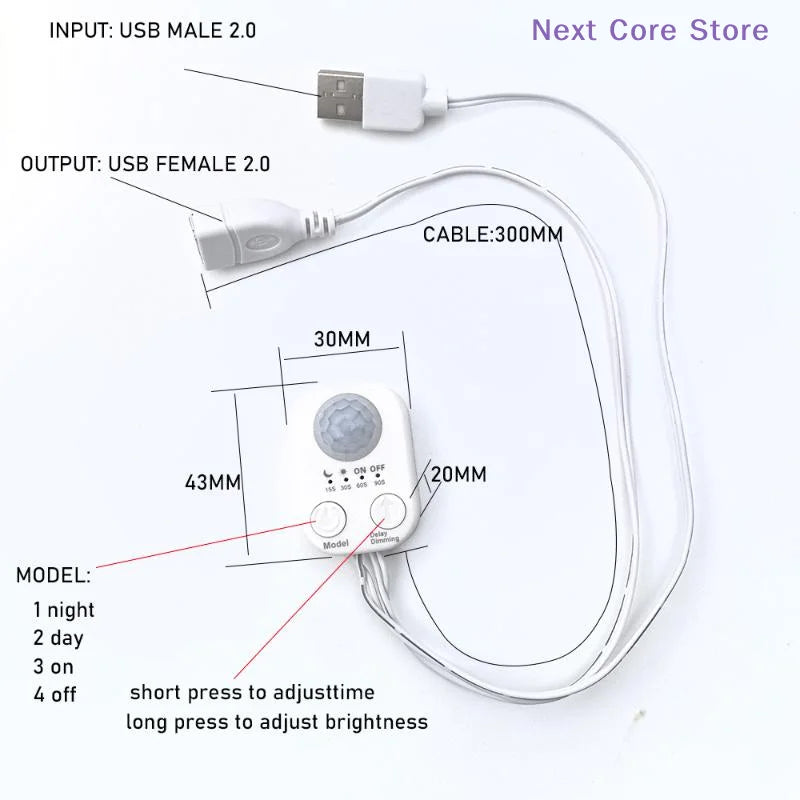

| Size | ~4 × 3 × 2 cm / 1.57 × 1.18 × 0.79 in |
| Package Includes | 1 or 2 Pcs Sensor Switch |
| Connection | USB or DC Cable |
Perfect For
- Under-cabinet LED strip lighting in kitchens and offices
- Wardrobe and closet lighting automation
- Staircase and hallway lighting
- Bedside and accent LED lighting
- DIY smart home projects
Related Products You May Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What LED strip voltages is this PIR motion sensor switch compatible with?
A: This sensor switch supports a wide voltage range of 5V to 24V DC, making it compatible with the vast majority of USB-powered and DC-powered LED light strips available on the market today.
Q: Can I adjust how long the lights stay on after motion is no longer detected?
A: Yes! The delay timer is fully adjustable with four settings: 15, 30, 60, or 90 seconds. Once no motion is detected within the delay window, the lights will switch off automatically.
Q: What is the detection range and angle of this PIR sensor?
A: The sensor detects motion within a 120° wide-angle field of view and at a distance of up to 5 metres, providing broad and reliable coverage for most rooms and installation scenarios.
Q: Does the sensor work in constant-on mode as well?
A: Yes. In addition to the automatic sensor-activated mode, the switch also features a constant-on mode so your lights can stay on regardless of motion detection, giving you full control over your lighting setup.
