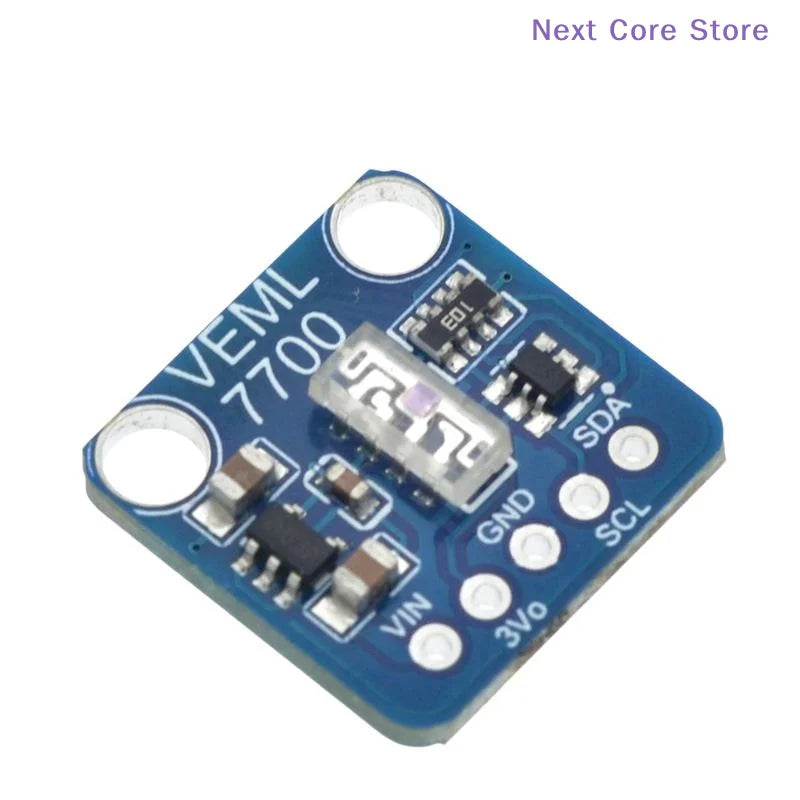

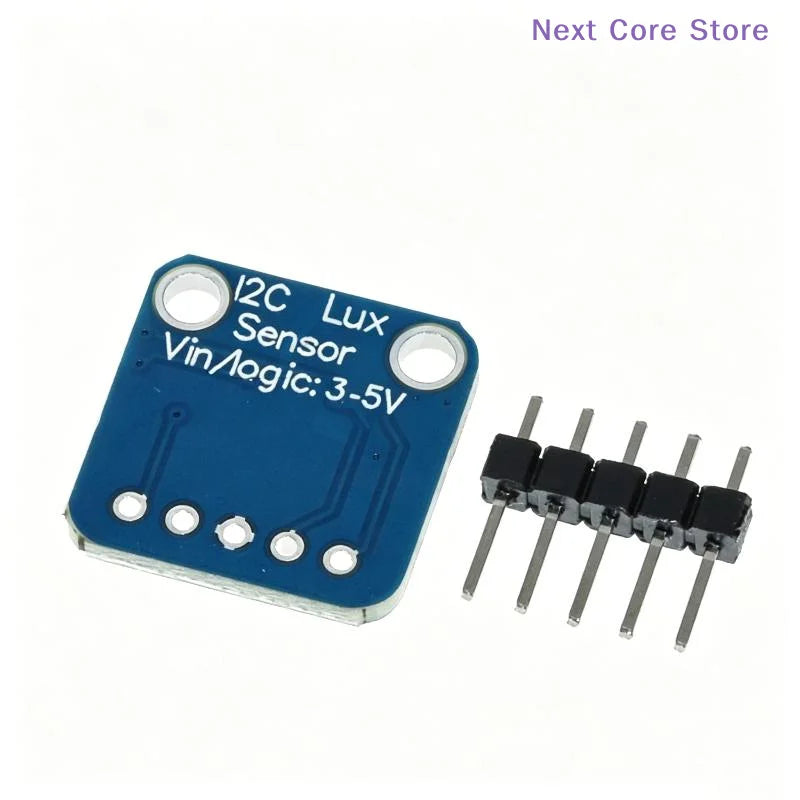

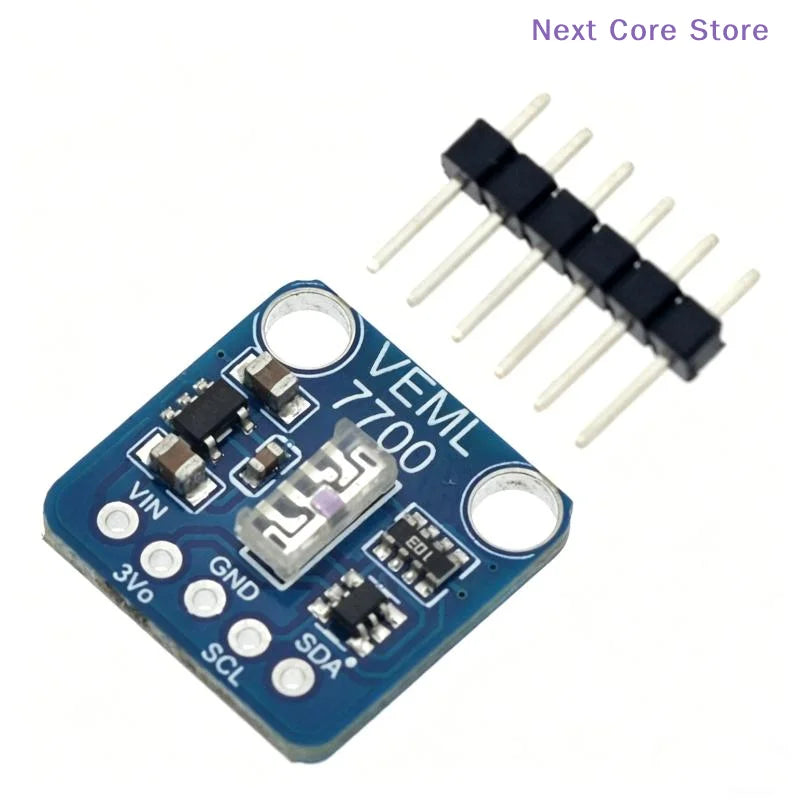

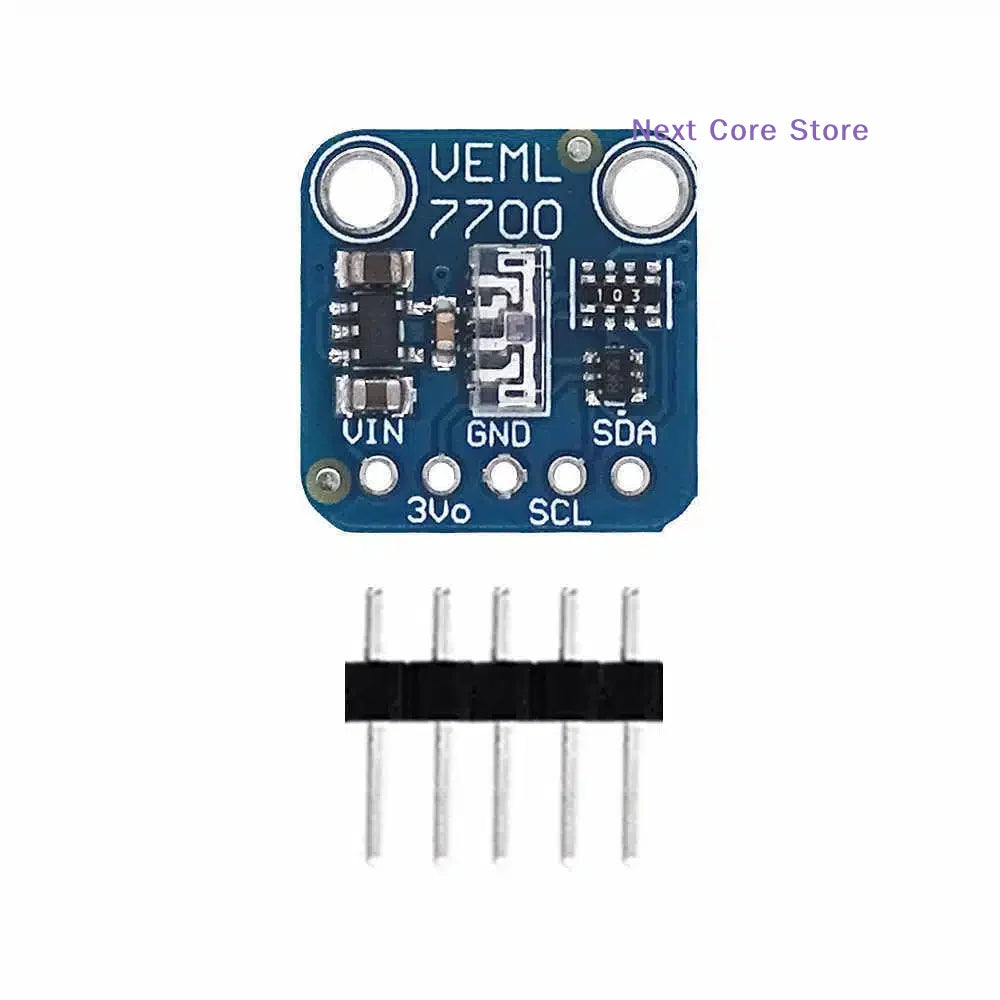

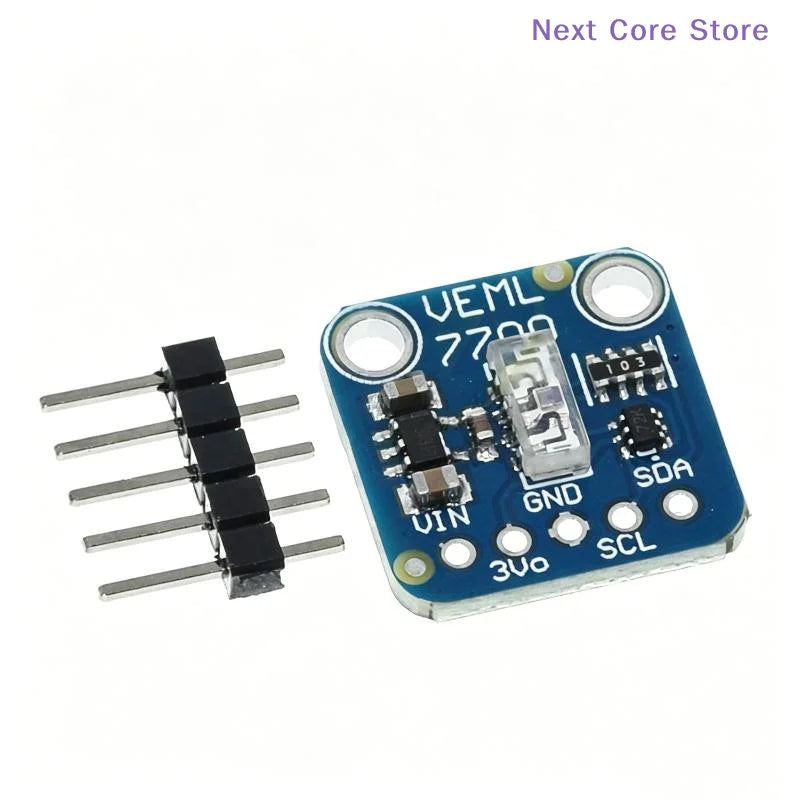

VEML7700 Ambient Light Sensor Module – 120K Lux, I2C Interface

Measure ambient light with exceptional precision using the VEML7700 Ambient Light Sensor Module. With an ultra-wide detection range of 0 to 120,000 lux and a resolution of just 0.0036 lx/ct, this compact sensor board is ideal for makers, engineers, and hobbyists working with Raspberry Pi, Arduino, or any microcontroller supporting I2C communication.

Featuring Vishay's proprietary FiltronTM technology, the sensor's spectral sensitivity closely mimics the human eye's response to visible light — making readings accurate and meaningful for real-world applications. The integrated 0-TrimTM technology keeps output tolerance below 10%, ensuring consistent, reliable data.

Made in Mainland China.

Key Features

Wide Detection Range: 0 lx to 120,000 lx — suitable for everything from near-dark environments to bright outdoor sunlight
High Resolution: 0.0036 lx/ct for fine-grained light measurements
FiltronTM Technology: Spectral response closely matches the human eye
I2C / IIC Gravity Interface: Simplified wiring and easy integration with Raspberry Pi, Arduino, and similar platforms
Wide Voltage Support: Compatible with both 3.3V and 5V systems
Ultra-Low Power: Only 45µA working current; 0.5µA in shutdown mode — great for battery-powered projects
Industrial Temperature Range: -25°C to +85°C for reliable operation in harsh environments

Technical Specifications

Supply Voltage: 3.3V – 5V
Working Current: 45µA
Shutdown Mode Current: 0.5µA
Measurement Range: 0 – 120,000 lx
Resolution: 0.0036 lx/ct
Interface: I2C / IIC (Gravity Interface)
Operating Temperature: -25°C to +85°C
Dimensions: 16.5 × 16.5 mm
Material: Plastic + Metal
Package Contents: 1 × VEML7700 Sensor Module

Brightness Reference Guide

Night: 0.001 – 0.02 lx
Moonlit Night: 0.02 – 0.3 lx
Cloudy Room: 5 – 50 lx
Cloudy Outdoor: 50 – 500 lx
Sunny Indoor: 100 – 1,000 lx
Reading Illumination: 50 – 60 lx
Summer Noon Sunlight: ~100,000 lx

Typical Applications

Industrial automation and smart lighting control
Raspberry Pi and Arduino DIY electronics projects
Automatic display brightness adjustment
Environmental monitoring stations
Smart home and IoT devices

Frequently Asked Questions

Q: Is the VEML7700 sensor module compatible with Raspberry Pi?

A: Yes! The VEML7700 ambient light sensor module uses the I2C (IIC) Gravity interface and supports both 3.3V and 5V power, making it fully compatible with Raspberry Pi, Arduino, and most other common microcontroller platforms. Simply connect via the I2C bus and start reading lux values immediately.

Q: What is the detection range of the VEML7700 sensor?

A: The VEML7700 sensor module measures ambient light from 0 lx (complete darkness) up to 120,000 lx (bright direct sunlight), with a high resolution of 0.0036 lx/ct. This makes it one of the widest-range, most accurate ambient light sensors available for DIY and industrial projects.

Q: Does this sensor support low-power operation?

A: Absolutely. The VEML7700 module draws only 45µA during normal operation and drops to just 0.5µA in shutdown mode, making it highly suitable for battery-operated and energy-efficient IoT devices.

Q: What does the package include?

A: Each order includes 1 × VEML7700 Ambient Light Sensor Module (16.5 × 16.5 mm). No batteries are required. Please note that the actual product color may vary slightly from images due to monitor display differences, and minor measurement tolerances apply.
