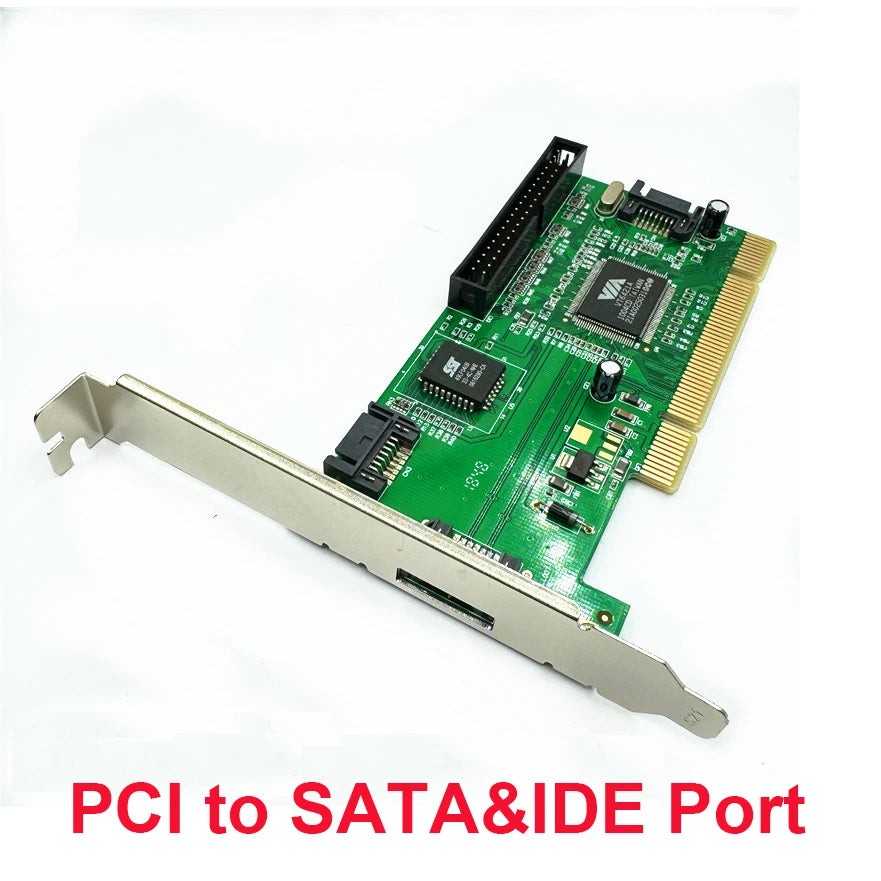

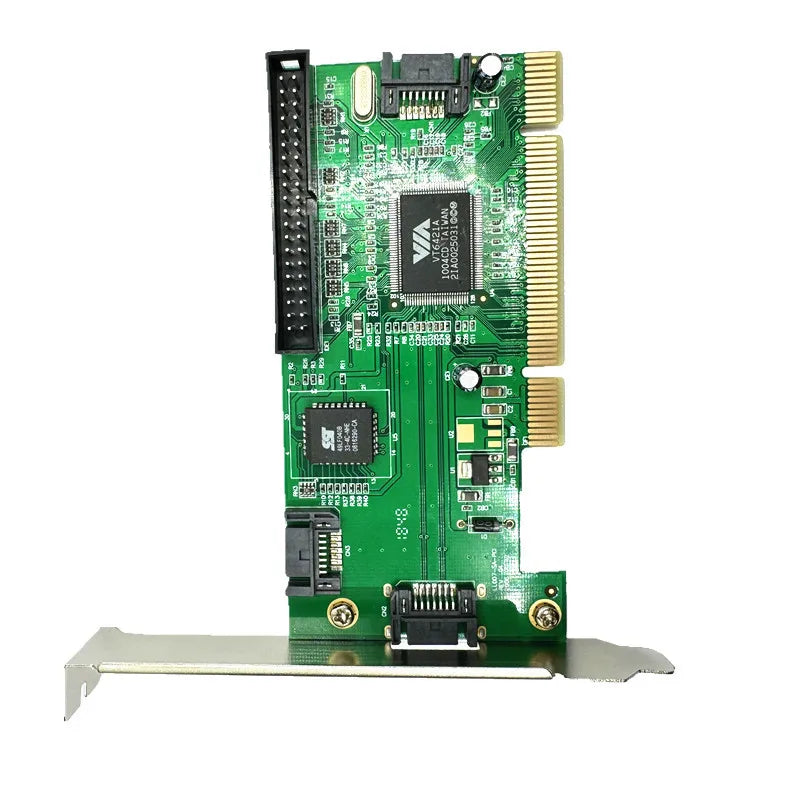

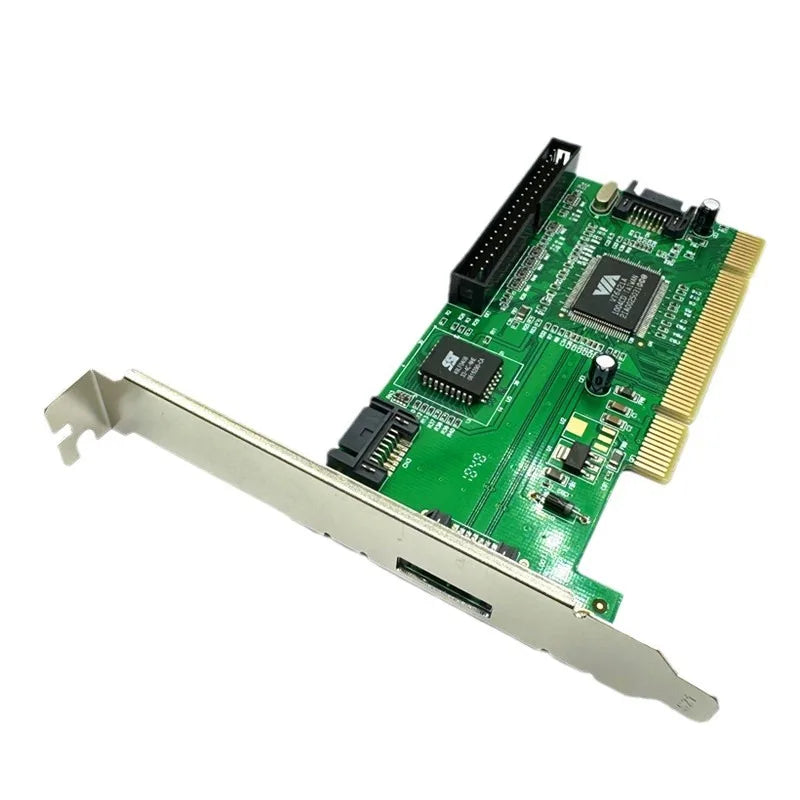

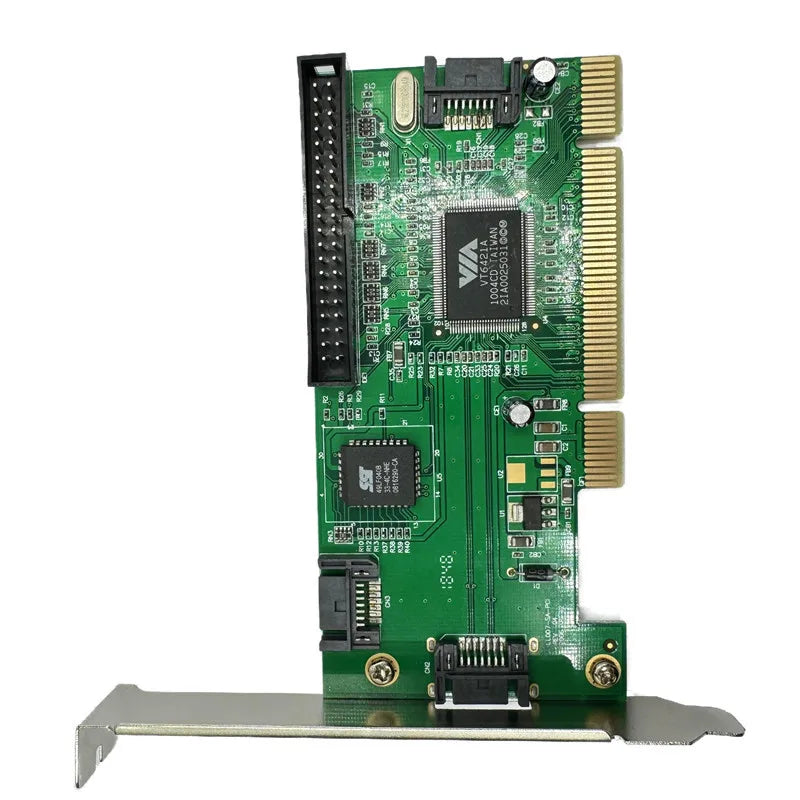

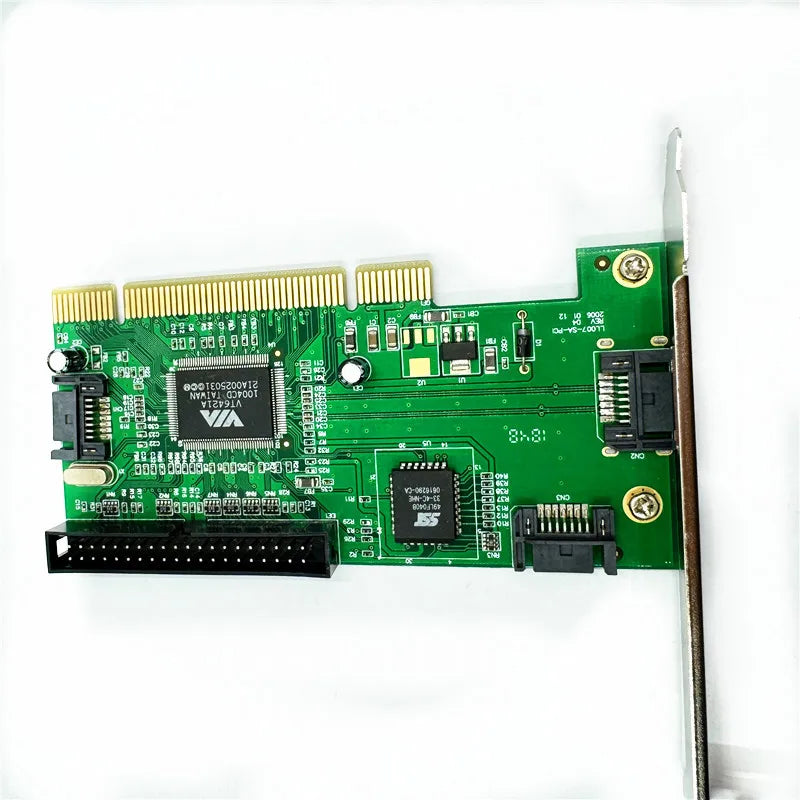

VIA6421 PCI to SATA & PATA Hard Disk Controller Card
Upgrade your desktop PC's storage capabilities with the VIA6421 PCI to SATA & PATA Dual Channel Adapter Card. Powered by the reliable VIA VT6421 chipset, this internal expansion card adds full SATA and Ultra ATA/133 support to any standard PCI slot — making it the ideal solution for builders, upgraders, and enthusiasts who need more storage connectivity without replacing their entire system.
Key Advantages

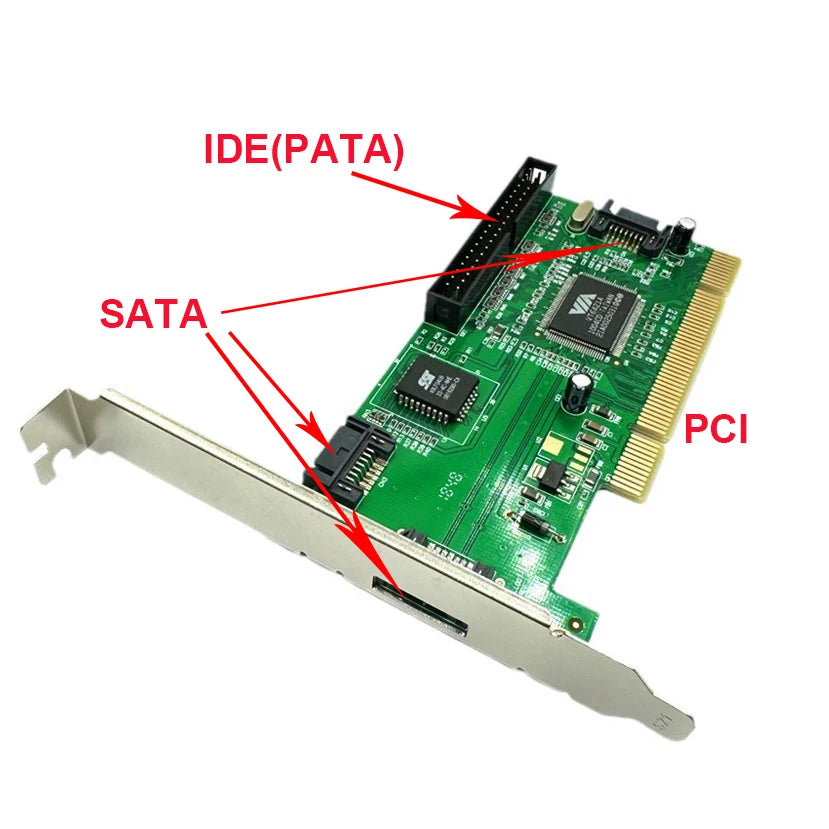

- Flexible Connectivity: Supports both Serial ATA (SATA) and Ultra ATA/133/100/66 (PATA/IDE) interfaces, giving you complete freedom over your storage configuration.
- Outstanding Transfer Speeds: Dual-channel SATA delivers transfer rates of up to 150 MB/s per channel, surpassing older IDE interfaces. Ultra DMA-133 provides up to 133 MB/s on the IDE channel.
- RAID Support: Supports RAID 0, RAID 1, and JBOD configurations, allowing you to maximize storage performance, data redundancy, or simply combine drives as a single volume.
- Hot Swap Compatible: Supports hot swapping for connected SATA devices — swap drives without powering down your system.
- Compact & Easy Installation: Simplified cabling with smaller SATA connectors makes installation straightforward, even in compact PC cases.
- Backward Compatible: Compatible with Serial ATA specification 1.0 and PCI Local Bus specification 2.2 for broad system compatibility.
Technical Specifications
- Model: VIA6421 (VT6421 Chipset)
- Interface: PCI (32-bit, 33 MHz)
- SATA Channels: 2 × SATA (up to 150 MB/s per channel)
- IDE/PATA Channel: 1 × Dual-device Ultra ATA/133
- RAID Modes: RAID 0, RAID 1, JBOD
- Supported Modes: ATA PIO Mode 4, Multi-Word DMA Mode 2, UltraDMA Mode 6 (ATA/ATAPI-6)
- PCI Compatibility: PCI 2X mode and native PCI mode; PCI Local Bus Spec v2.2
- Power Supply: 3.3V PCI/IDE operating voltage; 2.5V SATA/oscillator voltage
- Package: 0.22μm low-power CMOS, 128-pin PQFP (14×20mm)
- BIOS Expansion: Supports external FLASH or EEPROM for BIOS and RAID functionality
- Installation: Internal PCI slot
- Made in: Mainland China
What's in the Box
- 1 × VIA6421 PCI to SATA & PATA Controller Card
Related Products You May Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: How many drives can I connect using the VIA6421 PCI SATA PATA card?
A: The VIA6421 card supports up to 2 SATA devices via its dual-channel SATA interface and up to 2 IDE/PATA devices via its single-channel Ultra ATA/133 controller, giving you a total of up to 4 storage devices connected at once.
Q: What RAID configurations does the VIA6421 card support?
A: The card supports RAID 0 (striping for performance), RAID 1 (mirroring for redundancy), and JBOD (Just a Bunch of Disks), giving you flexibility in how you manage your storage array.
Q: Is the VIA6421 PCI card compatible with modern desktop PCs?
A: The VIA6421 requires a standard 32-bit PCI slot. It is best suited for older or mid-range desktop motherboards that include PCI slots. It is not compatible with PCIe (PCI Express) slots. Please verify your motherboard has a standard PCI slot before purchasing.
Q: Does this card support hot swapping?
A: Yes, the VIA6421 supports hot swapping for SATA-connected devices, allowing you to connect or disconnect SATA drives while the system is running — ideal for flexible storage management.
