WALFRONT HS2234 Non-Contact Digital Tachometer | RPM Meter
WALFRONT HS2234 Non-Contact Digital Tachometer | RPM Meter

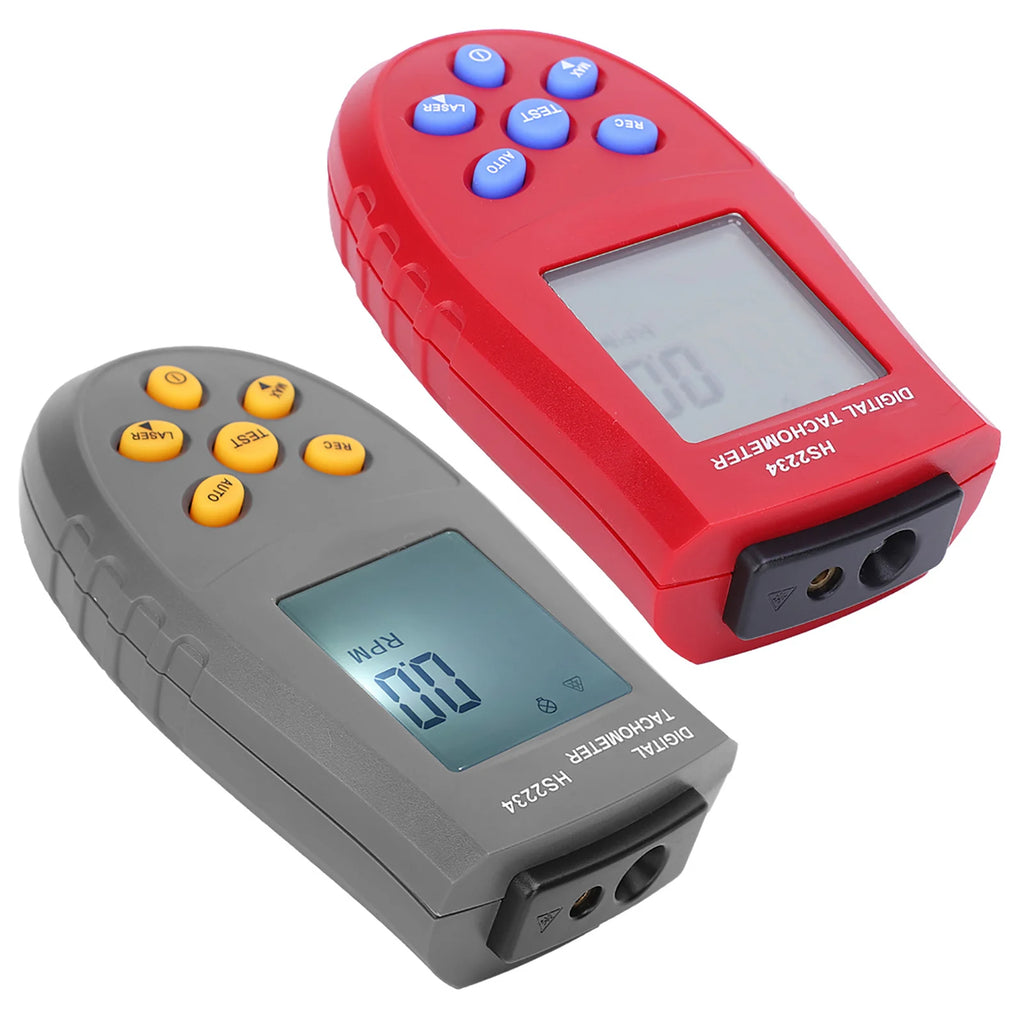

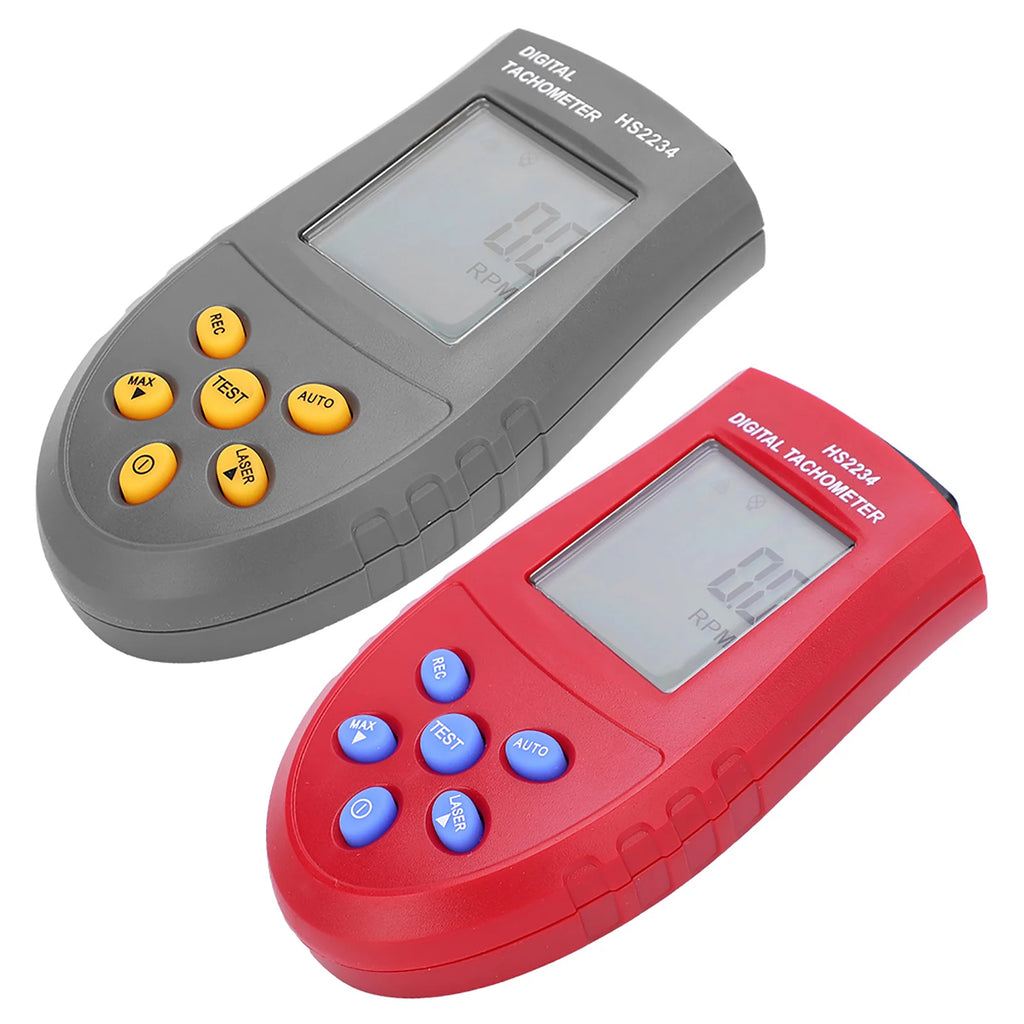

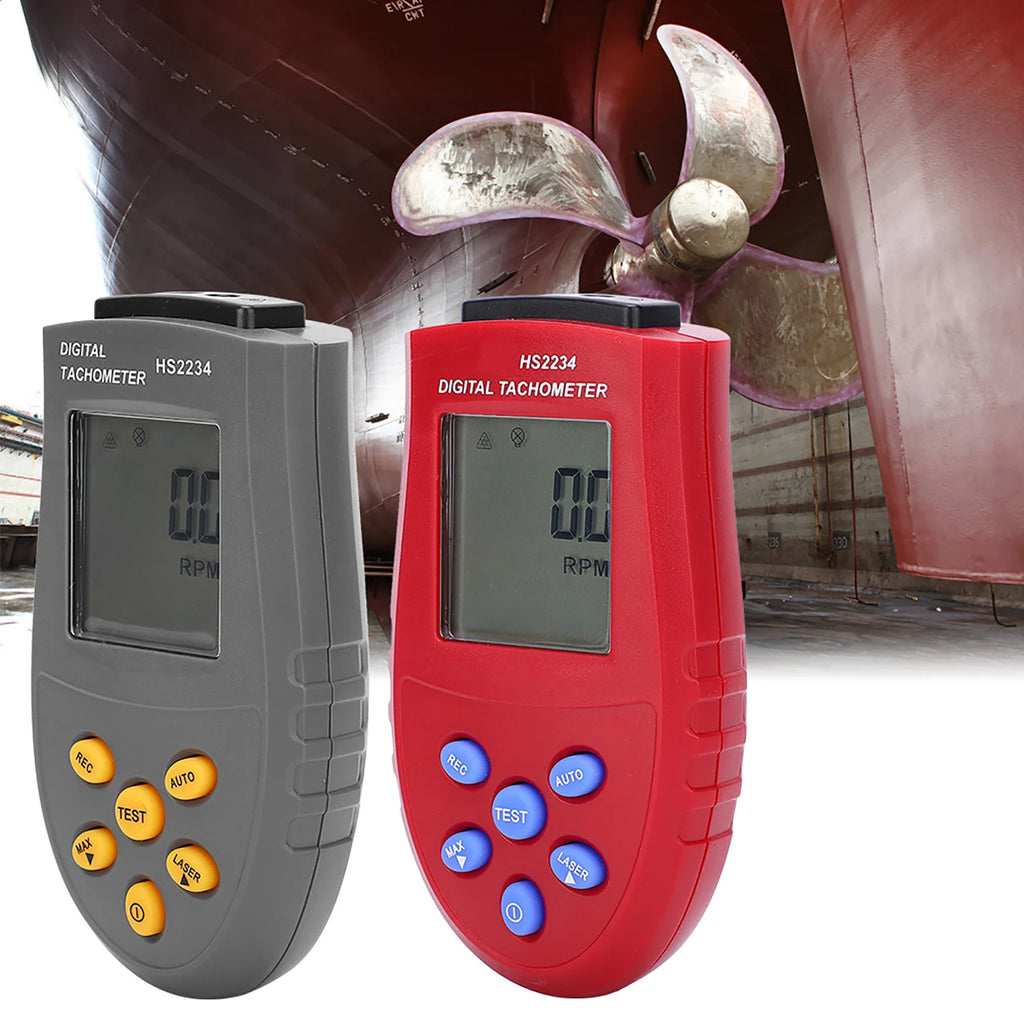

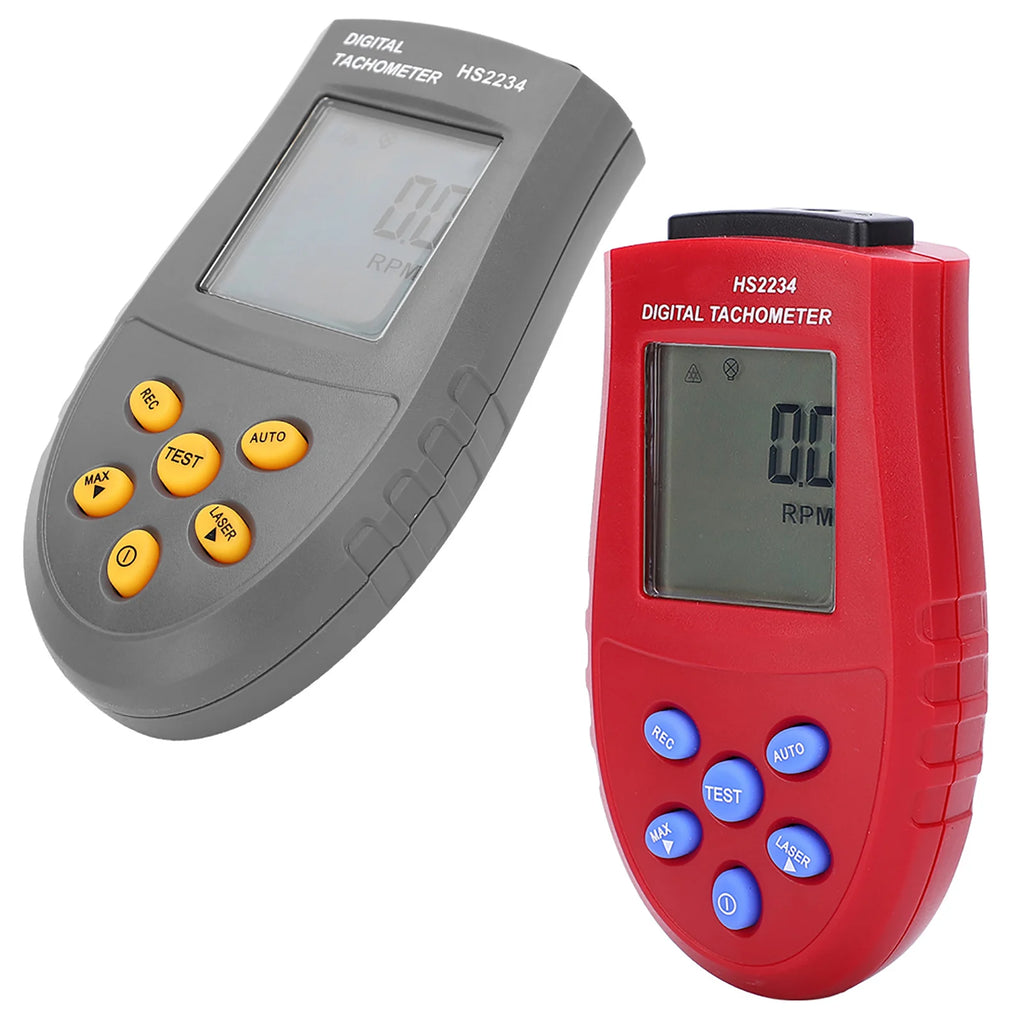

WALFRONT HS2234 Non-Contact Digital Tachometer

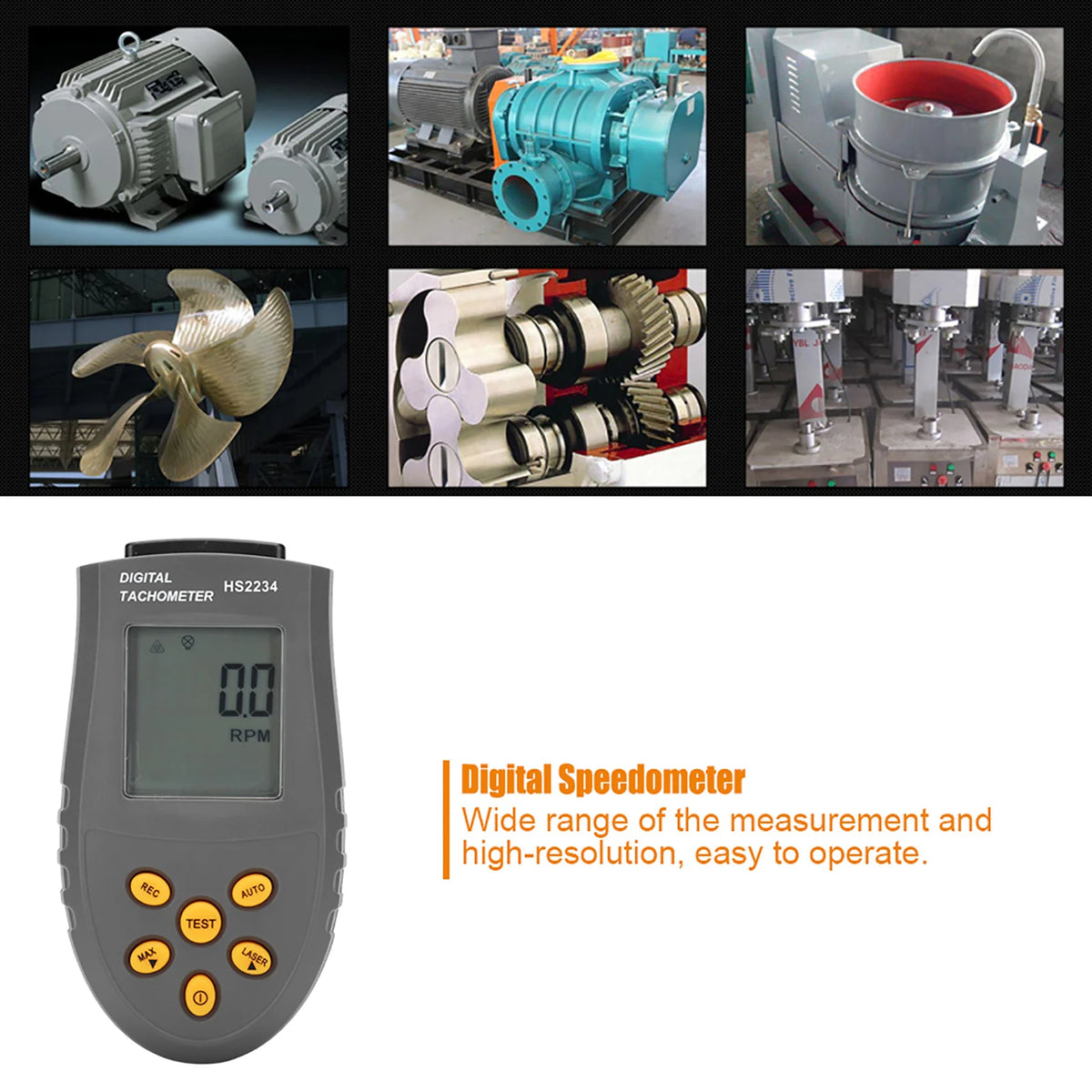

Measure rotational speed quickly and accurately with the WALFRONT HS2234 Non-Contact Digital Tachometer. Featuring a wide RPM measuring range, a bright LCD backlit display, and a durable ABS body, this handheld tachometer is perfect for mechanics, engineers, hobbyists, and industrial technicians who need reliable speed readings without ever touching the rotating surface.
Key Features
- Non-Contact Measurement: Safely measure RPM from a distance of 50–500 mm — no need to touch the spinning surface.
- Wide Measuring Range: Covers 2.5 to 99,999 RPM/second with a resolution of 0.1 RPM for precise readings.
- 5-Digit LCD Backlit Display: Easy to read in both bright and low-light conditions, including nighttime use.
- High Accuracy: Measurement accuracy of ±0.05% with a fast 0.5-second sampling rate for responsive readings.
- Durable ABS Construction: Corrosion-resistant and oxidation-resistant housing for long-lasting performance in demanding environments.
- Quartz Crystal Time Base: Ensures stable and consistent measurement accuracy over time.
- Available in Two Colors: Choose Black or Red to suit your preference.
- Compact & Portable: Lightweight handheld design for easy use in the field or workshop.
Specifications
| Model | HS2234 |
| Material | ABS Plastic |
| Colors Available | Black, Red |
| Effective Measuring Distance | 50–500 mm |

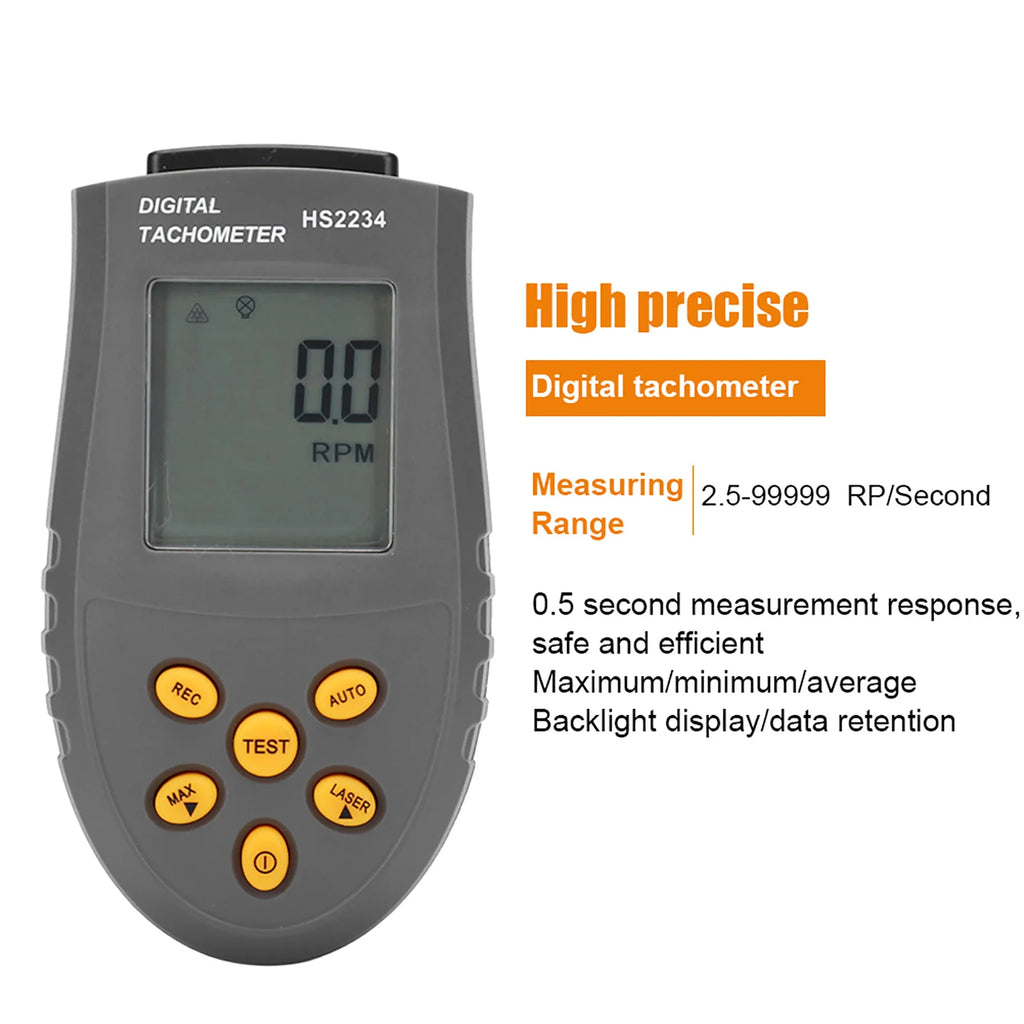

| Measuring Range | 2.5–99,999 RPM/second |
| Resolution | 0.1 RPM |
| Accuracy | ±0.05% |
| Sampling Rate | 0.5 seconds |
| Display | 5-digit LCD with backlight |
| Time Base | Quartz Crystal |
| Operating Temperature | 0°C – 50°C |
| Storage Temperature | -20°C – 70°C |
| Power | 2 x AAA batteries (not included) |
| Power Consumption | ~25–40 mA |

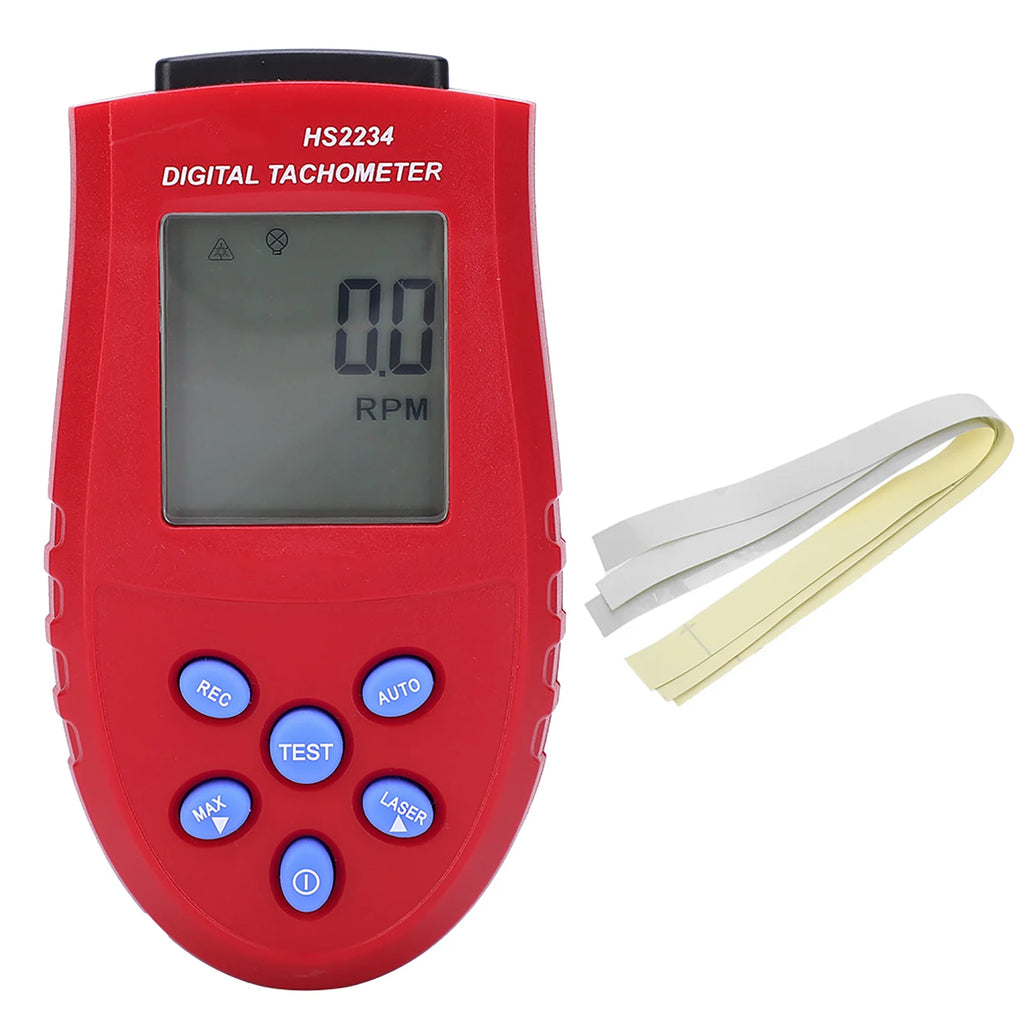

What's in the Box
- 1 x HS2234 Tachometer
- 1 x User Manual
- 3 x Reflective Tape Strips
Made in Mainland China.
Looking for other handy tools and gadgets? Check out our 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel, our 10-Pc Hex Nut & Bolt Extractor Kit, or our 105° Right Angle Driver with 1/4" Hex Screwdriver Bit.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Does the WALFRONT HS2234 tachometer require physical contact with the rotating object?
A: No — the HS2234 is a non-contact tachometer. It uses optical sensing technology to measure RPM from a distance of 50 to 500 mm, making it safe and convenient to use on fast-spinning motors, fans, engines, and other rotating machinery without touching them.
Q: What batteries does the HS2234 digital tachometer use, and are they included?
A: The tachometer runs on 2 x AAA batteries. Please note that batteries are not included in the package — you will need to supply your own before first use.
Q: What is the measuring range of the HS2234 digital tachometer?
A: The HS2234 measures from 2.5 up to 99,999 RPM/second with a resolution of 0.1 RPM and an accuracy of ±0.05%, making it suitable for a very wide range of applications from slow-turning machinery to high-speed motors.
Q: Can I use this tachometer in dark or low-light environments?
A: Yes. The HS2234 features a 5-digit LCD display with built-in backlight, allowing you to read measurements clearly even in dim or nighttime conditions.
