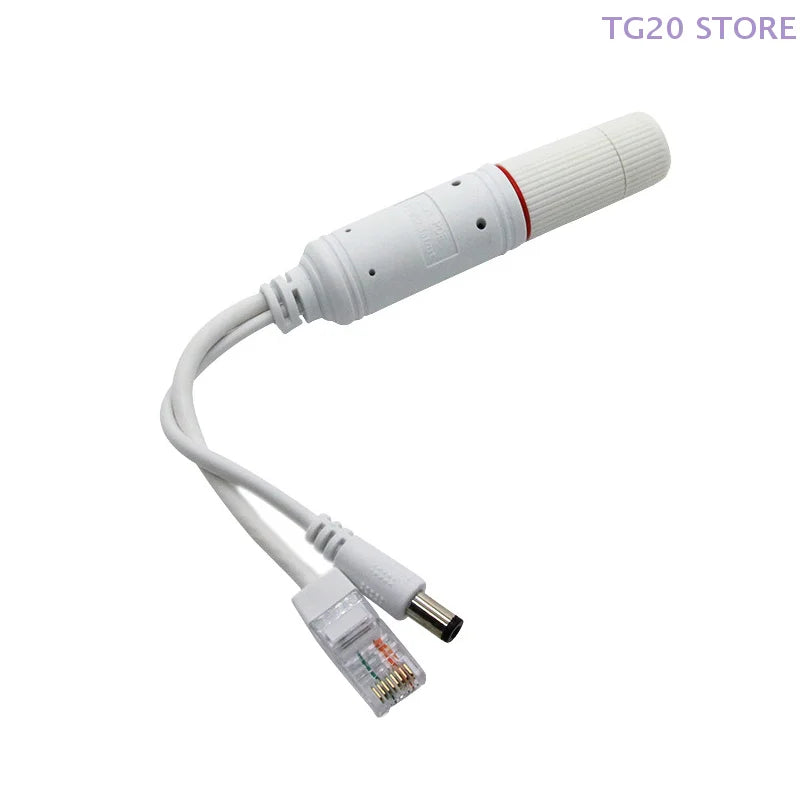

Waterproof POE Splitter – 48V to 12V Power Supply Module for IP Cameras
Simplify your IP camera installation with this Waterproof POE Splitter Adapter. Designed to work seamlessly with any standard POE switch, this module converts 48V–52V DC input to a clean 12V 2A output — powering your IP cameras directly through a single network cable. No separate power runs, no messy wiring, just a clean and cost-effective setup.
Built for indoor and outdoor use, the splitter is housed in a durable ABS shell and ships with a rainproof cover kit, making it fully capable of withstanding outdoor weather conditions. Whether you're deploying a single camera or building a full surveillance network, this POE splitter streamlines the process and cuts deployment costs significantly.
Made in Mainland China.
Key Features
- IEEE 802.3af/at Compliant: Full compatibility with standard POE switches for plug-and-play setup
- 48V–52V DC Input / 12V 2A Output: Reliable power conversion with above 99% efficiency
- 15W High Power Output: Sufficient for most standard IP cameras
- 100m / 328ft Transmission Range: Supports long-distance network cable runs
- 18kV Voltage Protection: Built-in surge protection for long-lasting, stable operation
- Rainproof Cover Included: Outdoor-ready with an included weatherproof kit
- Single Cable Installation: Combines data and power on one network cable, reducing deployment costs
Specifications
| Item Type | POE Splitter |
| Material | ABS |
| POE Protocol | IEEE 802.3af/at |
| Input Voltage | 48V – 52V DC |
| Output Voltage | 12V 2A |
| Power Output | 15W |
| Conversion Efficiency | Above 99% |
| Supported Pairs | 1236 / 4578 |
| Max Cable Distance | 100m / 328.1ft |
| Working Temperature | -10°C to 45°C |
| Voltage Protection | 18kV |
What's in the Box
- 1 × POE Splitter

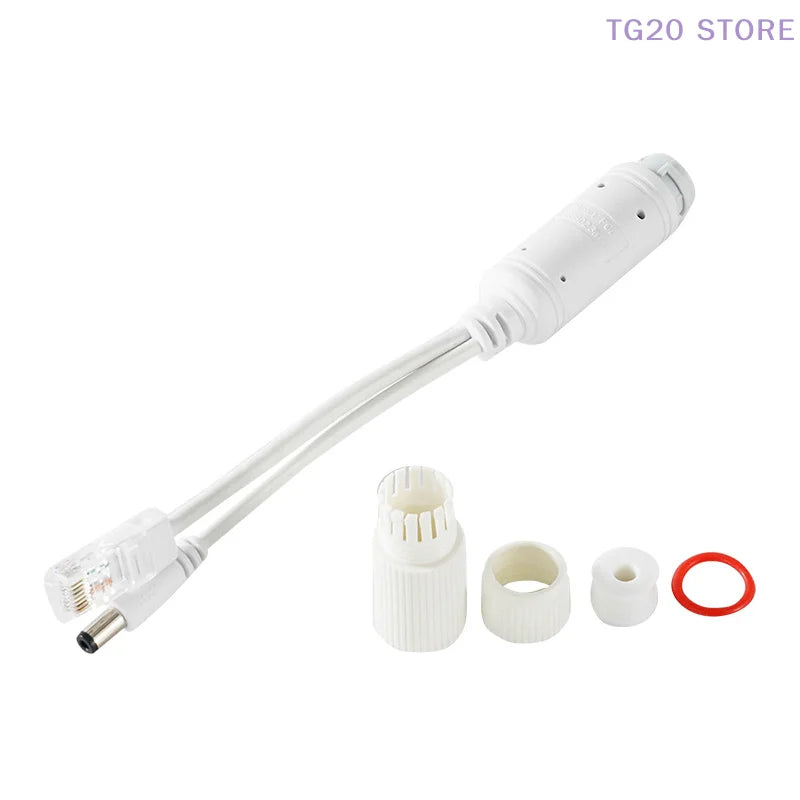

- 1 × Waterproof Cover Kit
Related Products You May Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Is this POE splitter compatible with all POE switches?
A: Yes. This POE splitter fully supports the IEEE 802.3af/at standard, which means it is compatible with the vast majority of standard POE switches available on the market. Simply connect your POE switch to the splitter and your IP camera, and you're ready to go.
Q: Can I use this POE splitter outdoors?
A: Absolutely. The included rainproof cover kit makes this splitter suitable for outdoor environments. It protects the connection point from rain and moisture, so you can install it outside without concern about weather exposure.
Q: What is the maximum cable distance supported?
A: This POE splitter supports a maximum transmission distance of 100 meters (328.1 feet) over a standard network cable, making it ideal for long-distance IP camera deployments across large properties or facilities.
Q: What output voltage and current does this splitter provide?
A: The splitter outputs 12V at 2A (up to 15W), which is suitable for powering most standard 12V IP security cameras directly through a single network cable — no separate power adapter needed.
