XH-M802 Passive Tone Board – Treble, Bass & Volume PCB

XH-M802 Passive Tone Board – 2-Channel Treble, Bass & Volume Control

Take full command of your audio signal with the XH-M802 Passive Tone Control Board. Designed for DIY audio enthusiasts and electronics hobbyists, this compact PCB lets you independently adjust treble, bass, and overall volume before the signal reaches your amplifier board — giving you cleaner, more refined sound output tailored to your setup.

Unlike active tone circuits, this passive tuning board requires no external power supply. It uses an RC (resistor-capacitor) filter network to sculpt the frequency response of your audio signal, filtering out unwanted highs or lows before amplification. It's an ideal front-end solution for subwoofer projects, custom speaker builds, or any 2-channel amplifier system.

Made in Mainland China.

Key Features

• Passive Design: No power supply needed — works entirely through the RC capacitor filter network

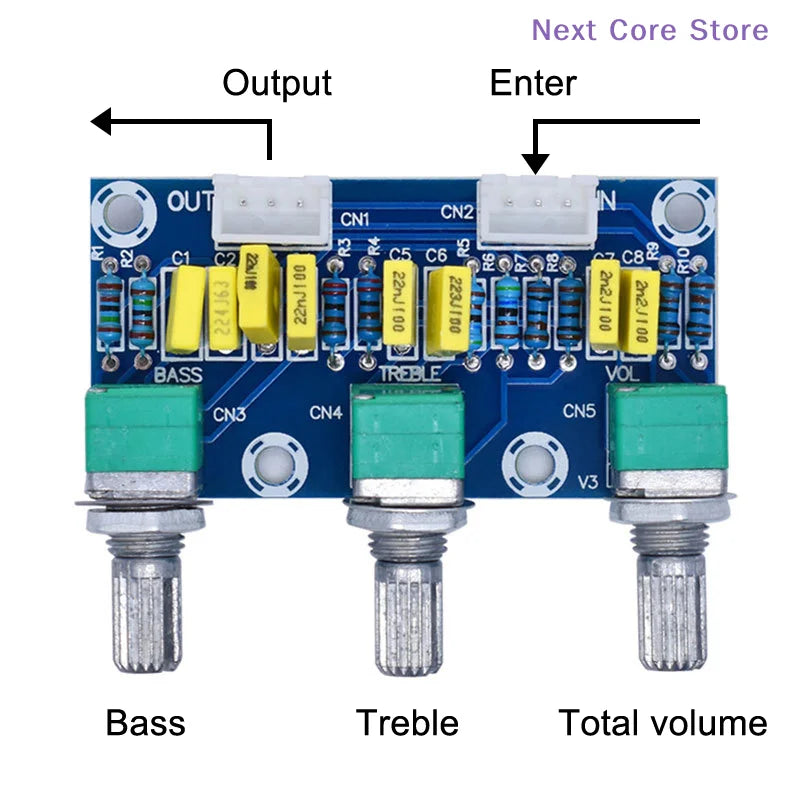

• 3-Knob Control: Independent adjustments for treble, bass, and master volume
• 2-Channel Stereo: Supports stereo left/right audio signal paths
• XH2.54-3P Connector: Standard socket type for easy integration with amplifier boards

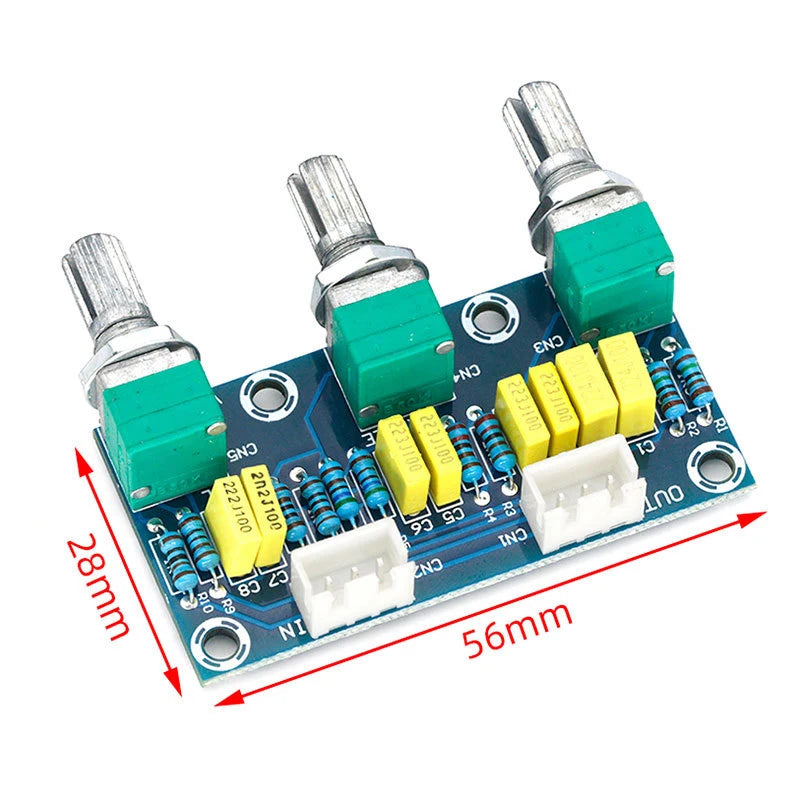

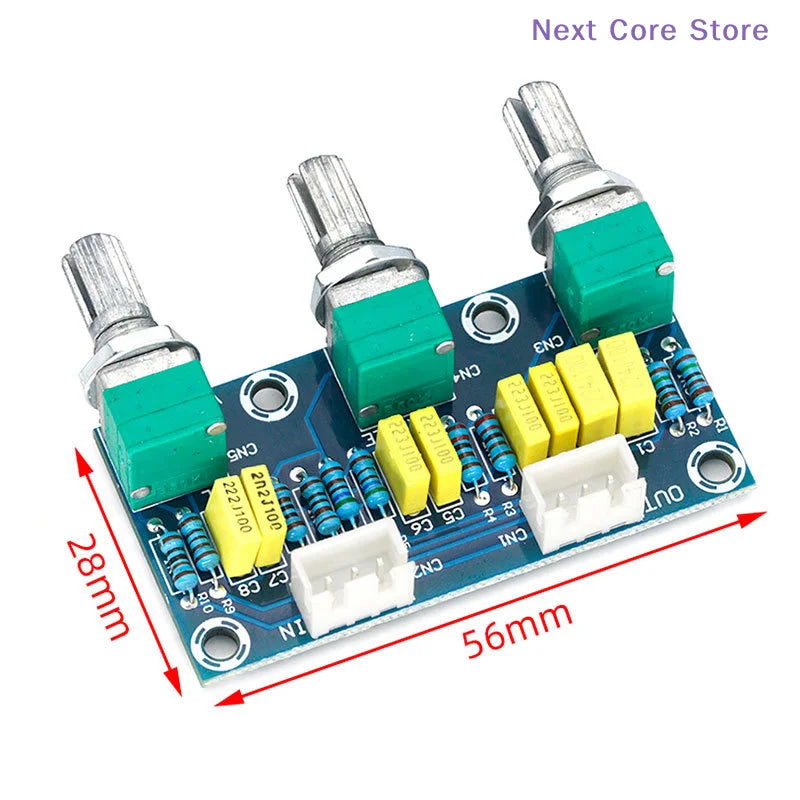

• Compact Form Factor: Measures just 56 × 28 mm — fits into tight enclosures and DIY builds
• Metal construction for durability and stable knob operation
• Knob spacing: 22.5 mm for comfortable manual adjustment

Specifications

What's in the Box

• 1× XH-M802 Passive Tone Control PCB Board
