YF-4 Digital Cycle Timer Relay Module – Adjustable DC 12V

YF-4 Digital Cycle Timer Relay Module – Adjustable DC 12V

$26.38 $31.21
Current Range12V

YF-4 Adjustable Cycle Delay Timer Relay Module – DC 12V Digital Display

Take precise control of your automated systems with the YF-4 Digital Cycle Timer Relay Module. Featuring a clear dual digital display and 6 versatile timing functions, this compact relay board lets you program delay-on and delay-off cycles from as short as 0.1 seconds all the way up to 999 hours — making it ideal for hobbyists, engineers, and DIY automation enthusiasts alike.

Made in Mainland China.

Key Features

  • 6 Built-In Timing Functions — covers delay-on, delay-off, single-cycle, and repeat-cycle modes to suit a wide range of automation needs
  • Dual Digital Display — simultaneous readout of T1 (delay ON) and T2 (delay OFF) settings for at-a-glance monitoring
  • Wide Timing Range — adjustable from 0.1 seconds to 999 hours via decimal-point position selection
  • 5A AC/DC Load Control — compatible with solenoid valves, water pumps, motors, LED/string lights, and more
  • 4-Button Interface — intuitive Setting, Increase, Decrease, and Confirm buttons for fast, accurate programming
  • DC 12V Input — reliable low-voltage operation for bench setups, control panels, and embedded projects

Function Modes

  • P1-1: Relay pulls in after T1 delay
  • P1-2: Relay releases after T1 delay
  • P1-3: Relay pulls in after T1, releases after T2
  • P1-4: Relay releases after T1, pulls in after T2
  • P1-5: Repeating cycle — pulls in after T1, releases after T2 (loops)
  • P1-6: Repeating cycle — releases after T1, pulls in after T2 (loops)

Timing Range Guide

Display Format Timing Range
XX.X 0.1 sec – 99.9 sec
XXX 1 sec – 999 sec
XXX. 1 min – 999 min
XX.X. 1 hr – 999 hr

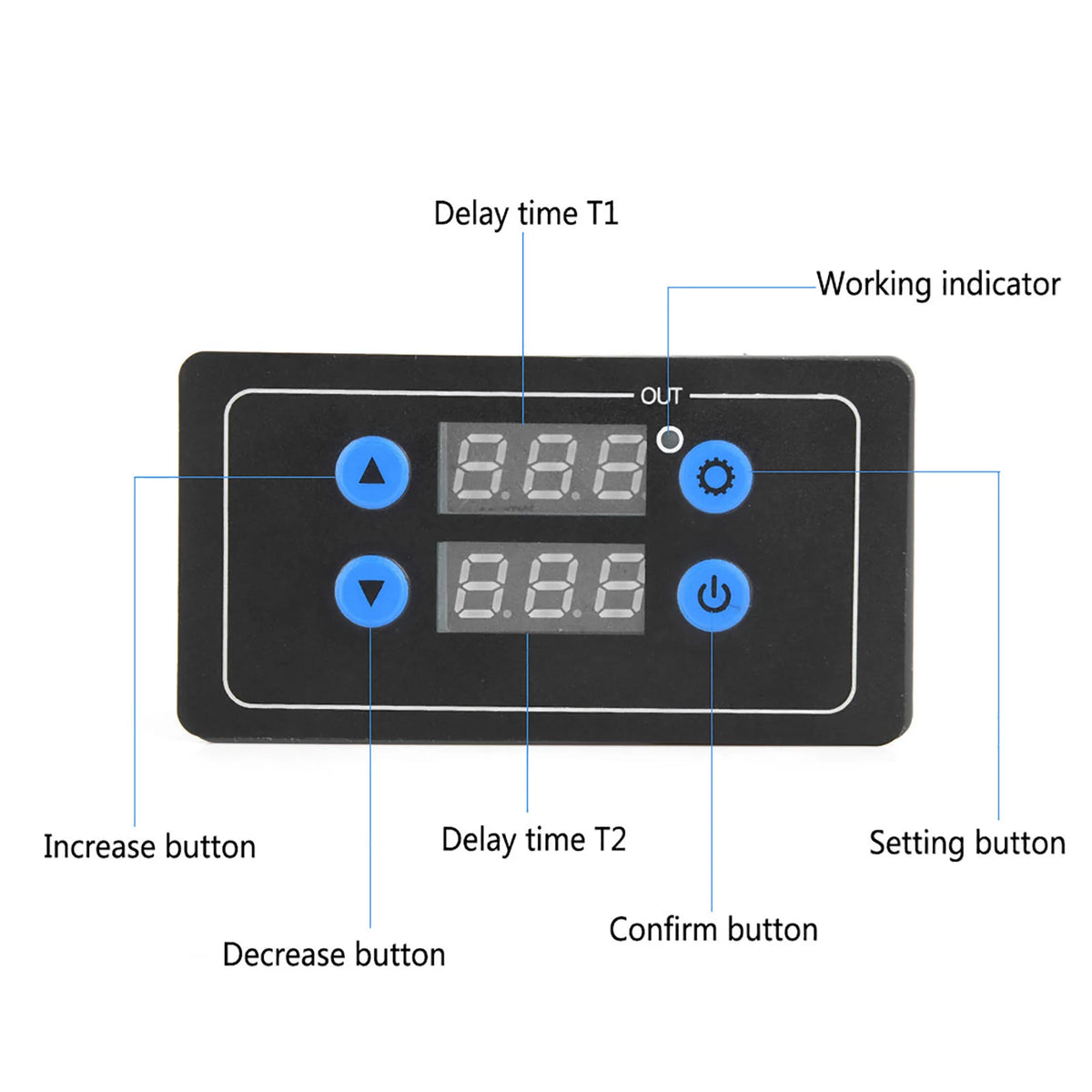

Button Controls

  • Setting Button: Long press (2 sec) to enter function settings; short press to cycle through parameters
  • Increase Button: Increment time value
  • Decrease Button: Decrement time value
  • Confirm Button: Start / Stop timing

Specifications

  • Model: YF-4
  • Input Voltage: DC 12V
  • Max Load: 5A (AC or DC)
  • Timing Range: 0.1 sec – 999 hours
  • Display: Dual digital LED
  • Functions: 6 programmable modes

What's in the Box

  • 1 × YF-4 Cycle Timer Relay Module

Note: New and old hardware revisions of this module may be shipped interchangeably. Please confirm you are comfortable with either version before ordering.

You May Also Like

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What voltage does the YF-4 cycle timer relay module require?

A: The YF-4 timer relay module operates on a DC 12V input, making it well-suited for low-voltage control panels, automation projects, and bench testing setups.

Q: What is the maximum load the YF-4 relay can switch?

A: The YF-4 can switch up to 5A of AC or DC load, allowing it to control devices such as solenoid valves, water pumps, small motors, and string lights.

Q: Can the YF-4 run in a continuous repeating cycle automatically?

A: Yes. Functions P1-5 and P1-6 provide fully automatic repeating cycle operation — the relay alternates between its pulled-in and released states based on your T1 and T2 delay settings, running indefinitely until stopped.

Q: How do I adjust the timing range on the YF-4 module?

A: The timing range is controlled by the position of the decimal point in the display. Selecting XX.X gives a range of 0.1–99.9 seconds; XXX gives 1–999 seconds; XXX. gives 1–999 minutes; and XX.X. gives 1–999 hours.
