14AWG Solar Panel Extension Cable – Male & Female PV Connectors
14AWG Solar Panel Extension Cable – Male & Female PV Connectors

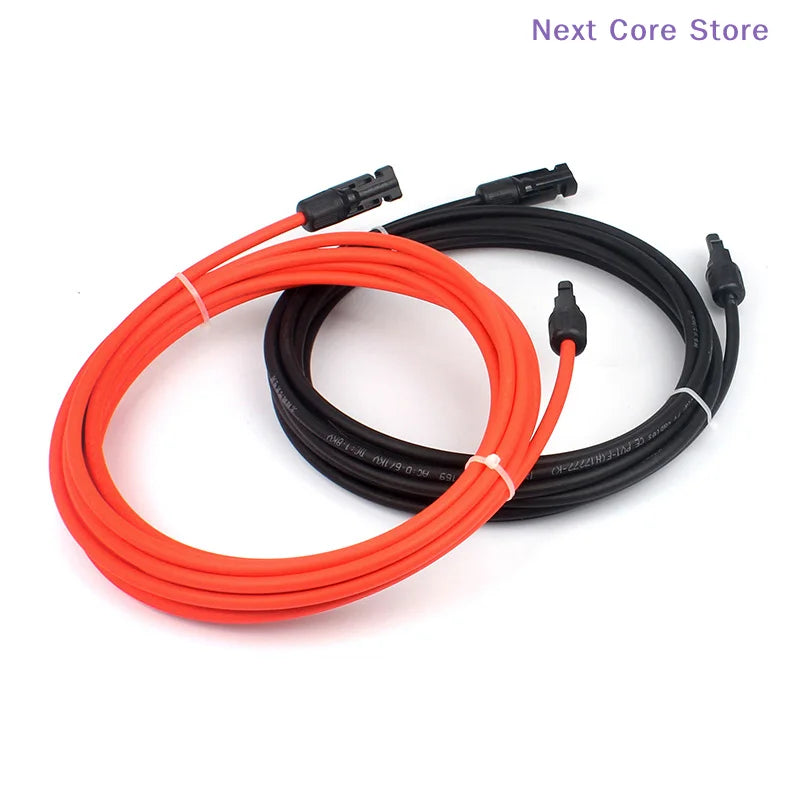

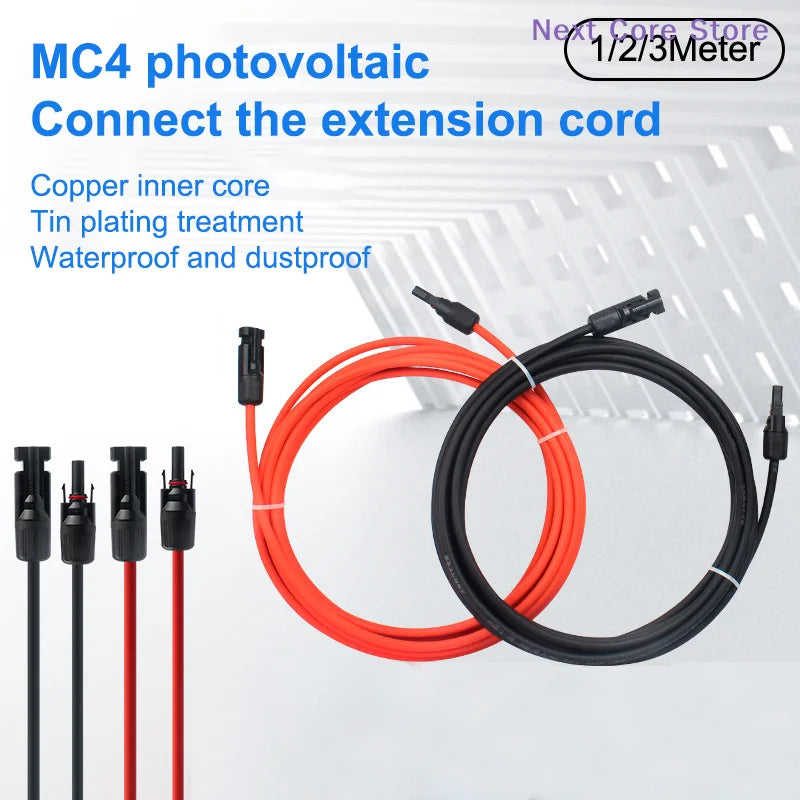

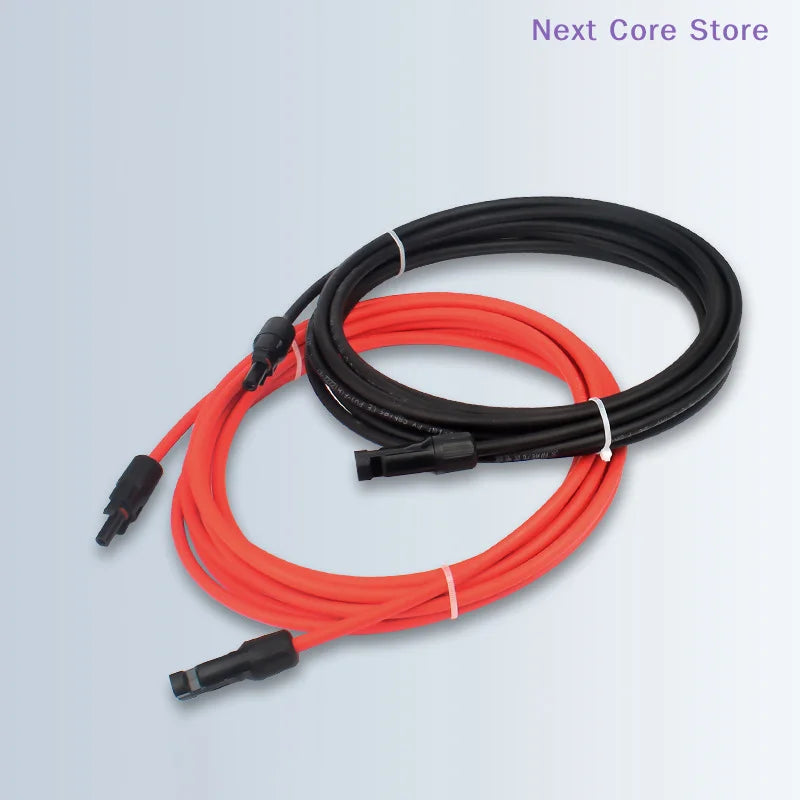

14AWG Photovoltaic Solar Panel Extension Cable with Male & Female DC Connectors
Upgrade your solar installation with this high-quality 14AWG Solar Panel Extension Cable, designed for reliable, long-lasting performance in residential, small-scale, and industrial photovoltaic (PV) systems. Rated for 1000V/1500V DC and CE certified, this cable delivers safe, efficient power transfer from your solar panels to your system components.
Key Features
- Heavy-Duty 14AWG Wire: Tinned oxygen-free copper wire core ensures excellent conductivity and long-term corrosion resistance.
- Cross-Linked Polyolefin Sheath: Durable outer jacket provides outstanding UV resistance, water resistance, ozone resistance, liquid resistance, salt resistance, and all-weather durability.
- Rated 1000V / 1500V DC: Suitable for a wide range of photovoltaic applications, from home rooftop systems to larger industrial setups.

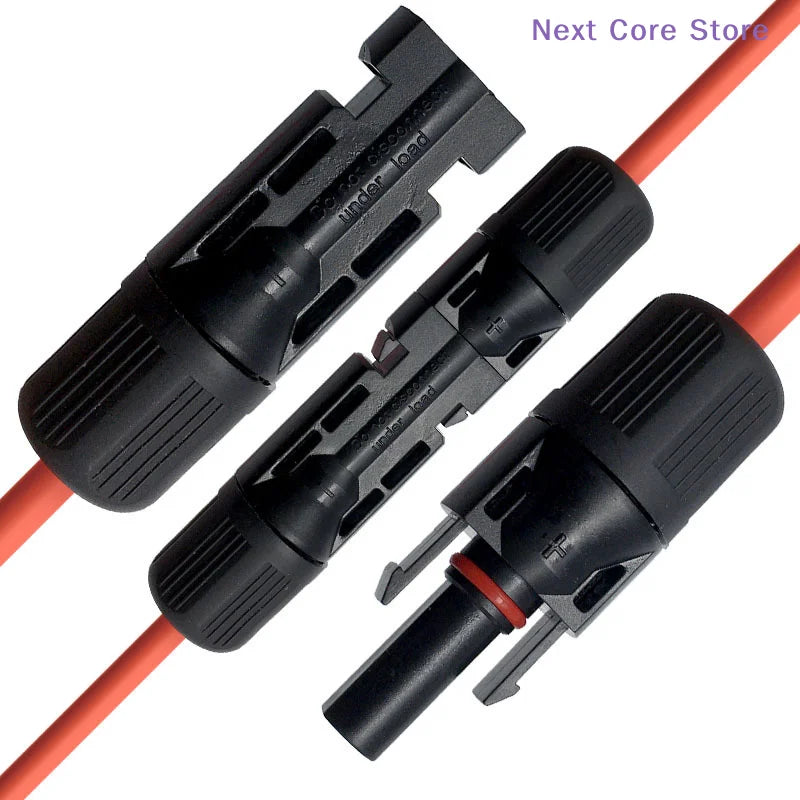

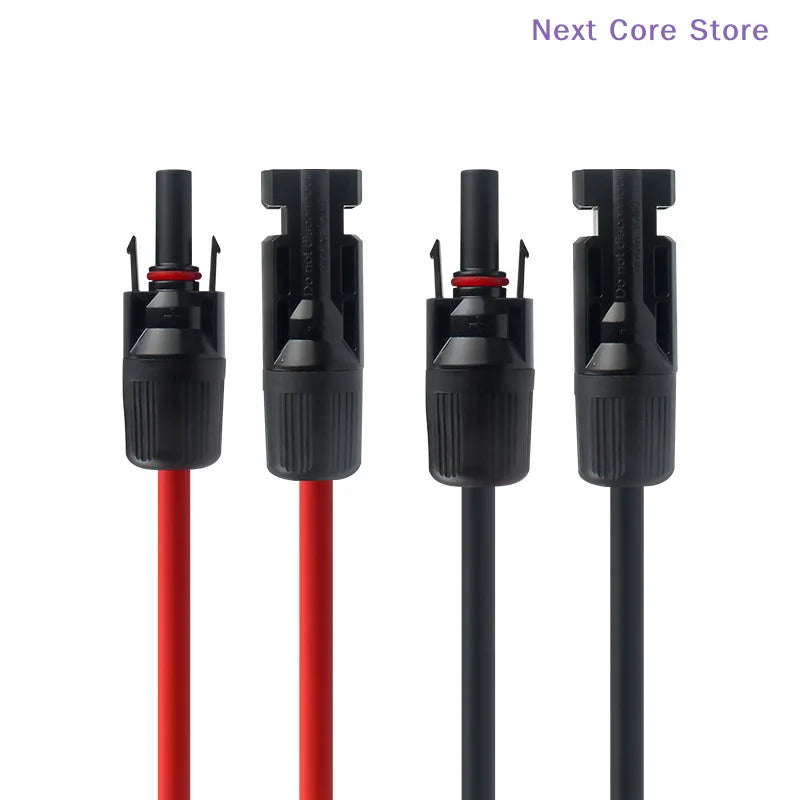

- Male & Female Connectors Included: Comes as a matched pair (one black, one red) with crimp-terminal male and female PV DC connectors for a secure, professional fit.
- PP Insulated Connector Shell: Polypropylene insulation delivers superior anti-aging and anti-ultraviolet properties for outdoor longevity.
- Dry & Power-Off Compatible: Specially engineered for professional solar panel installation in dry connection and power-off systems.
- CE Certified: Meets European safety standards for low-voltage electrical components.
- Eco-Friendly Energy Solution: Supports clean, renewable solar energy use — helping reduce carbon emissions and protect the environment.
Specifications
| Wire Gauge | 14AWG |
| Voltage Rating | 1000V / 1500V DC |
| Wire Core Material | Tinned Oxygen-Free Copper |
| Sheath Material | Cross-Linked Polyolefin |
| Connector Type | Crimp Terminal, Male & Female PV DC |
| Shell Material | PP (Polypropylene) Insulation |
| Color | Black & Red (pair) |
| Certification | CE |
What's in the Box?

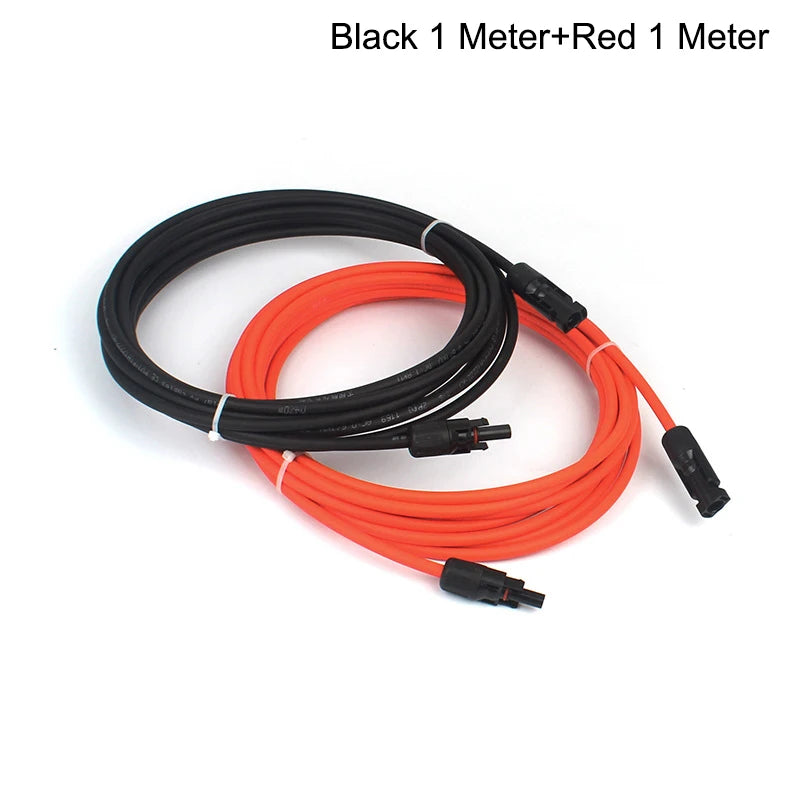

- 1x Male PV DC Connector Cable (Red)
- 1x Female PV DC Connector Cable (Black)
Made in Mainland China.
You May Also Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage rating does this solar extension cable support?
A: This 14AWG photovoltaic solar cable is rated for both 1000V and 1500V DC, making it compatible with a wide range of home, small-scale, and industrial solar PV systems.
Q: What type of connectors are included with this solar cable?
A: The package includes a matched pair of male and female PV DC crimp terminal connectors — one red and one black — designed for professional, secure solar panel connections in dry and power-off systems.
Q: Is this solar cable suitable for outdoor use?
A: Yes. The cross-linked polyolefin sheath provides excellent UV resistance, water resistance, ozone resistance, and all-weather durability, making it ideal for permanent outdoor solar panel installations.
Q: What is the wire core material used in this cable?
A: The wire core is made of tinned oxygen-free copper, which ensures superior conductivity, reduced oxidation, and long-lasting reliability in solar power applications.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
