21V Battery Protection Circuit Board – Stable, Safe & Efficient
Keep your power tools and portable electronics running smoothly with this 21V Battery Protection Circuit Board (PCB). Engineered for precise current control and built-in safety mechanisms, this compact board is the ideal upgrade or replacement for a wide range of DeWalt DCD and DCF series tools.
Made in Mainland China.
Key Features
- Stable Current Output: Precise control technology ensures consistent power delivery to connected devices, including outdoor photography lights and portable electronics.
- Efficient Heat Dissipation: PCB construction promotes low-temperature operation even under heavy loads, maintaining peak performance in high-frequency electronic environments.
- Overcharge & Over-Discharge Protection: Intelligent safeguards actively extend battery life by preventing damaging charge cycles.
- Overcurrent & Short Circuit Protection: Built-in safety mechanisms provide comprehensive protection for consumer electronics operating in complex environments.
- Space-Saving Design: Compact, tool-free installation makes this board easy to integrate into a wide variety of devices — perfect for electronics enthusiasts and DIYers.
- Multi-Battery Compatibility: Supports multiple battery types, making it a versatile solution for power tools and portable devices.
Specifications
- Material: PCB
- Voltage: 21V
- Output Power: 150–500W (including 500W)
- Voltage Range: High voltage (50–1000V DC / 75–1000V AC)

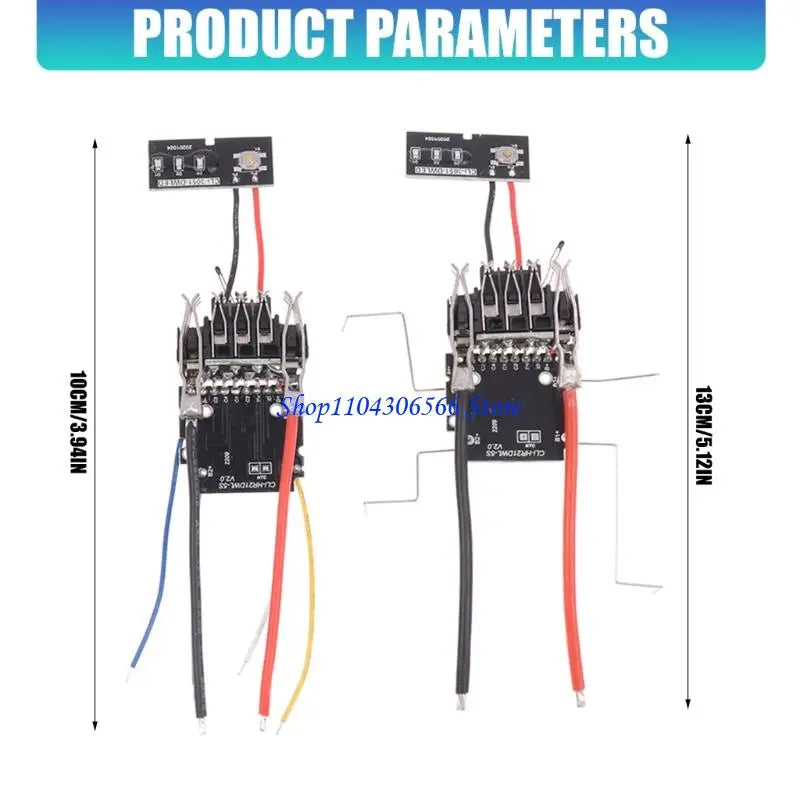

- Length A: Approx. 5.12 in (13 cm)
- Length B: Approx. 3.94 in (10 cm)
- Reusability: Reusable
- Model Number: 02DD13AC810535
Compatible Models
DCD Series: DCD740, DCD740B, DCD740C1, DCD740N, DCD780, DCD780B, DCD78032, DCD787, DCD7880L2, DCD75dn, DCD980L2, DCD980M2
DCF Series: DCF885C2, DCF883L2, DCF883B, DCF880, DCF870M2, DCF883B, DCF885B, DCF888, DCF895C2, DCF895L2, DCF895N2
Package Includes
- 1× 21V Battery Protection Plate
Note: Please allow 1–2 cm variance due to manual measurement. Colors may vary slightly between monitors and the actual product.
You May Also Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What devices is this 21V battery protection circuit board compatible with?
A: This PCB protection board is compatible with a wide range of DeWalt DCD and DCF series power tools, including the DCD740, DCD780, DCD980L2, DCF885C2, DCF895C2, and many more. Please check the full compatibility list above before purchasing.
Q: Does this board protect against overcharge and short circuits?
A: Yes. The board features built-in overcharge, over-discharge, overcurrent, and short circuit protection mechanisms, making it a comprehensive safety solution for your battery-powered devices.
Q: Is a battery included with this circuit board?
A: No, the battery is not included. The package contains only the 21V battery protection plate. However, a charger is included with the kit.
Q: How difficult is installation?
A: The board features a space-saving, tool-free installation design, making it straightforward for electronics enthusiasts and those comfortable with DIY electronics work.
