304 Stainless Steel Full Port Ball Valve 1-1/2" DN40 1000 WOG
304 Stainless Steel Full Port Ball Valve 1-1/2" DN40 1000 WOG
304 Stainless Steel Two-Piece Full Port Female Thread Ball Valve – 1-1/2" DN40 | 1000 WOG
Take precise control of your fluid systems with this heavy-duty 304 Stainless Steel Two-Piece Full Port Ball Valve. Rated at 1000 WOG (Water, Oil, Gas) and built to handle operating temperatures from -20°C to 200°C (-4°F to 392°F), this valve is engineered for demanding residential, commercial, and industrial pipeline applications. Compatible with water, oil, and non-flammable gas — a versatile solution for plumbers, contractors, and DIY enthusiasts alike.
Made in Mainland China.
Key Features
- Premium 304 Stainless Steel Construction: Corrosion-resistant material ensures lasting durability in harsh environments.
- Full Port Design: Maximizes flow with minimal fluid resistance, reducing pressure drop across the valve.
- Simple 90° Handle Operation: Quick and easy open/close action — no tools required for daily operation.
- Bi-Directional Flow: Installation direction does not restrict medium flow direction, adding flexibility to your setup.
- Excellent Sealing Performance: The ball and seat sealing surface is isolated from the medium, preventing erosion and ensuring a leak-free seal.
- Compact & Lightweight: Two-piece body design simplifies maintenance, inspection, and replacement.
- Wide Application: Suitable for water, oil, and non-flammable gas pipelines in plumbing, HVAC, irrigation, and industrial systems.
Specifications
| Material | 304 Stainless Steel |
| Thread Size | 1-1/2" (DN40) |
| Thread Type | Female Thread (BSP/NPT compatible) |
| Operating Pressure | 1000 PSI (WOG) |
| Operating Temperature | -20°C to 200°C (-4°F to 392°F) |
| Valve Length | 9.6 cm / 3.8 in |
| Hole Diameter | 46.6 mm / 1.8 in |
| Package Weight | Approx. 717 g / 25.3 oz |
| Compatible Media | Water, Oil, Non-Flammable Gas |
What's in the Box
- 1 × 304 Stainless Steel Two-Piece Full Port Ball Valve (1-1/2" DN40)
Note: Please allow a slight dimensional variance due to manual measurement.
Related Products You May Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What media is this 304 stainless steel ball valve compatible with?
A: This full port ball valve is designed for use with water, oil, and non-flammable gas pipelines. It is not suitable for flammable gases or highly corrosive chemical media.
Q: What does "1000 WOG" mean on this ball valve?
A: WOG stands for Water, Oil, and Gas — the three media types the valve is rated for. A rating of 1000 WOG means the valve can handle up to 1000 PSI working pressure when used with water, oil, or non-flammable gas at ambient temperature.
Q: Is the installation direction important for this ball valve?
A: No — the full port design allows the medium to flow in either direction, so there is no required installation orientation. This makes it easy to install in a wide variety of pipeline configurations.

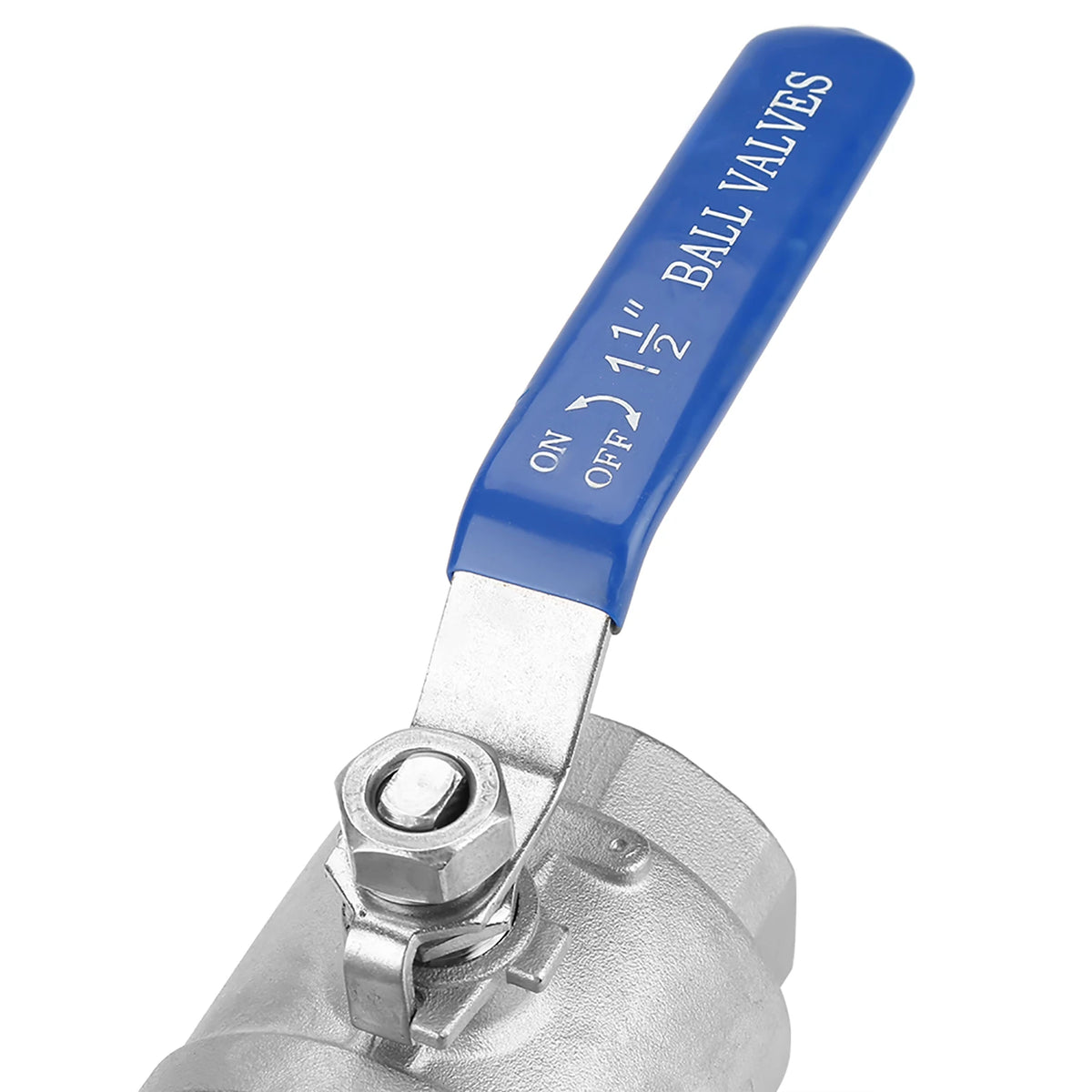

Q: How do I operate this ball valve?
A: Simply turn the handle 90 degrees to open or close the valve. When the handle is parallel to the pipe, the valve is open; when it is perpendicular, the valve is closed. No additional tools are needed for routine operation.
Q: What thread type does this valve use?
A: This valve features a 1-1/2" (DN40) female thread connection. Please verify your pipeline's thread standard (BSP or NPT) before purchase to ensure compatibility.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
