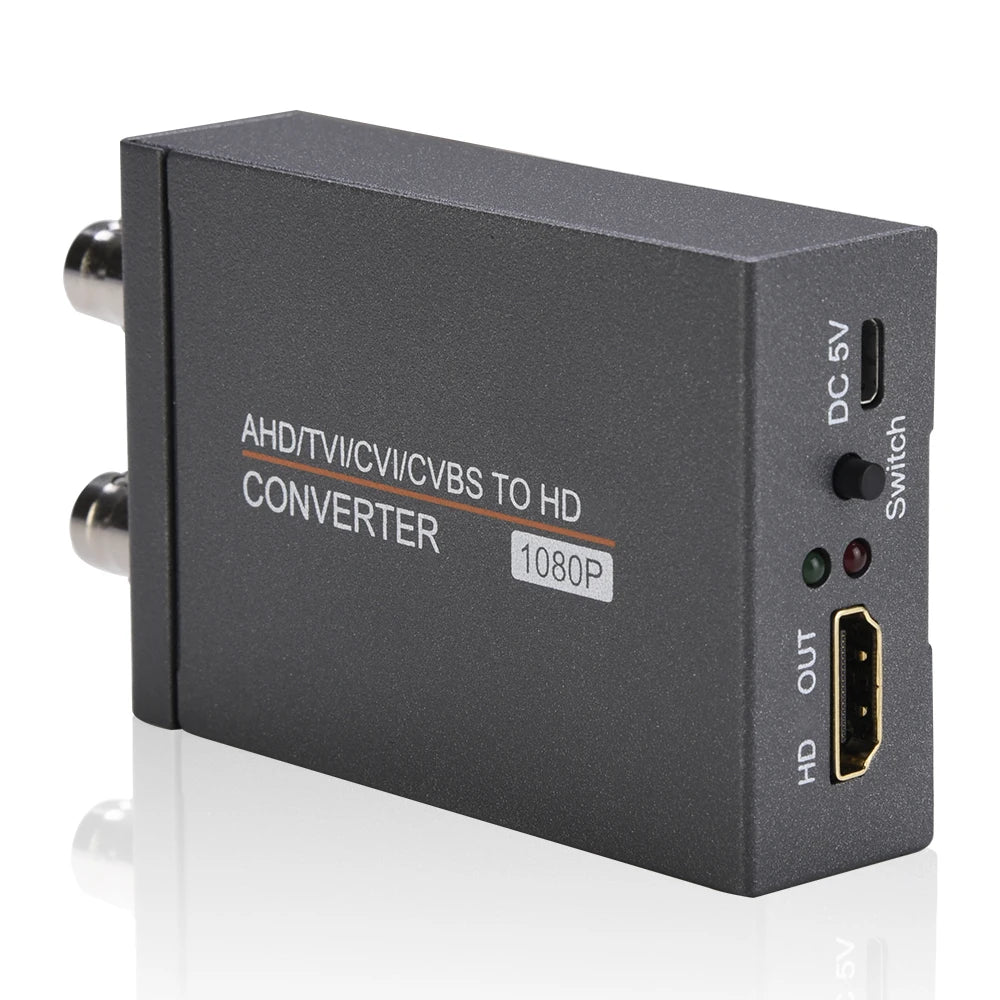

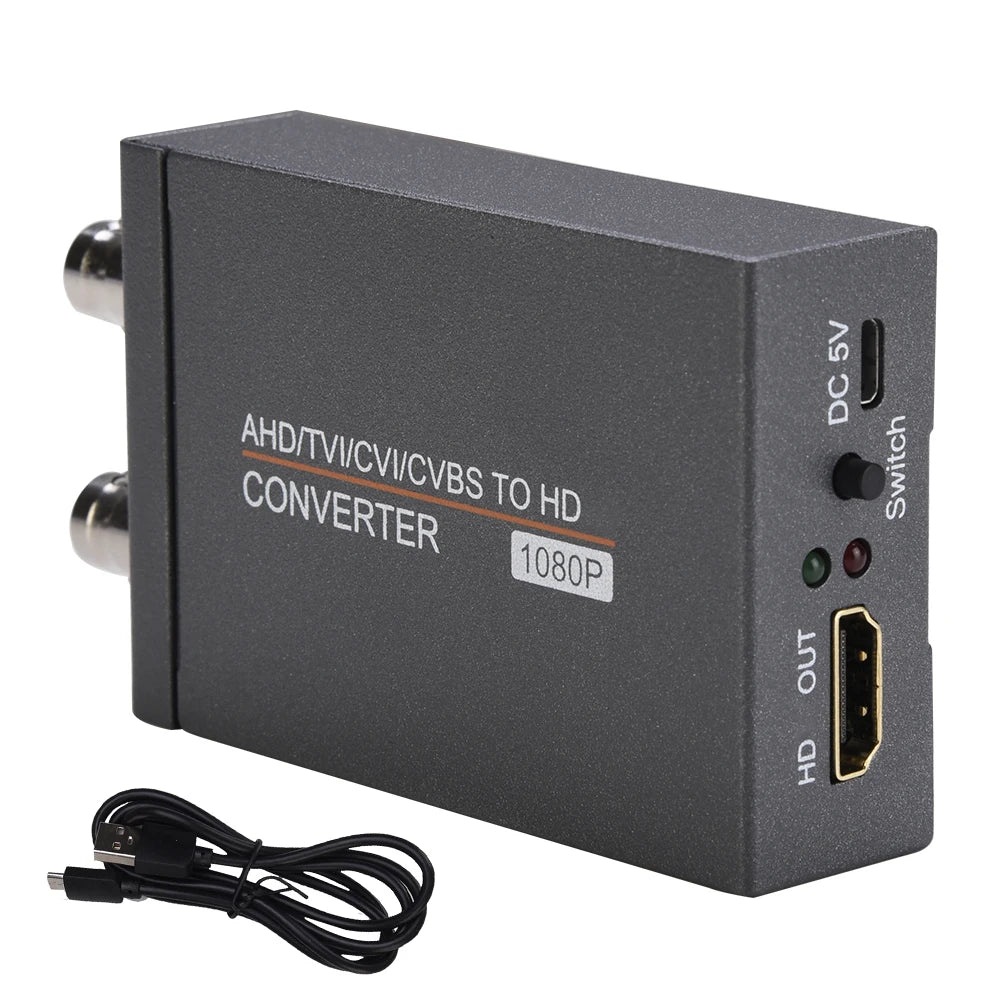

BNC to HDMI Converter – TVI CVI AHD CVBS to HDTV 720p/1080p
BNC to HDMI Converter – TVI CVI AHD CVBS to HDTV 720p/1080p
BNC to HDMI Video Converter – TVI/CVI/AHD/CVBS to HDTV
Upgrade your security or surveillance setup with this professional-grade BNC to HDMI Video Converter. Compatible with TVI, CVI, AHD, and CVBS analog signals, this compact adapter seamlessly converts legacy camera outputs into crisp, clear HDTV-quality video — up to 8MP resolution — displayed on any modern HDMI monitor or TV.
Whether you're managing a home monitoring setup, a retail store, an elevator camera, or a traffic monitoring system, this converter delivers reliable, real-time high-definition output with zero fuss.
Key Features
- Wide Signal Compatibility: Supports TVI, CVI, AHD, and CVBS input signals from BNC-connected cameras and DVR systems.
- Multiple Resolutions Supported: HD 720p, 1080p, 3MP, 4MP, 5MP, and 8MP — perfect for a wide range of camera configurations.
- HDMI Output: Outputs clean, high-definition video via HDMI directly to monitors, HDTVs, and displays.
- Switchable Output Format: Easily toggle between 720P and 1080P HDMI output using the onboard switch. The converter memorizes your chosen format even after power-off.
- OSD Display: On-screen display shows the current TVI/CVI/AHD input format in real time. If no signal is detected or the format is unsupported, a rainbow screen is displayed as an indicator.
- LED Status Indicator: Red LED lights up on power-on for instant confirmation the unit is active.
- Broad Use Cases: Ideal for shopping malls, home surveillance, elevator monitoring, traffic monitoring, and high-definition CCTV installations.
- Compact & Durable Design: Easy to install, designed for continuous operation with ventilation-friendly housing.

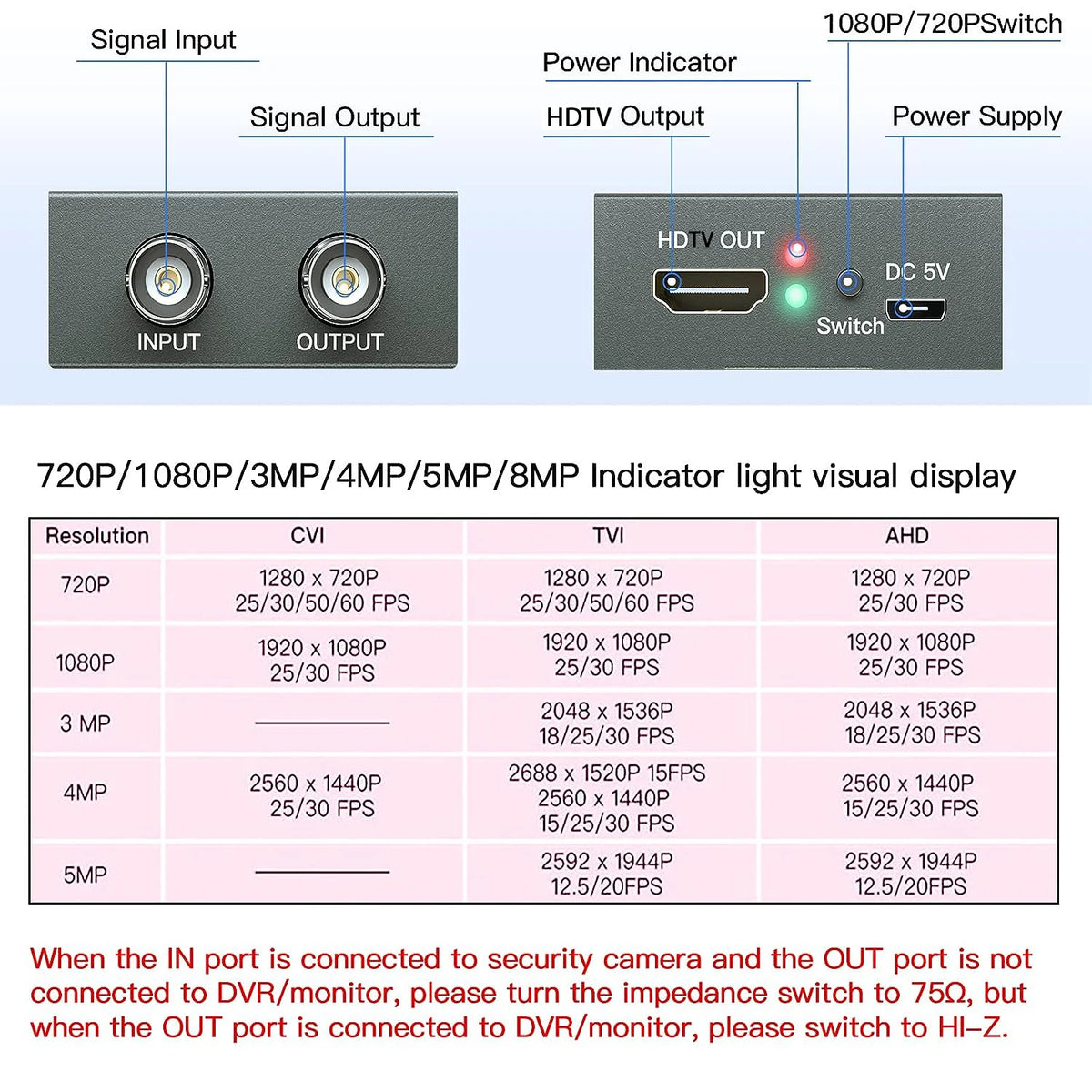

Specifications
- Input: BNC (TVI / CVI / AHD / CVBS)
- Output: HDMI (720P / 1080P)
- Supported Resolutions: 720p, 1080p, 3MP, 4MP, 5MP, 8MP
- Type: HDMI Converter / Video Signal Adapter
- Made in: China
Safety Notes
- Keep the converter away from rain, drips, or any liquid to avoid damage or electrical hazard.
- Ensure adequate ventilation — do not place inside an enclosed cabinet during operation, as heat build-up may cause damage.
- Keep away from electrostatic, strong magnetic, or high-radiation environments.
- Retain this documentation for future reference.

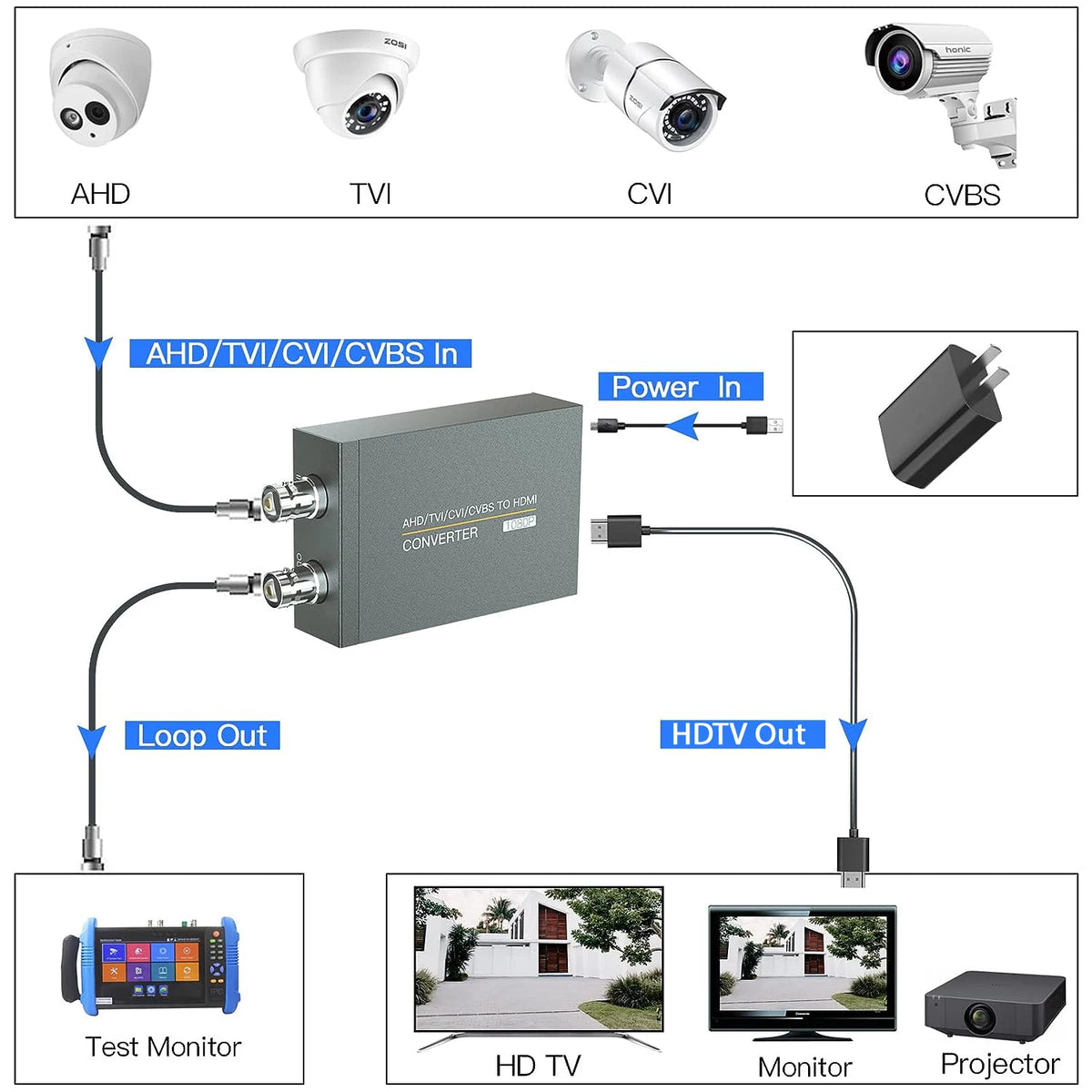

How to Use
- Select the TVI, CVI, AHD, or CVBS source device and set the appropriate output channel/format.
- Power on the converter — the red LED indicator will illuminate.
- If the input signal resolution is compatible with your HDTV display, the HDMI output will be activated automatically.
- Use the onboard switch to toggle between 720P and 1080P HDMI output as needed.
- The OSD will show the current input format on screen. A rainbow display indicates no signal or format mismatch.
Related Products You May Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What input signal formats does this BNC to HDMI converter support?
A: This converter supports TVI, CVI, AHD, and CVBS analog video input signals delivered via a standard BNC connector, covering a wide range of security cameras and DVR systems.
Q: What HDMI output resolutions are available?
A: The converter outputs HDMI video at either 720P or 1080P HD resolution. You can switch between these using the onboard toggle switch, and the setting is retained in memory even after powering off.
Q: Can this converter be used with high-megapixel cameras?
A: Yes — this converter supports input resolutions up to 8MP (including 3MP, 4MP, and 5MP), making it compatible with a broad range of modern analog HD surveillance cameras.
Q: What does the rainbow display on screen mean?
A: The rainbow screen is an OSD indicator that appears when there is no input signal detected, or when the input signal format is not compatible with this converter. Check your cable connections and ensure the source device is outputting a supported format.
Q: Is this converter suitable for commercial surveillance installations?
A: Absolutely. This converter is widely used in shopping malls, retail stores, elevator monitoring systems, traffic surveillance, and home security setups — anywhere you need to display analog camera feeds on a modern HDMI monitor or HDTV.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
