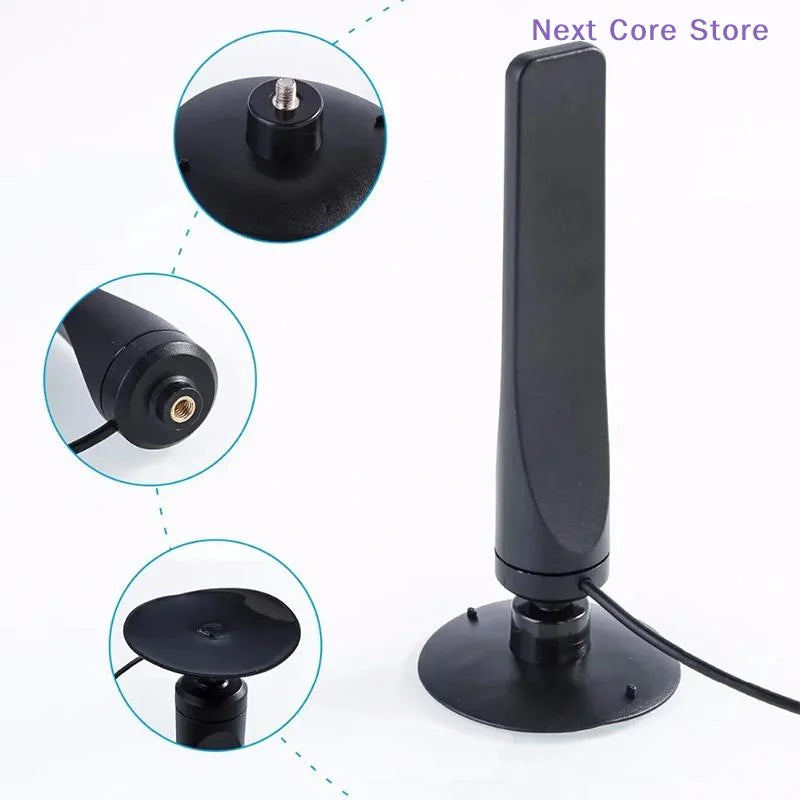

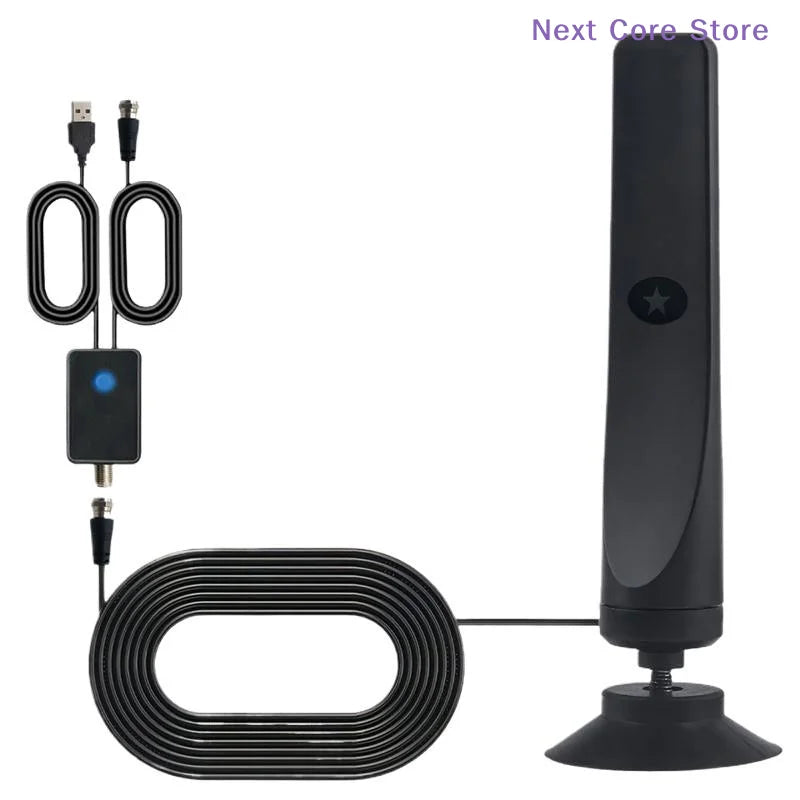

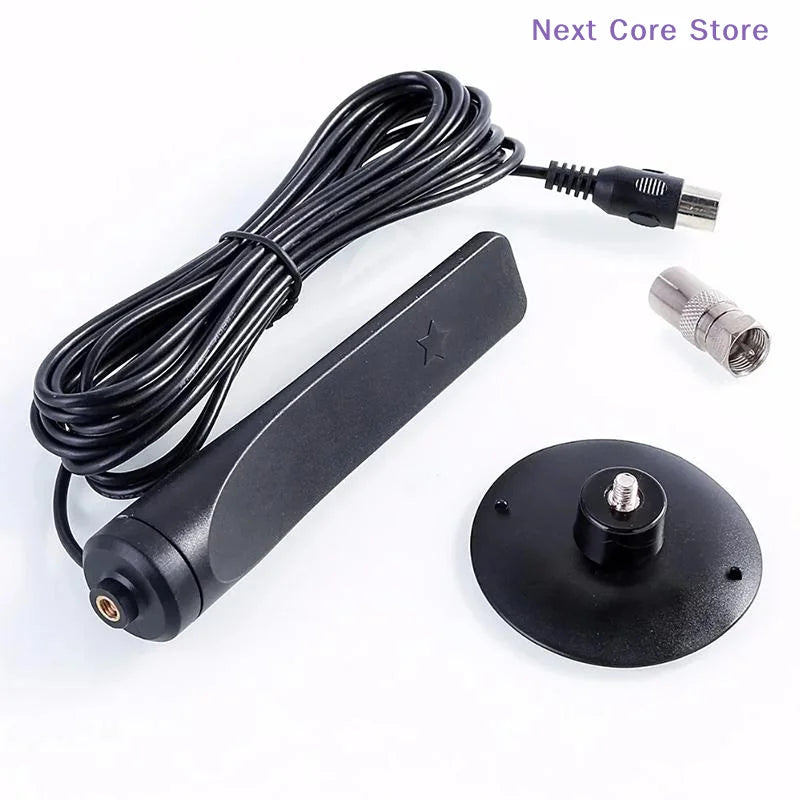

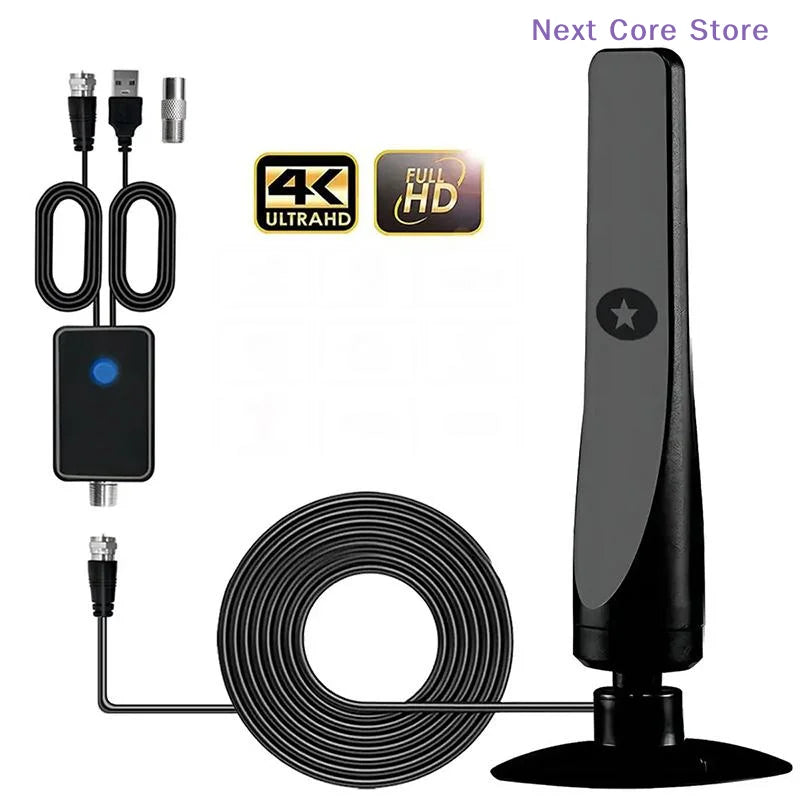

Indoor & Outdoor HDTV Antenna – 1080p HD, 50-Mile Range
Pick Up Free-to-Air HD Channels – Indoors or Outdoors
Cut the cable bill and start receiving crystal-clear broadcast television with this versatile digital HDTV antenna. Designed for both indoor and outdoor use, it captures over-the-air (OTA) free-to-air channels in stunning 1080p Full HD — no subscription required. With a wide 50-mile reception range and multi-directional capability, it pulls in more local channels than a traditional directional antenna. Made in Mainland China.
Key Features
- 1080p HD Reception: Enjoy sharp, clear picture quality on all compatible free-to-air broadcast channels.
- 50-Mile Range: Powerful enough to capture signals from broadcast towers up to 50 miles away.
- Multi-Directional: No need to constantly adjust — picks up signals from multiple directions simultaneously.
- 25 dBi Gain: High-gain design ensures strong, stable signal reception even in moderately rural areas.
- Flexible Placement: Works indoors near a high window or balcony, and can be roof-mounted outdoors for best performance.
- 3.0m Coaxial Cable: Generous cable length gives you flexible placement options to find the strongest signal spot.

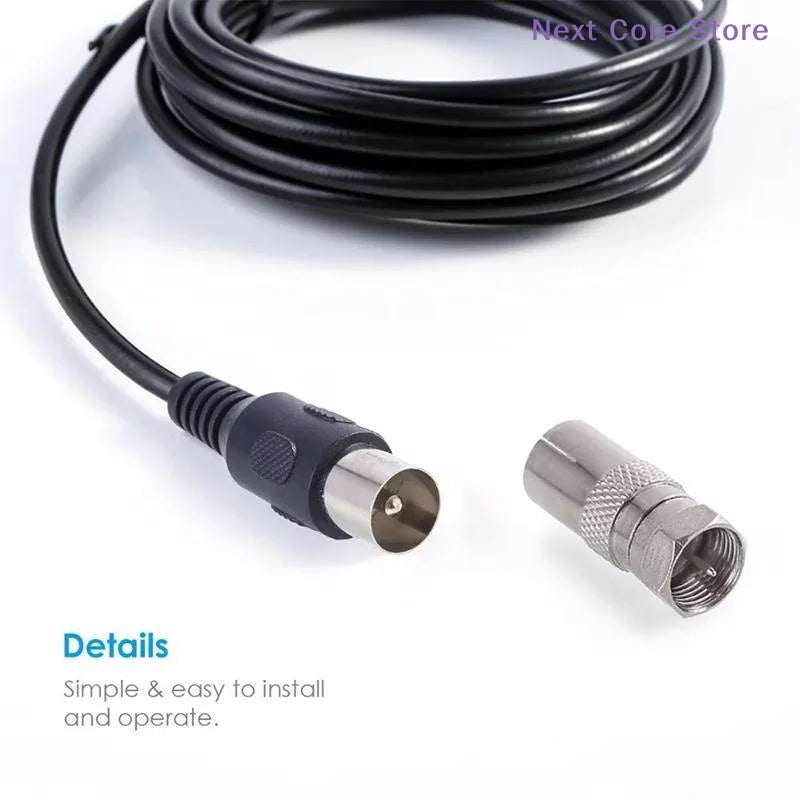

- Universal Connector: Comes with a TV coax head and F-adapter for easy compatibility with most televisions.
- Wide Working Frequency: Supports 174–240 MHz and 470–862 MHz bands for comprehensive channel coverage.
- Extreme Temperature Tolerance: Operates reliably in temperatures from -45°C to 85°C, suitable for all seasons.
- Compact & Discreet: Slim 60 × 150 mm profile in black with a suction cup mount — easy to position and secure.
Technical Specifications
| Reception Range | Up to 50 miles |
| Supported Resolution | 1080p HD |
| Gain | 25 dBi |
| Impedance | 75 Ω |
| VSWR | ≤ 1.5 (max 1) |
| Working Frequency | 174–240 MHz / 470–862 MHz |
| Coaxial Cable Length | 3.0 m (booster add-on: 0.65 cm) |
| Connector Type | TV head with F-adapter |
| Product Size | 60 × 150 mm |
| Color | Black |
| Mount | Suction cup (silicone) |
| Operating / Storage Temp | -45°C to 85°C |
| Origin | Made in Mainland China |
Setup Guide

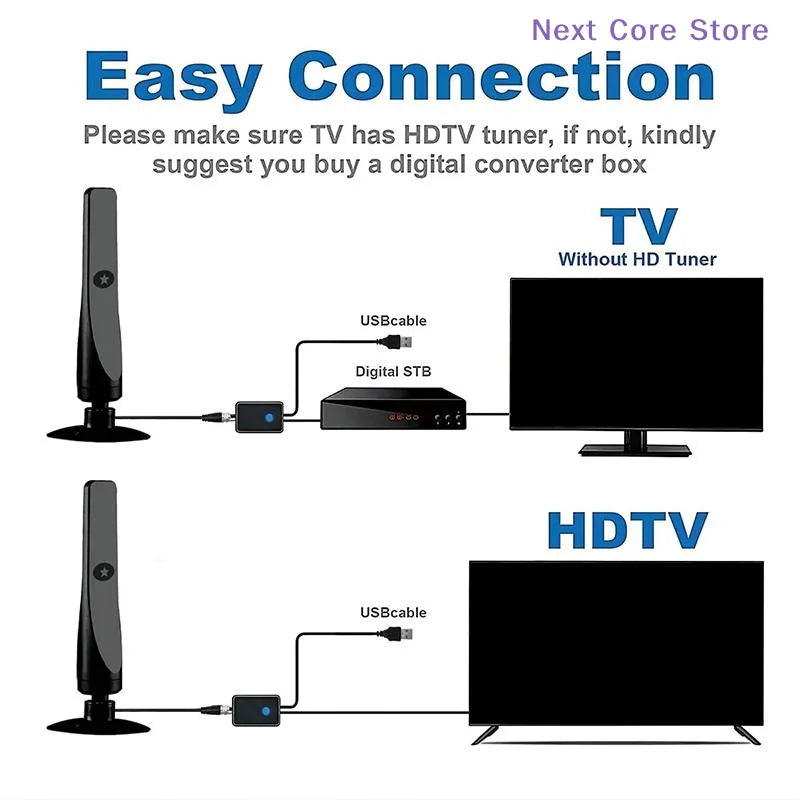

- Connect: Plug the antenna's coaxial cable into your TV's antenna input port.
- Position: For best results, place the antenna high — on an upper-floor balcony, near a window, or on the roof outdoors. Avoid placing it next to the TV or on the ground floor.
- Select Source: Using your TV remote, press "Source" or "Signal Source" and select "Digital TV", "DTMB", "Ground Digital", or the equivalent digital signal input for your region. (Smart TV users: select "TV" and confirm.)
- Scan Channels: Press "Menu" → "Channel" → "Auto Search" to automatically find all available free-to-air channels in your area.
You May Also Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Can this HDTV antenna be used both indoors and outdoors?
A: Yes! This digital antenna is designed for flexible indoor and outdoor use. For indoor setups, place it near a high window or on an upper-floor balcony. For outdoor use, you can mount it on a rooftop for maximum range and reception quality.
Q: What channels can I receive with this digital TV antenna?
A: This antenna receives all free-to-air (OTA) broadcast channels available in your area — including local news, sports, and entertainment channels — in 1080p HD quality, with no monthly subscription needed.
Q: How far can this antenna receive signals?
A: This antenna has a reception range of up to 50 miles, making it suitable for both urban and rural locations. For the best results in rural or distant areas, roof mounting is recommended.
Q: Is this antenna compatible with my smart TV?
A: Yes. It works with most modern smart TVs and standard televisions that have a coaxial antenna input. It comes with a TV head coax connector and an F-adapter for broad compatibility. Simply connect, select the digital TV input, and run an auto channel scan.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
